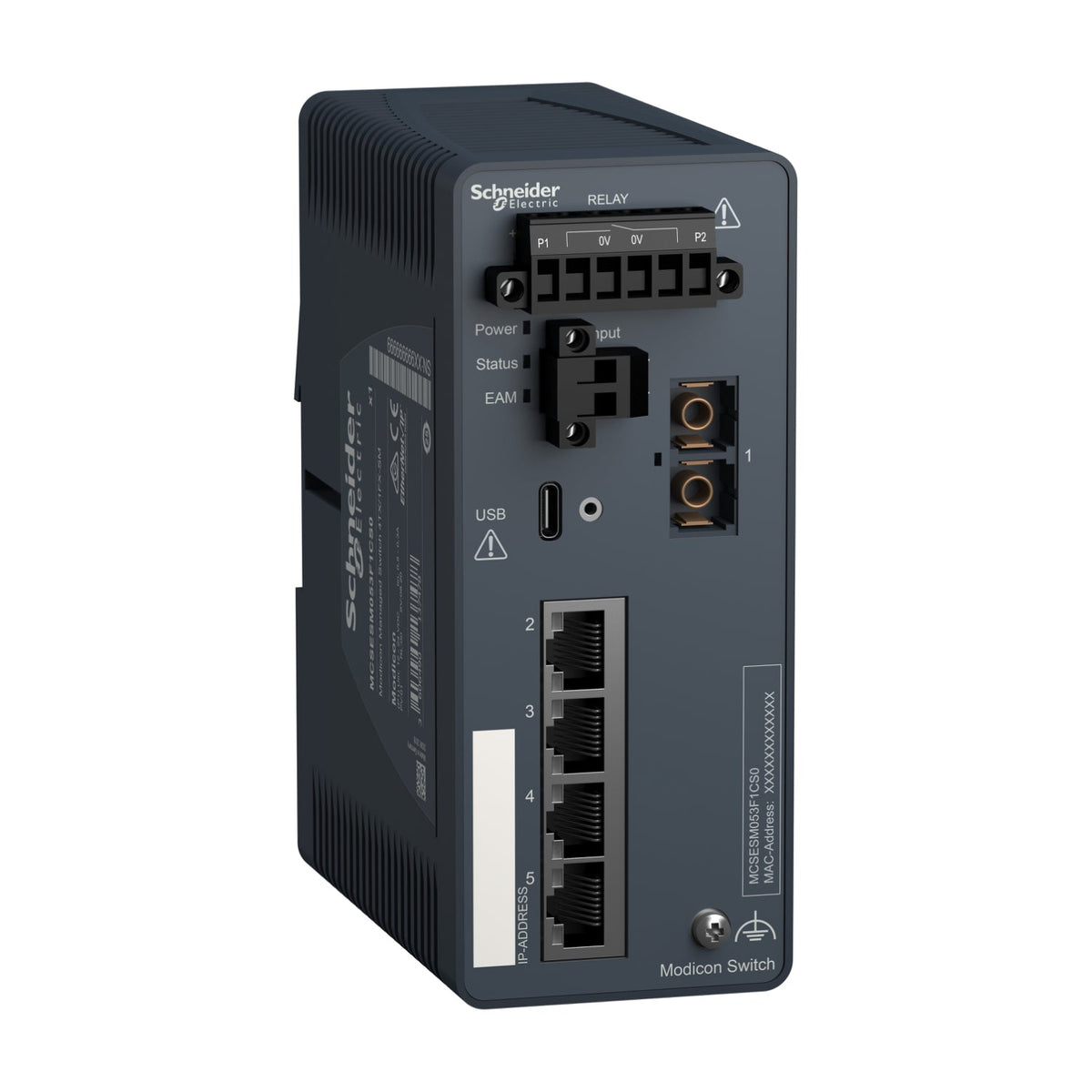

Schneider Electric MCSESM053F1CS0 Modicon 4-Port 1 Fiber SC SM Managed Switch Industrial Ethernet Switch

The Schneider Electric MCSESM053F1CS0 is a Modicon Networking managed Ethernet switch pairing 4 copper 10/100BASE-TX ports with 1 single-mode 100BASE-FX fiber port for fiber uplinks up to 32.5 km. It runs Ethernet TCP/IP with SNMP, HTTPS, Modbus TCP and OPC UA management, supports RSTP, MRP and HiPER Ring redundancy, and draws 6 W from a 12...24 V DC supply on a 35 mm DIN rail.

Technical Specifications

Certifications & Standards

• CE
• UL
• RCM
• DNV
• ATEX
• EAC
• UKCA
• CSA C22.2 No. 213
• UKEX
• FCC Part 15 Class A
• CCC Ex
• UL 61010-2-201
• EN/IEC 61131-2
• IEC 61850-3
• IEC 62443-4-2
• EN 50121-4

Selection Notes

The MCSESM053F1CS0 pairs 4 copper ports with a single single-mode fiber port reaching up to 32.5 km (9/125 µm) — pick it over the multimode CU0 variant when the fiber run exceeds the typical 4–5 km multimode range, such as a link between distant panels. Use it as a long-haul fiber uplink from a machine-level Ethernet TCP/IP segment into a plant network built on other Modicon Networking switches, with RSTP or HiPER Ring handling ring redundancy at the connection point.
