- Part number
- MCSEAAF1LFU00
Description
About the MCSEAAF1LFU00
About the MCSEAAF1LFU00

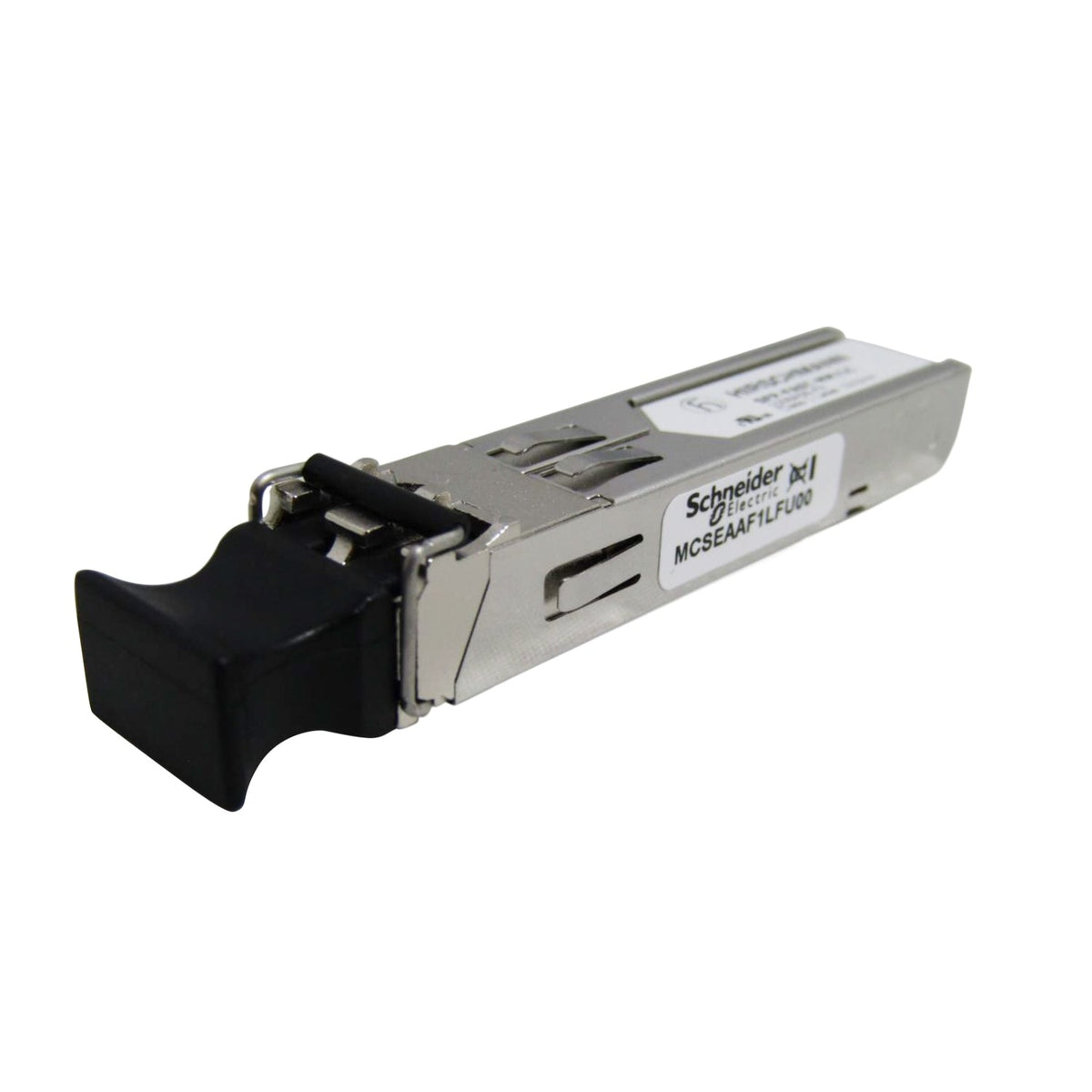

The Schneider Electric MCSEAAF1LFU00 is a multimode fiber optic SFP module for the Modicon Networking managed switch range, converting an SFP slot into a 100BASE-FX LC fiber port over 50/125 µm or 62.5/125 µm multimode fiber. It fits MCSESM and TCSESM switches, ships 8 per package, operates over a 0...60°C ambient range, and weighs 0.04 kg, giving a switch's SFP slot a shorter-reach fiber uplink option instead of copper.
Selection Notes
The MCSEAAF1LFU00 is the multimode fiber SFP option — choose it over the single-mode SFP for shorter in-building fiber runs where multimode cabling is already installed or lower connector cost matters more than maximum reach on an MCSESM or TCSESM switch SFP slot.
Specification
Full specification
Main 7
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | SFP module |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Fiber optic adaptor |
| Accessory / separate part designation | Fiber optic adaptor |
| Accessory / separate part destination | LC connector port |
| Mode of transmission | Multi mode 50/125 µm, Multi mode 62.5/125 µm |
Complementary 6
| Product Compatibility | MCSESM switch, TCSESM switch |
|---|---|
| Depth | 2.0 in (50 mm) |
| Port Ethernet | 10/100BASE-LX |
| Width | 0.8 in (20 mm) |
| Height | 0.7 in (18 mm) |
| Net Weight | 0.09 lb(US) (0.04 kg) |
Environment 1
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|
Show all 27 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSEAAF1LFU00 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481463227 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | TW |
|---|---|
| Shipping weight | 0.04 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for MCSEAAF1LFU00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the MCSEAAF1LFU00
What is the HS code of MCSEAAF1LFU00 for customs?
The tariff (HS) code on file for MCSEAAF1LFU00 is 851762.
What is the EAN of MCSEAAF1LFU00?
The EAN (GTIN) of MCSEAAF1LFU00 is 3606481463227.
Where does MCSEAAF1LFU00 ship from, and how fast?
MCSEAAF1LFU00 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
