- Part number
- MCSEAAF1LFS00
Description
About the MCSEAAF1LFS00
About the MCSEAAF1LFS00

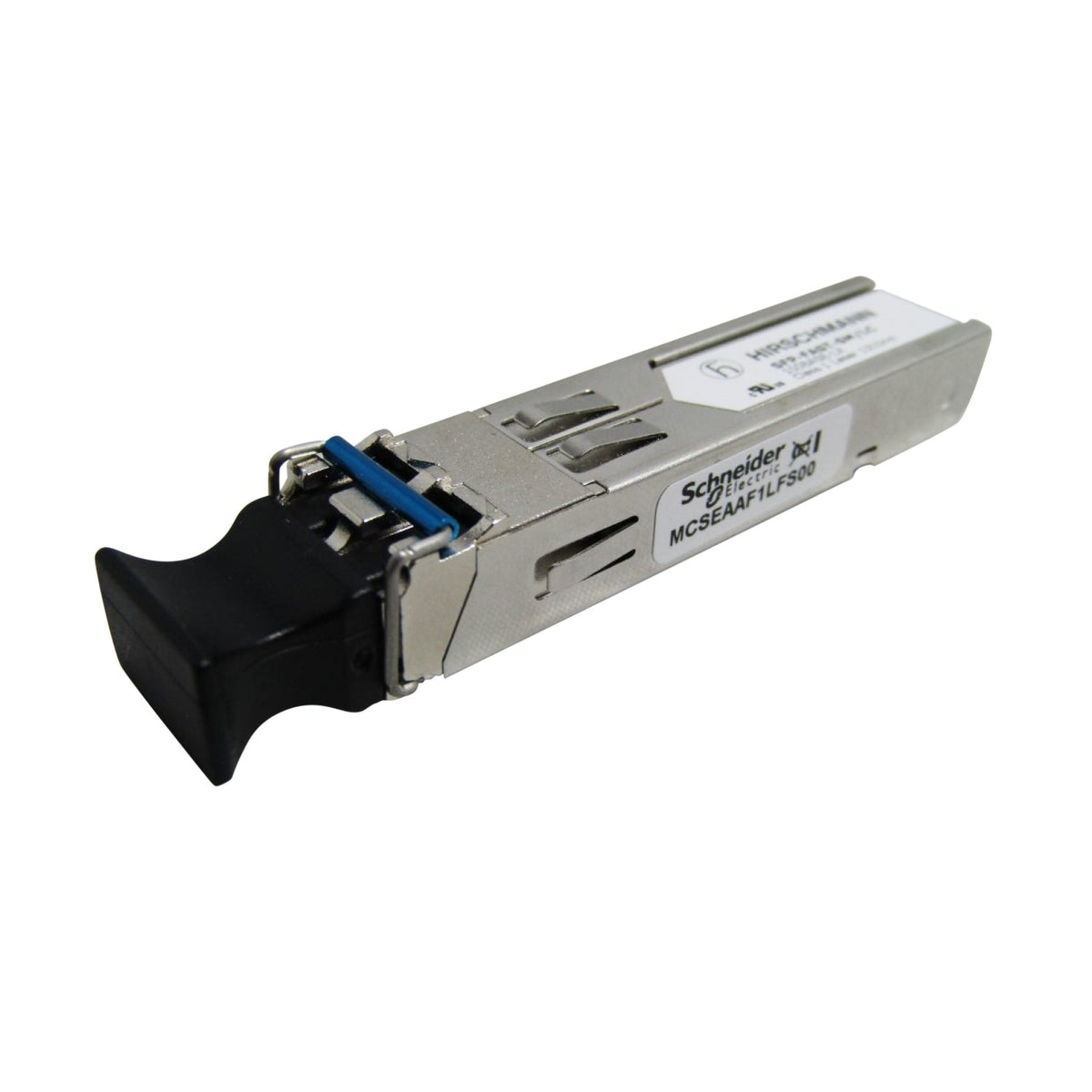

The Schneider Electric MCSEAAF1LFS00 is a single-mode fiber optic SFP module for the Modicon Networking managed switch range, converting an SFP slot into a 100BASE-FX LC fiber port over 9/125 µm single-mode fiber. It fits MCSESM and TCSESM switches, ships 8 per package, operates over a 0...60°C ambient range, and weighs 0.041 kg, letting a switch's SFP slot carry a long-reach fiber uplink instead of copper.
Selection Notes
The MCSEAAF1LFS00 is the single-mode fiber SFP option — choose it over the multimode SFP when the fiber run between an MCSESM or TCSESM switch and a remote device exceeds multimode distance limits, since single-mode fiber supports a longer reach at the same 100BASE-FX link speed.
Specification
Full specification
Main 7
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | SFP module |
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Fiber optic adaptor |
| Accessory / separate part designation | Fiber optic adaptor |
| Accessory / separate part destination | LC connector port |
| Mode of transmission | Single mode 9/125 µm |
Complementary 6
| Product Compatibility | MCSESM switch, TCSESM switch |
|---|---|
| Depth | 2.0 in (50 mm) |
| Port Ethernet | 10/100BASE-SX |
| Width | 0.8 in (20 mm) |
| Height | 0.7 in (18 mm) |
| Net Weight | 0.090 lb(US) (0.041 kg) |
Environment 1
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|
Show all 27 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSEAAF1LFS00 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481463210 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | TW |
|---|---|
| Shipping weight | 0.041 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for MCSEAAF1LFS00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the MCSEAAF1LFS00
What is the HS code of MCSEAAF1LFS00 for customs?
The tariff (HS) code on file for MCSEAAF1LFS00 is 851762.
What is the EAN of MCSEAAF1LFS00?
The EAN (GTIN) of MCSEAAF1LFS00 is 3606481463210.
Where does MCSEAAF1LFS00 ship from, and how fast?
MCSEAAF1LFS00 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
