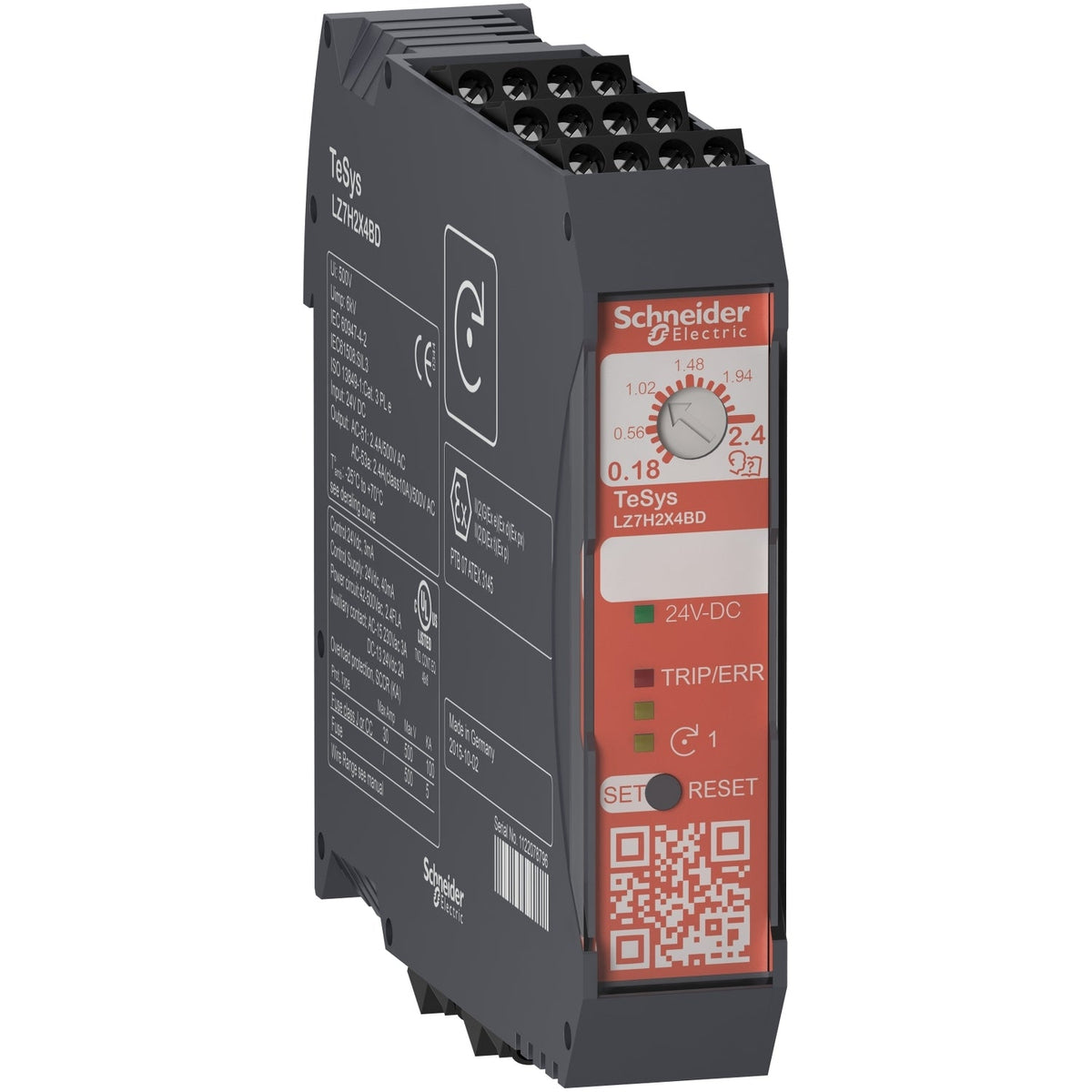

Schneider Electric LZ7H6X5BD TeSys Hybrid Safe Torque Off 3P 1.5-9 A 3 kW 24 V DC Motor Starter

TeSys Hybrid ultra-compact DOL starter with Safe Torque Off, SIL3/PLe, 3P, 3 kW, 24 V DC.

Rated current
9 A
Rated operational voltage
24 V DC
Motor power
3 at 400 kW
EAN
3606485421179
Description

About the LZ7H

The Schneider Electric LZ7H6X5BD is a TeSys Hybrid ultra-compact direct-on-line safety starter, 3-pole, 6.5 A/500 V AC-53, for 3-phase motors up to 3 kW at 400 V. It adds an integrated Safe Torque Off function rated SIL3 (IEC 61508-1) and PLe (ISO 13849-1), with adjustable 1.5-9 A Class 10A thermal overload protection and a 24 V DC control supply.

Certifications & Standards

  • UL 60947-4-1
  • IEC 60947-4-2
  • ATEX
  • CE
  • cULus

Selection Notes

Specify the LZ7H6X5BD instead of the standard LZ1H6X5BD only where the application needs a certified Safe Torque Off stop function in the safety chain; its SIL3/PLe rating removes the need for a separate upstream safety contactor on this motor branch, while every other electrical rating and dimension matches the non-safety LZ1H6X5BD.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 15

Range TeSys
Product name TeSys Hybrid
Device short name LZ7H
Product or Component Type Ultra-compact starter
Motor starter type Direct on line
Poles description 3P
[Ue] rated operational voltage 500 V AC
[Ie] rated operational current 6.5 A 500 V AC-53A, 9 A 500 V AC-51, 5 A 500 V AC-53A mounting side by side, 7 A 500 V AC-51 mounting side by side
Thermal protection adjustment range 1.5…9 A
Motor power kW 1.5 kW 220 V AC 0.65, 1.5 kW 230 V AC 0.65, 2.2 kW 380 V AC 0.65, 3 kW 400 V AC 0.65, 3 kW 415 V AC 0.65, 3 kW 440 V AC 0.65, 3 kW 500 V AC 0.65
Maximum Horse Power Rating 1 hp 200 V AC, 1.5 hp 230 V AC, 3 hp 460 V AC
[Uc] control circuit voltage 24 V DC
Safety level SIL 3 IEC 61508-1 stop function, PL = e ISO 13849-1 stop function, SIL 2 IEC 61508-1 motor protection
Safety reliability data MTTFd = 517 years stop function, SFF = 99 % stop function, SFF = 99 % motor protection, MTTFd = 447 years motor protection, PFHd = 2.40E-9 1/h stop function
Thermal overload class Class 10A IEC 60947-4-2

Complementary 19

Auxiliary contact composition 1 C/O fault signalling
Control circuit voltage limits 19.2...30 V DC
Current consumption <= 40 mA 24 V DC
Reset Manual, Electrical reset
Electrical durability 30 Mcycles
Maximum operating rate 120 cyc/mn AC-51 50 %, 6 cyc/mn AC-53A 50 %
Mounting Mode By clips
Mounting Support DIN rail
Connections - terminals screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) rigid, screw clamp terminals 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible - with cable end, screw clamp terminals 1 0.0003…0.004 in² (0.2…2.5 mm²) flexible - without cable end
Tightening torque 4.4…5.3 lbf.in (0.5…0.6 N.m) flat Ø 2.5 mm screwdriver 0.1 in (3 mm)
Certifications ATEX as associated device for motor protection in zones 1 and 21, CE, CULus
Standards UL 60947-4-1, IEC 60947-4-2
[Ui] rated insulation voltage 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV
Pollution degree 2
Width 0.9 in (22.5 mm)
Height 3.9 in (99 mm)
Depth 4.5 in (114.5 mm)
Net Weight 7.5 oz (212 g)

Environment 4

IP degree of protection IP20
Protective treatment TC
Ambient air temperature for operation -13…86 °F (-25…30 °C) without derating, 86…158 °F (30…70 °C) with derating
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LZ7H6X5BD
Type designation LZ7H
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485421179

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.212 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
