Schneider Electric LZ1H6X5BD TeSys Hybrid Ultra-Compact 3P 1.5-9 A 3 kW 24 V DC Motor Starter

% $-243.04

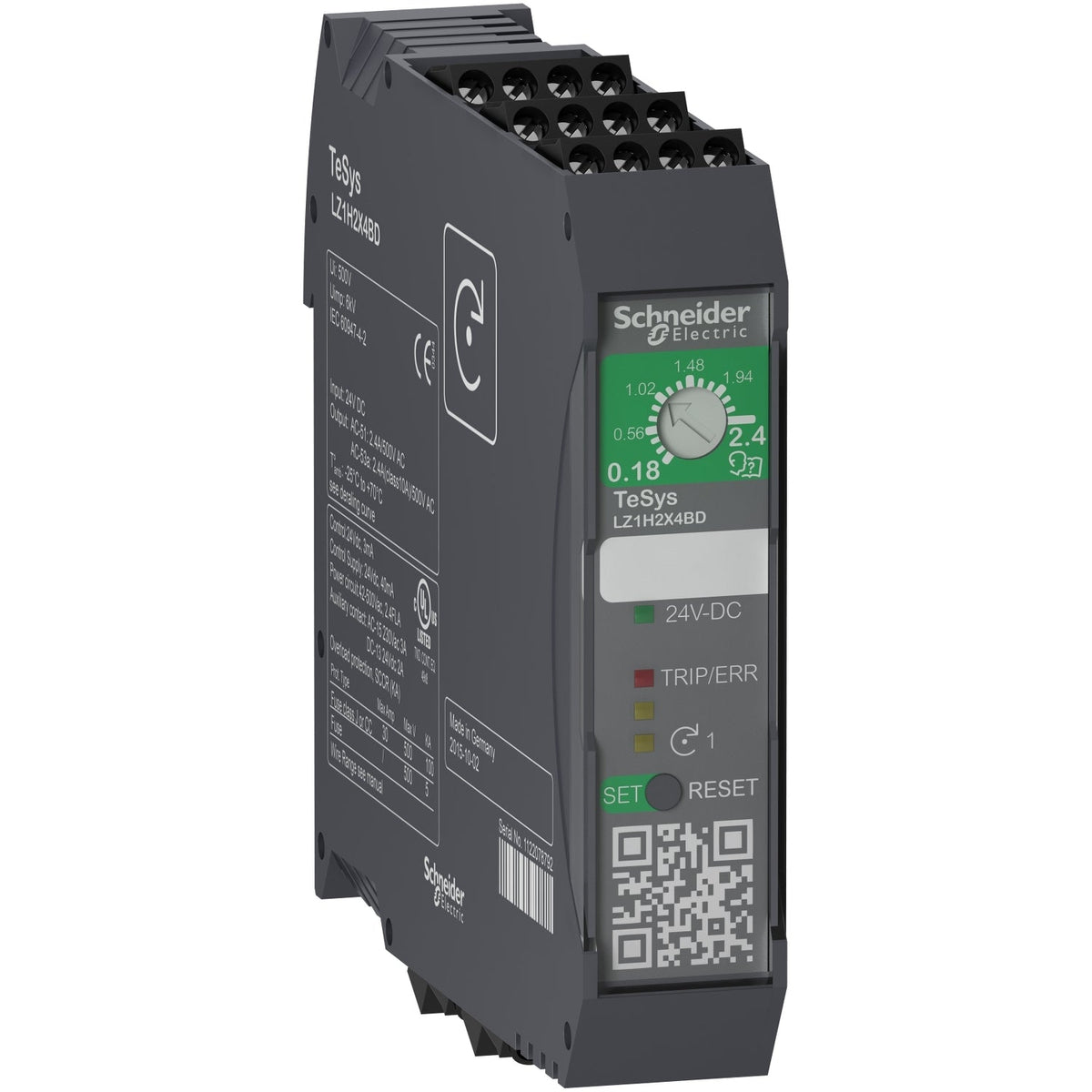

Schneider Electric LZ1H6X5BD TeSys Hybrid ultra-compact direct-on-line starter 3P
Schneider Electric LZ1H6X5BD TeSys Hybrid ultra-compact direct-on-line starter 3P

Schneider Electric LZ1H6X5BD TeSys Hybrid Ultra-Compact 3P 1.5-9 A 3 kW 24 V DC Motor Starter

Brand: Schneider Electric
Reference No: LZ1H6X5BD
Catalog No: LZ1H6X5BD
Tariff Code (HS): 853710
Rated Current: 1.5-9 A
Power: 3 kW at 400 V AC
Rated Voltage: 24 V DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$243.04

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LZ1H6X5BD is a TeSys Hybrid ultra-compact direct-on-line starter, 3-pole, 6.5 A/500 V AC-53, for 3-phase motors up to 3 kW at 400 V. At 22.5 mm wide it fits in a single module slot and offers up to 30 million AC-53 cycles, with adjustable 1.5-9 A Class 10A thermal overload protection and a 24 V DC control supply.

Technical Specifications

Reference LZ1H6X5BD
Brand Schneider Electric
Range TeSys Hybrid
Motor starter type Direct on line
Poles description 3P
Ue rated operational voltage 500 V AC
Ie rated operational current 6.5 A (500 V, AC-53A); 9 A (500 V, AC-51)
Thermal protection adjustment range 1.5-9 A
Motor power 3 kW at 400 V AC, 3 kW at 415 V AC, 3 kW at 440 V AC
Uc control circuit voltage 24 V DC
Thermal overload class Class 10A (IEC 60947-4-2)
Auxiliary contact composition 1 C/O (fault signalling)
Control circuit voltage limits 19.2-30 V DC
Current consumption <= 40 mA at 24 V DC
Maximum operating rate 120 cyc/mn (AC-51, 50%); 6 cyc/mn (AC-53A, 50%)
Mounting By clips, DIN rail
Ui rated insulation voltage 500 V AC 50/60 Hz
Uimp rated impulse withstand voltage 6 kV
Pollution degree 2
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
Net weight 212 g
IP degree of protection IP20
Ambient air temperature for operation -25...30 C without derating, 30...70 C with derating
Ambient air temperature for storage -40...80 C
Reset Manual, automatic, or electrical
Country of origin DE

Certifications & Standards

  • IEC 60947-4-2
  • UL 60947-4-1
  • cULus
  • CE

Selection Notes

The LZ1H6X5BD suits panels where space is the binding constraint, since its 22.5 mm width and DIN-rail mounting pack a full direct-on-line starter with integrated thermal protection, phase-loss detection, and stall/jam protection into a single-module footprint; choose the Safe Torque Off variant, LZ7H6X5BD, instead when the application needs a SIL3/PLe safety stop function.

Technical Details

Short Description
TeSys Hybrid ultra-compact DOL starter, 3P, 1.5-9 A, 3 kW at 400 V, 24 V DC coil.
Rated Current (Ampere)
1.5-9 A
Rated Voltage (VAC)
24 V DC
Mounting Type
DIN rail (by clips)
Protection Type
IP20
Catalog No
LZ1H6X5BD
Power (kW)
3 kW at 400 V AC
Delivery Date (Days)
30 days
Model Number
LZ1H
Tariff Code
853710
