Part number
LXD3Q7
Model no
LXD3
$38.53 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

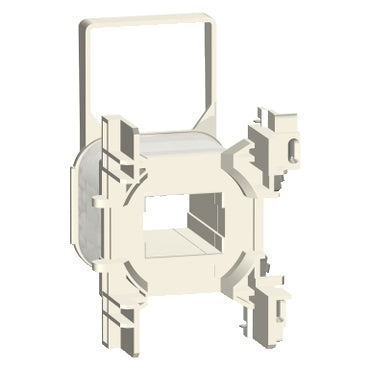

Schneider Electric LXD3Q7 TeSys Deca Contactor Coil 380 V AC 50/60 Hz for LC1D40A-D65A Contactor Coil

TeSys Deca replacement contactor coil, 380 V AC 50/60 Hz, for LC1D40A-D65A contactors.

Rated operational voltage
380 V AC
Poles
3P
EAN
3389119410458
Description

About the LXD3

The Schneider Electric LXD3Q7 is a TeSys Deca replacement contactor coil rated 380 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D40A to D65A and LC1DT60A/DT80A. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.

Selection Notes

The LXD3Q7 is the 380 V AC coil for the LC1D40A-D65A frame and its DT60A/DT80A reversing variants, used where the control transformer secondary or local supply is 380 V. Pick the B7, E7 or F7 coil instead for 24 V, 48 V or 110 V supplies on the same contactor frame. No built-in suppressor module is fitted.

Specification

Full specification

42 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product or Component Type Contactor coil
Device short name LXD3
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 380 V AC 50/60 Hz
Average resistance 512 Ohm 68 °F (20 °C)
Inductance of closed circuit 29.9 H
Product Compatibility LC1DT60A, LC1DT80A, LC1D40A...D65A
Mechanical durability 6 Mcycles
Maximum operating rate 3600 cyc/h 140 °F (60 °C)

Complementary 5

Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C))
Inrush power in VA 160 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Hold-in power consumption in VA 15 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Heat dissipation 4…5 W 50/60 Hz

Environment 2

Ambient Air Temperature for Operation 23…140 °F (-5…60 °C)
Net Weight 0.15 lb(US) (0.07 kg)
Show all 42 specifications ↓ Show less ↑25 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LXD3Q7
Type designation LXD3
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119410458

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.2 in (5.6 cm)
Package 1 Width 2.2 in (5.6 cm)
Package 1 Length 3.8 in (9.7 cm)
Package weight(Lbs) 4.3 oz (122.0 g)
Unit Type of Package 2 S02
Number of Units in Package 2 30
Package 2 Height 5.9 in (15.0 cm)
Package 2 Width 11.8 in (30.0 cm)
Package 2 Length 15.7 in (40.0 cm)
Package 2 Weight 8.794 lb(US) (3.989 kg)
Shipping weight 0.07 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LXD3Q7

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LXD3

Which supply voltage is LXD3 rated for?

The rated operational voltage of LXD3 is 380 V AC.

What is the HS code of LXD3 for customs?

The tariff (HS) code on file for LXD3 is 85365080.

What is the EAN of LXD3?

The EAN (GTIN) of LXD3 is 3389119410458.

Where does LXD3 ship from, and how fast?

LXD3 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
