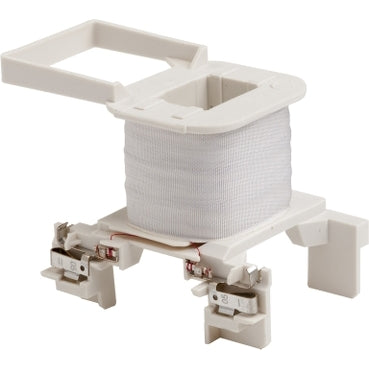

The Schneider Electric LXD3M7 is a TeSys replacement contactor coil rated 220 V AC 50/60 Hz, compatible with the LC1D40A through LC1D65A frames as well as LC1DT60A and LC1DT80A. It has no built-in suppressor module, draws 160 VA inrush and 15 VA holding power, and is rated for up to 3600 operating cycles per hour at 60 °C.
The LXD3M7 fits the LC1D40A-D65A frame plus the LC1DT60A/LC1DT80A variants and has no built-in transient suppressor, so its 160 VA inrush draw is lower than the larger LX1D6 coil but still needs external surge suppression if the control circuit requires it. Use it as a like-for-like replacement coil when a contactor in this frame range needs re-coiling to 220 V AC rather than swapping the whole contactor.
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LXD3 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Average resistance | 182 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 10 H |
| Product Compatibility | LC1D40A...D65A, LC1DT80A, LC1DT60A |
| Mechanical durability | 6 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C)) |
| Inrush power in VA | 160 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 15 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Heat dissipation | 4…5 W 50/60 Hz |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
|---|---|
| Net Weight | 0.15 lb(US) (0.07 kg) |
| Part number | LXD3M7 |
|---|---|
| Type designation | LXD3 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119410410 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.07 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
