Schneider Electric LXD3E7 TeSys Deca Contactor Coil 48 V AC 50/60 Hz for LC1D40A-D65A Contactor Coil

% $-37.64

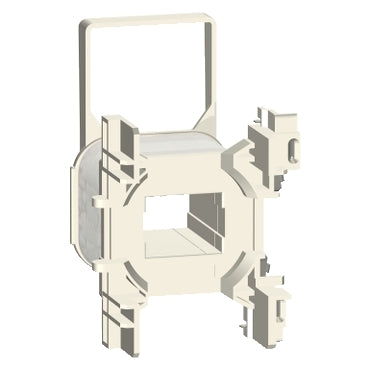

Schneider Electric LXD3E7 TeSys Deca contactor coil 48V AC for LC1D40A-D65A
Schneider Electric LXD3E7 TeSys Deca contactor coil 48V AC for LC1D40A-D65A

Schneider Electric LXD3E7 TeSys Deca Contactor Coil 48 V AC 50/60 Hz for LC1D40A-D65A Contactor Coil

Brand: Schneider Electric
Reference No: LXD3E7
Tariff Code (HS): 85365080
Rated Voltage: 48 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$37.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LXD3E7 is a TeSys Deca replacement contactor coil rated 48 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D40A to D65A and LC1DT60A/DT80A. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.

Technical Specifications

SKU LXD3E7
Brand Schneider Electric
Range TeSys Deca
Device Short Name LXD3
Product Type Contactor coil
Control Circuit Voltage (Uc) 48 V AC 50/60 Hz
Average Resistance (20 degC) 7.97 Ohm
Inductance of Closed Circuit 0.48 H
Product Compatibility LC1D40A...D65A, LC1DT60A, LC1DT80A
Maximum Operating Rate 3600 cyc/h at 60 degC
Coil Technology Without built-in suppressor module
Inrush Power 160 VA (50/60 Hz, cos phi 0.75, 20 degC)
Hold-in Power Consumption 15 VA (50/60 Hz, cos phi 0.3, 20 degC)
Heat Dissipation 4-5 W (50/60 Hz)
Ambient Temperature (Operation) -5 to 60 degC
Net Weight 0.07 kg

Selection Notes

The LXD3E7 fits 48 V AC control circuits on the LC1D40A-D65A frame and its DT60A/DT80A reversing variants. Pick the B7, F7 or Q7 coil instead for 24 V, 110 V or 380 V supplies on the same contactor frame. No built-in suppressor module is fitted.

Technical Details

Short Description
TeSys Deca replacement contactor coil, 48 V AC 50/60 Hz, for LC1D40A-D65A contactors.
Rated Voltage (VAC)
48 V AC
Delivery Date (Days)
30 days
Model Number
LXD3
Tariff Code
85365080
