Part number
LXD3B7
Model no
LXD3
$38.53 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Deca

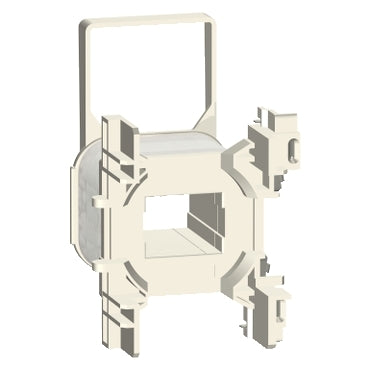

Schneider Electric LXD3B7 TeSys Deca Contactor Coil 24 V AC 50/60 Hz for LC1D40A-D65A Contactor Coil

TeSys Deca replacement contactor coil, 24 V AC 50/60 Hz, for LC1D40A-D65A contactors.

Rated operational voltage
24 V AC
EAN
3389119410304
Description

About the LXD3

The Schneider Electric LXD3B7 is a TeSys Deca replacement contactor coil rated 24 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D40A to D65A and LC1DT60A/DT80A. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.

Selection Notes

The LXD3B7 is the 24 V AC entry point of the LXD3 coil lineup for the LC1D40A-D65A frame and its DT60A/DT80A reversing variants; step up to E7, F7 or Q7 if the control rail runs 48 V, 110 V or 380 V instead. For the smaller LC1D09-D38 frame, use the LXD1 coil series rather than LXD3. No built-in suppressor module is fitted.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product or Component Type Contactor coil
Device short name LXD3
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 24 V AC 50/60 Hz
Average resistance 1.98 Ohm 68 °F (20 °C)
Inductance of closed circuit 0.12 H
Product Compatibility LC1DT60A, LC1D40A...D65A, LC1DT80A
Mechanical durability 6 Mcycles
Maximum operating rate 3600 cyc/h 140 °F (60 °C)

Complementary 5

Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C))
Inrush power in VA 160 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Hold-in power consumption in VA 15 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Heat dissipation 4…5 W 50/60 Hz

Environment 2

Ambient Air Temperature for Operation 23…140 °F (-5…60 °C)
Net Weight 0.15 lb(US) (0.07 kg)
Show all 31 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LXD3B7
Type designation LXD3
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119410304

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.07 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
