Schneider TeSys Deca

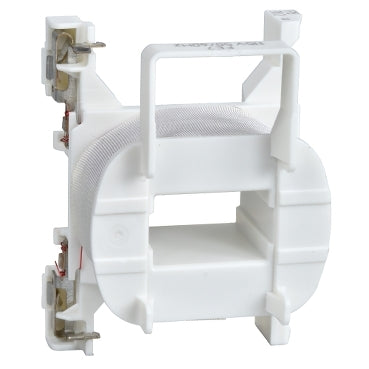

Schneider Electric LXD1Q7 TeSys Deca Contactor Coil 380 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

TeSys Deca replacement contactor coil, 380 V AC 50/60 Hz, for LC1D09-D38 contactors and CAD relays.

Rated operational voltage
380 V AC
EAN
3389110467925
Description

About the LXD1

The Schneider Electric LXD1Q7 is a TeSys Deca replacement contactor coil rated 380 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D09 to D38 and LC1DT20/DT40, plus CAD auxiliary relays. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.

Selection Notes

The LXD1Q7 is the 380 V AC coil for LC1D09-D38 contactors and CAD relays, used where the control transformer secondary or local supply is 380 V rather than a lower control voltage. Pick the B7, D7, E7 or F7 coil instead for 24 V, 42 V, 48 V or 110 V supplies on the same contactor frame. No built-in suppressor module is fitted.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product or Component Type Contactor coil
Device short name LXD1
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 380 V AC 50/60 Hz
Average resistance 1551 Ohm 68 °F (20 °C)
Inductance of closed circuit 55 H
Product Compatibility LC1DT20...DT40, CAD, LC1D09...D38
Mechanical durability 15 Mcycles
Maximum operating rate 3600 cyc/h 140 °F (60 °C)

Complementary 5

Coil technology Without built-in suppressor module
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C))
Inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Heat dissipation 2…3 W 50/60 Hz

Environment 2

Ambient Air Temperature for Operation 23…140 °F (-5…60 °C)
Net Weight 0.15 lb(US) (0.07 kg)
Show all 31 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LXD1Q7
Type designation LXD1
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110467925

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.07 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
