Schneider Electric LXD1F7 TeSys Deca Contactor Coil 110 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

% $-11.12

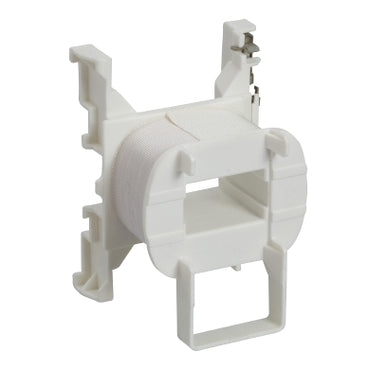

Schneider Electric LXD1F7 TeSys Deca contactor coil 110V AC for LC1D09-D38
Schneider Electric LXD1F7 TeSys Deca contactor coil 110V AC for LC1D09-D38

Schneider Electric LXD1F7 TeSys Deca Contactor Coil 110 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

Brand: Schneider Electric
Reference No: LXD1F7
Tariff Code (HS): 85365080
Rated Voltage: 110 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LXD1F7 is a TeSys Deca replacement contactor coil rated 110 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D09 to D38 and LC1DT20/DT40, plus CAD auxiliary relays. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.

Technical Specifications

SKU LXD1F7
Brand Schneider Electric
Range TeSys Deca
Device Short Name LXD1
Product Type Contactor coil
Control Circuit Voltage (Uc) 110 V AC 50/60 Hz
Average Resistance (20 degC) 124.1 Ohm
Inductance of Closed Circuit 4.6 H
Product Compatibility LC1D09...D38, LC1DT20, LC1DT40, CAD relays
Maximum Operating Rate 3600 cyc/h at 60 degC
Coil Technology Without built-in suppressor module
Inrush Power 70 VA (50/60 Hz, cos phi 0.75, 20 degC)
Hold-in Power Consumption 7-7.5 VA (50/60 Hz, cos phi 0.3, 20 degC)
Heat Dissipation 2-3 W (50/60 Hz)
Ambient Temperature (Operation) -5 to 60 degC
Net Weight 0.07 kg

Selection Notes

The LXD1F7 is the 110 V AC coil for LC1D09-D38 contactors and CAD relays, the most common control voltage on European industrial panels after 24 V. Pick the B7, D7, E7 or Q7 coil instead for 24 V, 42 V, 48 V or 380 V supplies on the same contactor frame. No built-in suppressor module is fitted.

Technical Details

Short Description
TeSys Deca replacement contactor coil, 110 V AC 50/60 Hz, for LC1D09-D38 contactors and CAD relays.
Rated Voltage (VAC)
110 V AC
Delivery Date (Days)
30 days
Model Number
LXD1
Tariff Code
85365080
