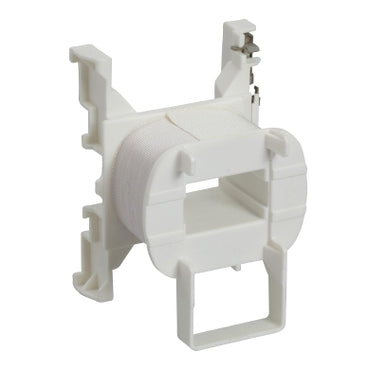

The Schneider Electric LXD1D7 is a TeSys Deca replacement contactor coil rated 42 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D09 to D38 and LC1DT20/DT40, plus CAD auxiliary relays. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.
The LXD1D7 covers 42 V AC control circuits on LC1D09-D38 contactors and CAD relays, a voltage commonly used on reduced-voltage safety control rails. Pick the B7, E7, F7 or Q7 coil instead for 24 V, 48 V, 110 V or 380 V control supplies on the same contactor frame. No built-in suppressor module is fitted.
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LXD1 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 42 V AC 50/60 Hz |
| Average resistance | 17 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 0.67 H |
| Product Compatibility | CAD, LC1DT20...DT40, LC1D09...D38 |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <140 °F (60 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <140 °F (60 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C)) |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Heat dissipation | 2…3 W 50/60 Hz |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
|---|---|
| Net Weight | 0.15 lb(US) (0.07 kg) |
| Part number | LXD1D7 |
|---|---|
| Type designation | LXD1 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110467703 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.07 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
