Schneider Electric LXD1B7 TeSys Deca Contactor Coil 24 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

% $-11.12

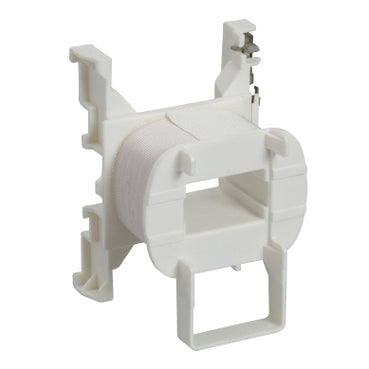

Schneider Electric LXD1B7 TeSys Deca contactor coil 24V AC for LC1D09-D38
Schneider Electric LXD1B7 TeSys Deca contactor coil 24V AC for LC1D09-D38

Schneider Electric LXD1B7 TeSys Deca Contactor Coil 24 V AC 50/60 Hz for LC1D09-D38 Contactor Coil

Brand: Schneider Electric
Reference No: LXD1B7
Tariff Code (HS): 85365080
Rated Voltage: 24 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$11.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LXD1B7 is a TeSys Deca replacement contactor coil rated 24 V AC 50/60 Hz, built for 3 and 4-pole contactors LC1D09 to D38 and LC1DT20/DT40, plus CAD auxiliary relays. It operates within 0.8-1.1 Uc at 50 Hz (0.85-1.1 Uc at 60 Hz) and is rated for continuous duty up to 60 degC ambient.

Technical Specifications

SKU LXD1B7
Brand Schneider Electric
Range TeSys Deca
Device Short Name LXD1
Product Type Contactor coil
Control Circuit Voltage (Uc) 24 V AC 50/60 Hz
Average Resistance (20 degC) 5.37 Ohm
Inductance of Closed Circuit 0.22 H
Product Compatibility LC1D09...D38, LC1DT20, LC1DT40, CAD relays
Maximum Operating Rate 3600 cyc/h at 60 degC
Coil Technology Without built-in suppressor module
Inrush Power 70 VA (50/60 Hz, cos phi 0.75, 20 degC)
Hold-in Power Consumption 7-7.5 VA (50/60 Hz, cos phi 0.3, 20 degC)
Heat Dissipation 2-3 W (50/60 Hz)
Ambient Temperature (Operation) -5 to 60 degC
Net Weight 0.07 kg

Selection Notes

The LXD1B7 is the 24 V AC entry point of the LXD1 coil lineup for LC1D09-D38 contactors and CAD relays; step up to D7, E7, F7 or Q7 if the control rail runs 42 V, 48 V, 110 V or 380 V instead. For the larger LC1D40A-D65A frame, use the LXD3 coil series rather than LXD1. No built-in suppressor module is fitted.

Technical Details

Short Description
TeSys Deca replacement contactor coil, 24 V AC 50/60 Hz, for LC1D09-D38 contactors and CAD relays.
Rated Voltage (VAC)
24 V AC
Delivery Date (Days)
30 days
Model Number
LXD1
Tariff Code
85365080
