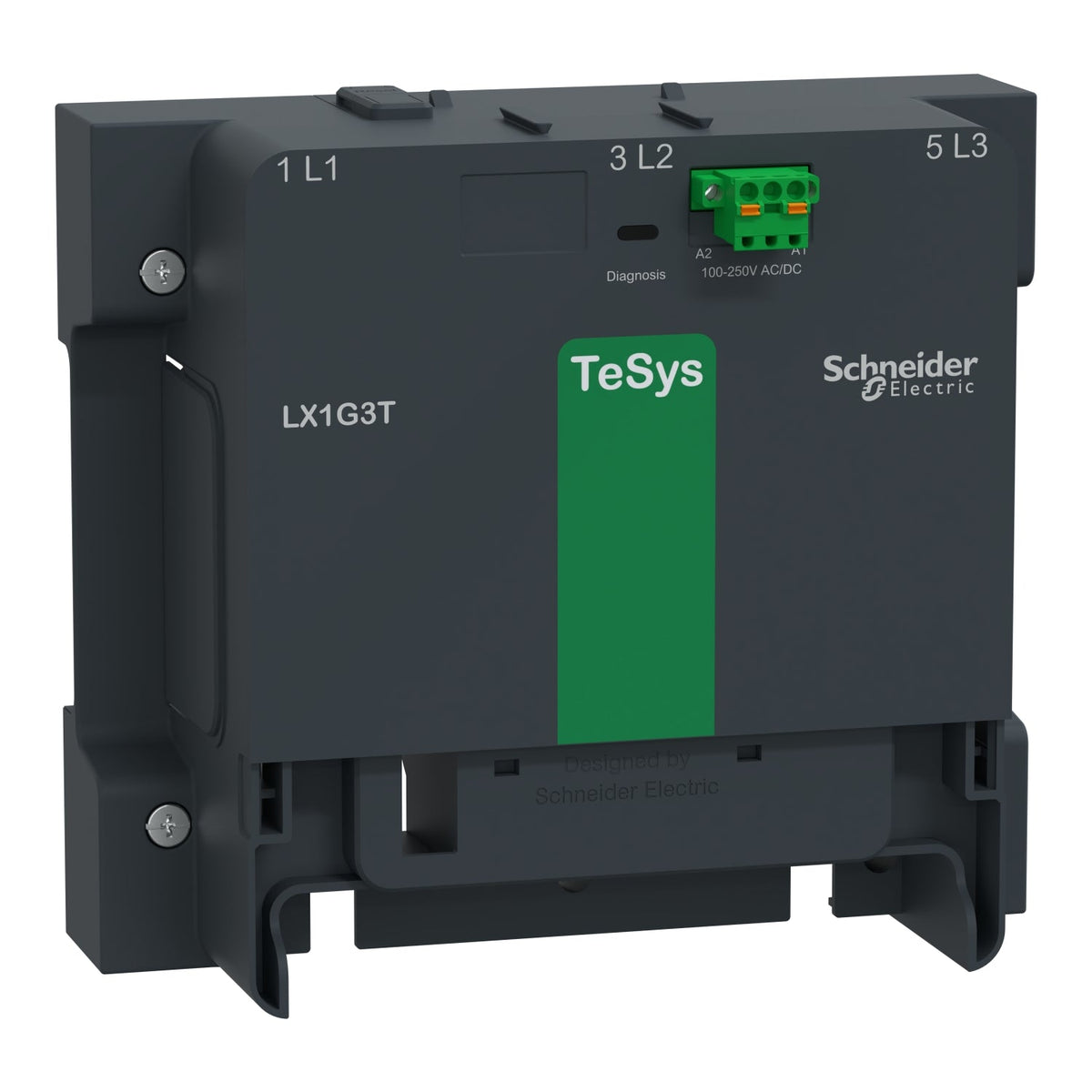

The Schneider Electric LX1G3TKUEN is a TeSys Giga control module rated 100-250 V AC/DC for the 3-pole G630...800 contactor (standard version). It permits operating rates up to 600 cycles per minute at 60 C, includes local Contact Wear Diagnosis with healthy/alarm indication, and connects via spring terminals for the A1/A2 coil circuit and pole-status signalling.
Confirm the coil voltage band before ordering: the 100-250 V AC/DC LX1G3TKUEN is built for the LC1G630...800 frame only and is not interchangeable with the control modules sized for the other TeSys Giga frames. The local Contact Wear Diagnosis function reports contact condition continuously, so maintenance can be scheduled before a contact failure causes unplanned downtime.
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LX1G |
| Poles description | 3P |
| Range compatibility | TeSys G LX1G contactor coil |
| Product Compatibility | LC1G630...800 |
| [Uc] control circuit voltage | 100...250 V AC/DC 50/60 Hz |
| Operating time | 20...35 ms opening, 40...55 ms closing |
| Mechanical durability | 5 Mcycles |
| Maximum operating rate | 600 cyc/mn 140 °F (60 °C) |
| Coil technology | Built-in bidirectional peak limiting |
|---|---|
| Control circuit voltage limits | Operational 0.8...1.1 Uc 140 °F (60 °C)), Drop-out 0...0.45 Uc 140 °F (60 °C)) |
| Connections - terminals | Control circuit push-in termination 1 0.0003…0.004 in² (0.2…2.5 mm²) solid stranded without cable end sleeve 26 AWG...12 AWG, Control circuit push-in termination 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible with cable end sleeve 24 AWG...14 AWG, Control circuit push-in termination 2 0.0008…0.002 in² (0.5…1.0 mm²) rigid or stranded with cable end sleeve 20 AWG...18 AWG |
| IP degree of protection | IP20 IEC 60529 |
|---|---|
| Operating altitude | 9842.52 ft (3000 m) without derating, 5000 m with derating factor |
| Electromagnetic compatibility | EMC immunity conforming to IEC 60947-4-1, Emission tests criteria A conforming to IEC 60947-4-1, Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, Voltage dips and interruptions immunity test conforming to SEMI F47 |
| Standards | EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1 |
| Pollution degree | 3 IEC 60947-1 |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Permissible ambient air temperature around the device | -40…158 °F (-40…70 °C) at Uc |
| Height | 5.1 in (130 mm) |
| Width | 7.6 in (192 mm) |
| Depth | 8.3 in (211 mm) |
| Net Weight | 75.7 oz (2145 g) |
| Quantity per Set | 1 |
| Part number | LX1G3TKUEN |
|---|---|
| Type designation | LX1G |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481946355 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 2.145 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of LX1G is 100–250–DC V DC.
The tariff (HS) code on file for LX1G is 853690.
The EAN (GTIN) of LX1G is 3606481946355.
LX1G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
