Schneider Electric LX1G3SLSEA TeSys Giga Control Module 3P 200-500 V AC/DC for LC1G400...500 Contactor Coil

% $-452.92

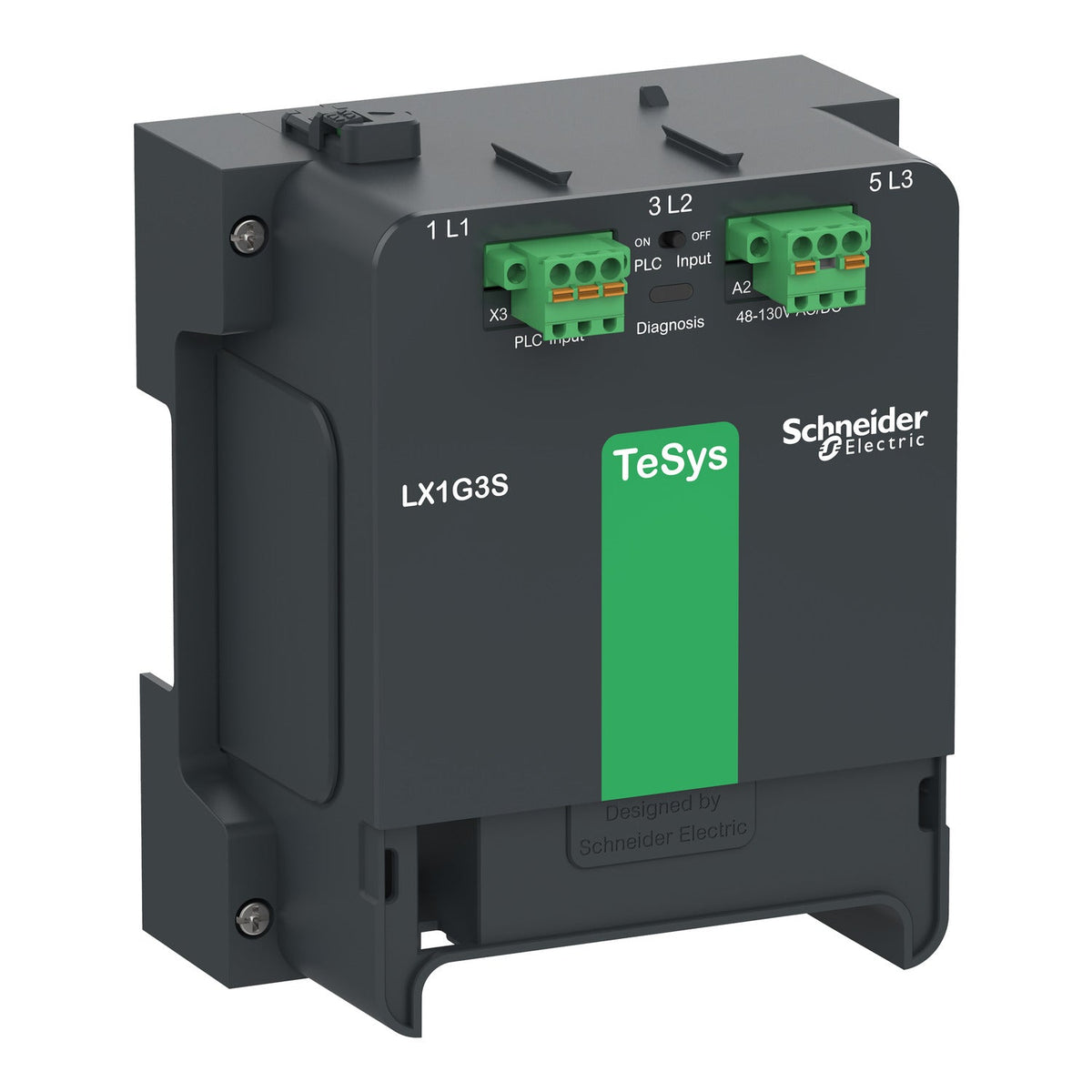

Schneider Electric LX1G3SLSEA TeSys Giga control module 200-500 V AC/DC for LC1G400...500
Schneider Electric LX1G3SLSEA TeSys Giga control module 200-500 V AC/DC for LC1G400...500

Schneider Electric LX1G3SLSEA TeSys Giga Control Module 3P 200-500 V AC/DC for LC1G400...500 Contactor Coil

Brand: Schneider Electric
Reference No: LX1G3SLSEA
Catalog No: LX1G3SLSEA
Tariff Code (HS): 853690
Rated Voltage: 200-500 V AC/DC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$452.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LX1G3SLSEA is a TeSys Giga control module rated 200-500 V AC/DC for the 3-pole G400...500 contactor (advanced version). It permits operating rates up to 600 cycles per minute at 60 C, includes local and remote Contact Wear Diagnosis with healthy/alarm indication, and connects via spring terminals for the A1/A2 coil circuit and pole-status signalling.

Technical Specifications

Reference LX1G3SLSEA
Brand Schneider Electric
Range TeSys Giga
GTIN 03606481946249
Device short name LX1G
Product or component type Contactor coil / control module
Poles description 3P
Product compatibility LC1G400...500
Uc control circuit voltage 200-500 V AC/DC 50/60 Hz
Operating time 20-35 ms opening, 40-55 ms closing
Maximum operating rate 600 cyc/mn at 60 C
Coil technology Built-in bidirectional peak limiting
Inrush power 400 VA (480 V AC, 60 Hz)
Inrush power (DC) 260 W (DC)
Hold-in power consumption 14.9 VA (480 V AC, 60 Hz)
Hold-in power consumption (DC) 4.8 W (DC)
IP degree of protection IP20 (IEC 60529)
Operating altitude 3000 m without derating, 5000 m with derating
Pollution degree 3 (IEC 60947-1)
Ambient air temperature for operation -25...60 C
Ambient air temperature for storage -60...80 C
Dimensions (W x H x D) 140.0 mm x 167.0 mm x 93.0 mm

Certifications & Standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1A
  • CSA C22.2 No 60947-4-1

Selection Notes

Confirm the coil voltage band before ordering: the 200-500 V AC/DC LX1G3SLSEA is built for the LC1G400...500 frame only and is not interchangeable with the control modules sized for the other TeSys Giga frames. The local and remote Contact Wear Diagnosis function reports contact condition continuously, so maintenance can be scheduled before a contact failure causes unplanned downtime.

Technical Details

Short Description
TeSys Giga control module, 3P, 200-500 V AC/DC, for LC1G400...500 contactors.
Rated Voltage (VAC)
200-500 V AC/DC
Mounting Type
Spring terminal, front face
Protection Type
IP20
Catalog No
LX1G3SLSEA
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LX1G
Tariff Code
853690
