Part number
LX1G3SEHEN
Model no
LX1G
$392.50 On request Dispatch — · From TürkiyeGet a Quote
Schneider TeSys Giga

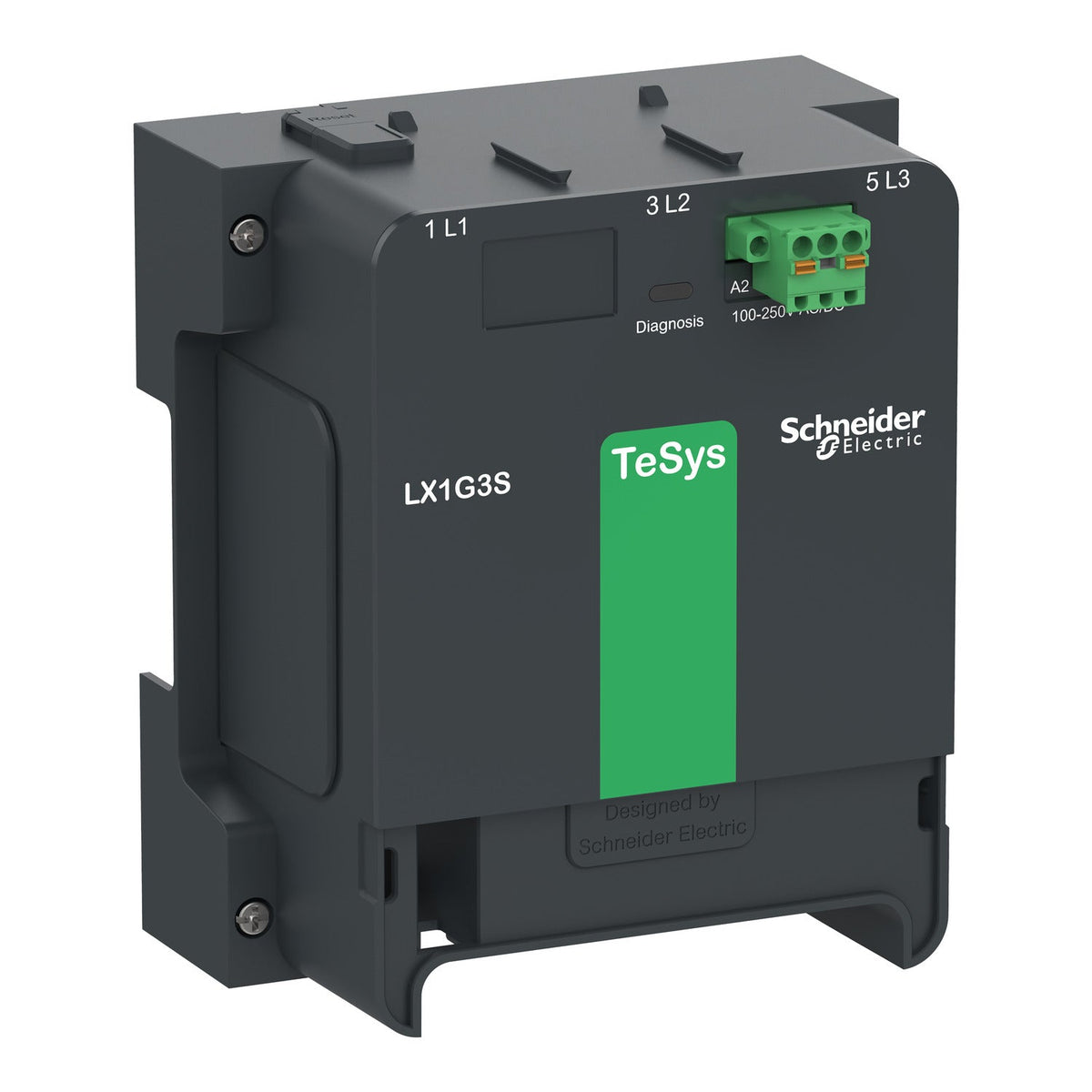

Schneider Electric LX1G3SEHEN TeSys Giga Control Module 3P 48-130 V AC/DC for LC1G400...500 Contactor Coil

TeSys Giga control module, 3P, 48-130 V AC/DC, for LC1G400...500 contactors.

Rated operational voltage
48–130–DC V DC
Poles
3P
EAN
03606481946324
Description

About the LX1G

The Schneider Electric LX1G3SEHEN is a TeSys Giga control module rated 48-130 V AC/DC for the 3-pole G400...500 contactor (standard version). It permits operating rates up to 600 cycles per minute at 60 C, includes local Contact Wear Diagnosis with healthy/alarm indication, and connects via spring terminals for the A1/A2 coil circuit and pole-status signalling.

Certifications & Standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1A
  • CSA C22.2 No 60947-4-1

Selection Notes

Confirm the coil voltage band before ordering: the 48-130 V AC/DC LX1G3SEHEN is built for the LC1G400...500 frame only and is not interchangeable with the control modules sized for the other TeSys Giga frames. The local Contact Wear Diagnosis function reports contact condition continuously, so maintenance can be scheduled before a contact failure causes unplanned downtime.

Specification

Full specification

43 values · Last verified 30 Oct 2026

Main 10

Range TeSys
Product or Component Type Contactor coil
Device short name LX1G
Poles description 3P
Range compatibility TeSys G LX1G contactor coil
Product Compatibility LC1G400...500
[Uc] control circuit voltage 48...130 V AC/DC 50/60 Hz
Operating time 20...35 ms opening, 40...55 ms closing
Mechanical durability 5 Mcycles
Maximum operating rate 600 cyc/mn 140 °F (60 °C)

Complementary 7

Coil technology Built-in bidirectional peak limiting
Control circuit voltage limits Operational 0.8...1.1 Uc 140 °F (60 °C)), Drop-out 0...0.45 Uc 140 °F (60 °C))
Connections - terminals Control circuit push-in termination 1 0.0003…0.004 in² (0.2…2.5 mm²) solid stranded without cable end sleeve 26 AWG...12 AWG, Control circuit push-in termination 1 0.0004…0.004 in² (0.25…2.5 mm²) flexible with cable end sleeve 24 AWG...14 AWG, Control circuit push-in termination 2 0.0008…0.002 in² (0.5…1.0 mm²) rigid or stranded with cable end sleeve 20 AWG...18 AWG
Inrush power in VA 1065 VA 120 V AC, 60 Hz
Inrush power in W 760.0 W DC
Hold-in power consumption in VA 15.8 VA 120 V AC, 60 Hz
Hold-in power consumption in W 4.9 W DC

Environment 12

IP degree of protection IP20 IEC 60529
Operating altitude 9842.52 ft (3000 m) without derating, 5000 m with derating factor
Electromagnetic compatibility EMC immunity conforming to IEC 60947-4-1, Emission tests criteria A conforming to IEC 60947-4-1, Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, Voltage dips and interruptions immunity test conforming to SEMI F47
Standards EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1
Pollution degree 3 IEC 60947-1
Ambient Air Temperature for Operation -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage -76…176 °F (-60…80 °C)
Permissible ambient air temperature around the device -40…158 °F (-40…70 °C) at Uc
Height 6.6 in (167.0 mm)
Width 5.5 in (140.0 mm)
Depth 3.7 in (93.0 mm)
Quantity per Set 1
Show all 43 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LX1G3SEHEN
Type designation LX1G
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 03606481946324

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 2.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LX1G3SEHEN

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-4-1
  • UL 60947-4-1A
  • CSA C22.2 No 60947-4-1
Quick answers

Questions about the LX1G

Which supply voltage is LX1G rated for?

The rated operational voltage of LX1G is 48–130–DC V DC.

What is the HS code of LX1G for customs?

The tariff (HS) code on file for LX1G is 853690.

What is the EAN of LX1G?

The EAN (GTIN) of LX1G is 03606481946324.

Where does LX1G ship from, and how fast?

LX1G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
