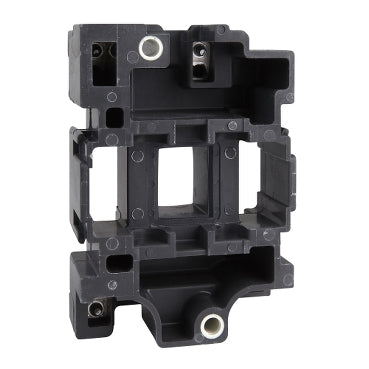

Schneider Electric LX1D6F7 TeSys Deca Contactor Coil 110 V AC 50/60 Hz for LC1D80-D95 Contactor Coil

% $-38.14
Schneider Electric LX1D6F7 TeSys Deca contactor coil 110V AC for LC1D80-D95
Schneider Electric LX1D6F7 TeSys Deca contactor coil 110V AC for LC1D80-D95

Schneider Electric LX1D6F7 TeSys Deca Contactor Coil 110 V AC 50/60 Hz for LC1D80-D95 Contactor Coil

Brand: Schneider Electric
Reference No: LX1D6F7
Tariff Code (HS): 85365080
Rated Voltage: 110 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$38.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LX1D6F7 is a TeSys Deca replacement contactor coil rated 110 V AC 50/60 Hz, built for the 3 and 4-pole contactors in the LC1D40-D50-D65...D95 frame. It operates within 0.85-1.1 Uc and is rated for continuous duty up to 55 degC ambient.

Technical Specifications

SKU LX1D6F7
Brand Schneider Electric
Range TeSys Deca
Device Short Name LX1D6
Product Type Contactor coil
Control Circuit Voltage (Uc) 110 V AC 50/60 Hz
Average Resistance (20 degC) 26 Ohm
Inductance of Closed Circuit 1.7 H
Product Compatibility LC1D40, LC1D50, LC1D65...D95
Maximum Operating Rate 3600 cyc/h at 60 degC
Coil Technology Without built-in suppressor module
Inrush Power 245 VA (50/60 Hz, cos phi 0.75, 20 degC)
Hold-in Power Consumption 26 VA (50/60 Hz, cos phi 0.3, 20 degC)
Heat Dissipation 6-10 W (50/60 Hz)
Ambient Temperature (Operation) -5 to 60 degC
Net Weight 0.28 kg

Selection Notes

Use the LX1D6F7 as a direct field replacement coil for 110 V AC control circuits on LC1D80-D95 TeSys Deca contactors; pick the B7 (24 V) variant for 24 V control rails instead. The coil has no built-in suppressor module, so re-terminate any existing surge-suppression wiring from the original coil when installing it.

Technical Details

Short Description
TeSys Deca replacement contactor coil, 110 V AC 50/60 Hz, for LC1D80-D95 contactors.
Rated Voltage (VAC)
110 V AC
Delivery Date (Days)
30 days
Model Number
LX1D6
Tariff Code
85365080
