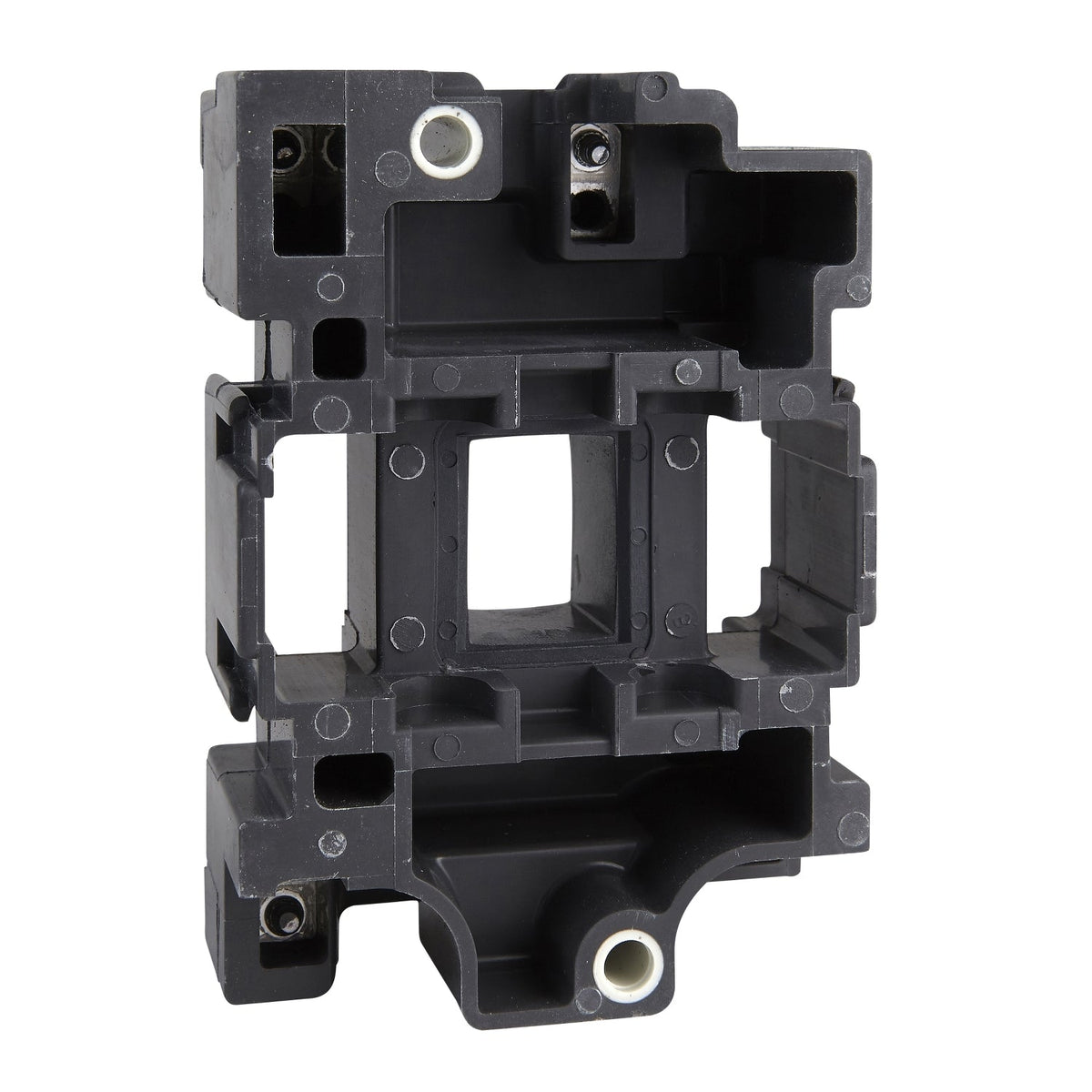

Schneider Electric LX1D6E7 TeSys Deca Contactor Coil 48 V AC 50/60 Hz for LC1D40-D95 Contactor Coil

% $-38.19
Schneider Electric LX1D6E7 TeSys Deca contactor coil 48 V AC for LC1D40-D95
Schneider Electric LX1D6E7 TeSys Deca contactor coil 48 V AC for LC1D40-D95

Schneider Electric LX1D6E7 TeSys Deca Contactor Coil 48 V AC 50/60 Hz for LC1D40-D95 Contactor Coil

Brand: Schneider Electric
Reference No: LX1D6E7
Catalog No: LX1D6E7
Tariff Code (HS): 853690
Rated Voltage: 48 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$38.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LX1D6E7 is a TeSys Deca replacement contactor coil rated 48 V AC 50/60 Hz, compatible with LC1D40, LC1D50, and LC1D65...D95 contactors in the 80-95 A frame. It is supplied without a built-in suppressor module and is rated for up to 3600 cycles per hour at 60 C ambient.

Technical Specifications

Reference LX1D6E7
Brand Schneider Electric
Range TeSys Deca
GTIN 3389110233360
Device short name LX1D6
Product or component type Contactor coil
Control circuit type AC 50/60 Hz
Uc control circuit voltage 48 V AC 50/60 Hz
Average resistance 5 ohm at 20 C
Inductance of closed circuit 0.32 H
Product compatibility LC1D40, LC1D50, LC1D65...D95
Maximum operating rate 3600 cyc/h at 60 C
Coil technology Without built-in suppressor module
Inrush power 245 VA (50/60 Hz, cos phi 0.75, at 20 C)
Hold-in power consumption 26 VA (50/60 Hz, cos phi 0.3, at 20 C)
Heat dissipation 6-10 W (50/60 Hz)
Ambient air temperature for operation -5...60 C
Net weight 0.28 kg
Country of origin CZ

Selection Notes

Match the LX1D6E7 only to the LC1D40, LC1D50, or LC1D65...D95 frame it is listed for, since TeSys Deca coils are frame-specific; if the contactor runs on a different control voltage, the equivalent 48 V AC coil position in a smaller or larger frame uses a different reference, not this one.

Technical Details

Short Description
TeSys Deca contactor coil, 48 V AC 50/60 Hz, for LC1D40-D95 contactors.
Rated Voltage (VAC)
48 V AC
Catalog No
LX1D6E7
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LX1D6
Tariff Code
853690
