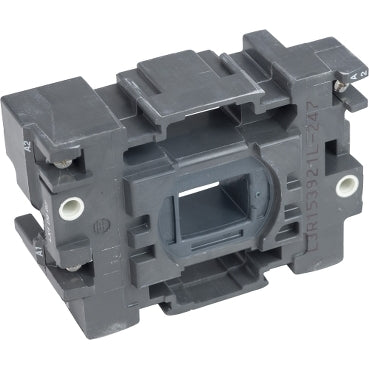

The Schneider Electric LX1D6B7 is a TeSys Deca replacement contactor coil rated 24 V AC 50/60 Hz, built for the 3 and 4-pole contactors in the LC1D40-D50-D65...D95 frame. It operates within 0.85-1.1 Uc and is rated for continuous duty up to 55 degC ambient.
Use the LX1D6B7 as a direct field replacement coil for 24 V AC control circuits on LC1D80-D95 TeSys Deca contactors; pick the F7 (110 V) variant if the panel runs a 110 V control rail instead. The coil carries no built-in suppressor module, so any existing surge-suppression wiring on the original coil should be re-terminated when swapping it in.
| Range | TeSys |
|---|---|
| Product or Component Type | Contactor coil |
| Device short name | LX1D6 |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Average resistance | 1.22 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 0.08 H |
| Product Compatibility | LC1D40, LC1D50, LC1D65...D95 |
| Mechanical durability | 4 Mcycles |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Coil technology | Without built-in suppressor module |
|---|---|
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <131 °F (55 °C)), Operational: 0.8...1.1 Uc at 50 Hz (at <131 °F (55 °C)), Operational: 0.85...1.1 Uc at 60 Hz (at <131 °F (55 °C)) |
| Inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)), 245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)), 26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Heat dissipation | 6…10 W 50/60 Hz |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) |
|---|---|
| Net Weight | 0.62 lb(US) (0.28 kg) |
| Part number | LX1D6B7 |
|---|---|
| Type designation | LX1D6 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110233353 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.28 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
