Schneider Electric LV481012 VigiPacT TB60 Closed Toroid B Type 60 mm 125 A Relay Accessory

% $-780.55

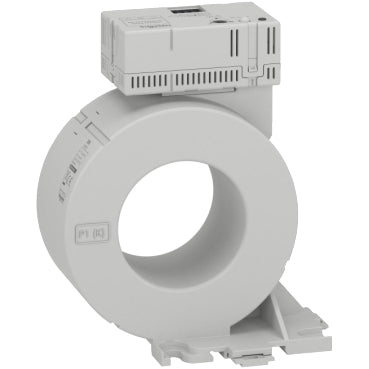

Schneider Electric LV481012 VigiPacT TB60 closed toroid 60 mm 125 A – Relay Accessory
Schneider Electric LV481012 VigiPacT TB60 closed toroid 60 mm 125 A – Relay Accessory

Schneider Electric LV481012 VigiPacT TB60 Closed Toroid B Type 60 mm 125 A Relay Accessory

Brand: Schneider Electric
Reference No: LV481012
Tariff Code (HS): 85389099
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$780.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV481012 is a VigiPacT TB60 closed toroid, a type B earth-leakage current sensor dedicated to VigiPacT RHB residual current protection and monitoring relays. It measures current up to 125 A with a 60 mm inner diameter and a 1/600 transformer ratio, weighing 0.530 kg.

Technical Specifications

Reference LV481012
Brand Schneider Electric
Range VigiPacT
Device Short Name TB60
Product or Component Type Earth leakage current sensor (B type closed toroid)
Range Compatibility VigiPacT RHB residual current protection relay, RHB wiring kit
[Ie] Rated Operational Current 125 A
Network Frequency 50/60 Hz, 0-2000 Hz
[Icw] Rated Short-Time Withstand Current 25 kA for 0.5 s
Residual Short-Circuit Withstand Current 36 kA / 0.5 s (IEC 60947-2)
[Ui] Rated Insulation Voltage 800 V
Overvoltage Category III
[Uimp] Rated Impulse Withstand Voltage 8 kV
Mounting Mode Fixed (plain backplate or DIN rail)
Inner Diameter 60 mm
Dimensions (H x W x D) 151 x 126 x 78 mm
Net Weight 0.530 kg
IP Degree of Protection Body IP40, Connectors IP20
Ambient Temperature (Operation/Storage) -25...70 °C

Certifications & Standards

  • CE
  • IEC 60947-2

Selection Notes

The TB60 steps up from the TB35/TB35P frame to a 125 A protected circuit with a larger 60 mm bore for thicker conductors; the TB120 is the next step for a 250 A circuit. It mounts on either a plain backplate or a DIN rail and must pair with a compatible VigiPacT RHB relay.

Technical Details

Short Description
VigiPacT TB60 closed toroid, type B, 60 mm, 125 A, for RHB residual current relays.
Mounting Type
Fixed (plain backplate or DIN rail)
Protection Type
Body IP40 / Connectors IP20
Delivery Date (Days)
30 days
Model Number
TB60 Toroid
Tariff Code
85389099
