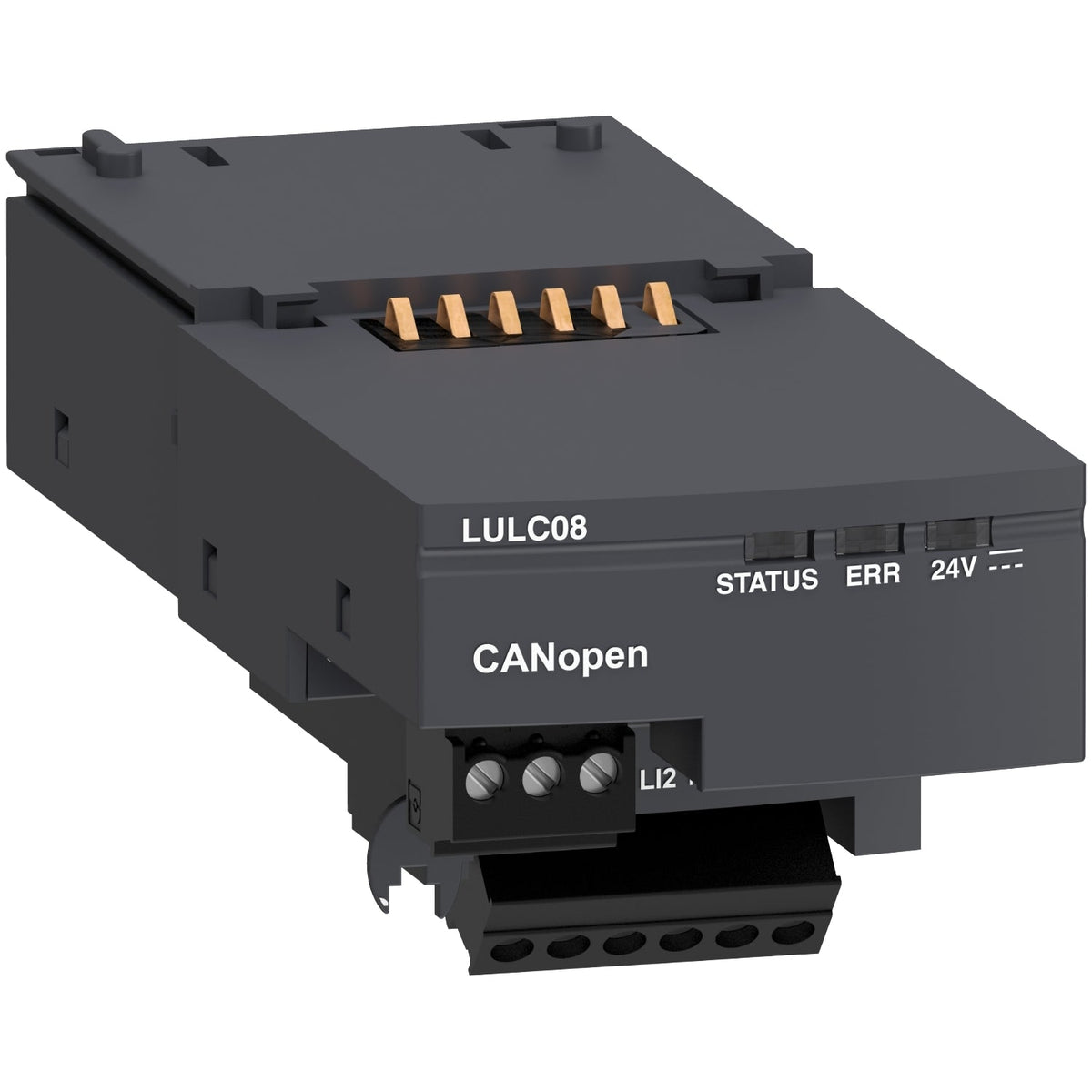

The Schneider Electric LULC08 is a TeSys U CANopen communication module that plugs into LUB120, LUB320, or LUB380 advanced power bases fitted with a 24 V DC (BL-type) control unit. It provides a 9-pin SUB-D port for the CANopen network, two configurable 24 V DC logic inputs, one 24 V DC logic output, and a local terminal block for the starter.
Specify the LULC08 for CANopen (CAN2.0A/B) networks on a 24 V DC (BL-type) control unit; where the plant standardises on Modbus RTU instead, the equivalent slot is filled by the RJ45-based LULC033, and both modules share the same 2-input/1-output local I/O arrangement.
| Range | TeSys |
|---|---|
| Device short name | LUL |
| Product or Component Type | Communication module |
| Product Compatibility | LUCA, LUCL, LUCD, LUCC, LUCM, LUCB |
| Device Application | Communication |
| Range compatibility | TeSys TeSys U LUB non reversing power base, TeSys TeSys U LU2B reversing power base |
| main function available | Communication module |
|---|---|
| Mounting Mode | Plug-in |
| Mounting Location | Front side |
| Physical interface | 9-way SUB-D female |
| Bus type | CANopen |
| Communication Port Protocol | CAN2.0A, CAN2.B |
| Addressing | 1...127 |
| Current consumption | 1.5 mA 24 V DC 20...28 V |
| Logic input | Positive 24 V DC - 7 mA |
| Response time | 10 ms +/- 30 % change to state 0, 10 ms +/- 30 % change to state 1 |
| Input type | Resistive |
| Number of outputs | 2 dedicated to starter-controller coil operation, 1 |
| [Us] rated supply voltage | 24 V DC |
| Output Current | <= 500 mA |
| Protection Type | GL fuse 2 A |
| Switching current capacity | 0.5 mA 24 V |
| Local signalling | 3 LEDs front panel |
| Connection pitch | 0.15 in (3.81 mm) |
| Connections - terminals | screw clamp terminals 1 0.0002…0.002 in² (0.14…1 mm²)flexible without cable end, screw clamp terminals 1 0.0002…0.002 in² (0.14…1 mm²)rigid without cable end, screw clamp terminals 1 0.0004…0.0008 in² (0.25…0.5 mm²)flexible with cable end, screw clamp terminals 1 0.0004…0.002 in² (0.25…1 mm²)flexible with cable end, screw clamp terminals 2 0.0002…0.0008 in² (0.14…0.5 mm²)rigid without cable end, screw clamp terminals 2 0.0002…0.001 in² (0.14…0.75 mm²)flexible without cable end, screw clamp terminals 2 0.0004…0.0005 in² (0.25…0.34 mm²)flexible with cable end, screw clamp terminals 2 0.0008 in² (0.5 mm²)flexible with cable end |
| Associated cable type | AWG 26...AWG 16 |
| Tightening torque | 1.8…2.21 lbf.in (0.2…0.25 N.m)0.10 in (2.5 mm) |
| Standards | DR 303-2, CIADS-301 V4.02 |
|---|---|
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Part number | LULC08 |
|---|---|
| Type designation | LUL |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118212909 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.104 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LUL is 853650.
The EAN (GTIN) of LUL is 3389118212909.
LUL ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
