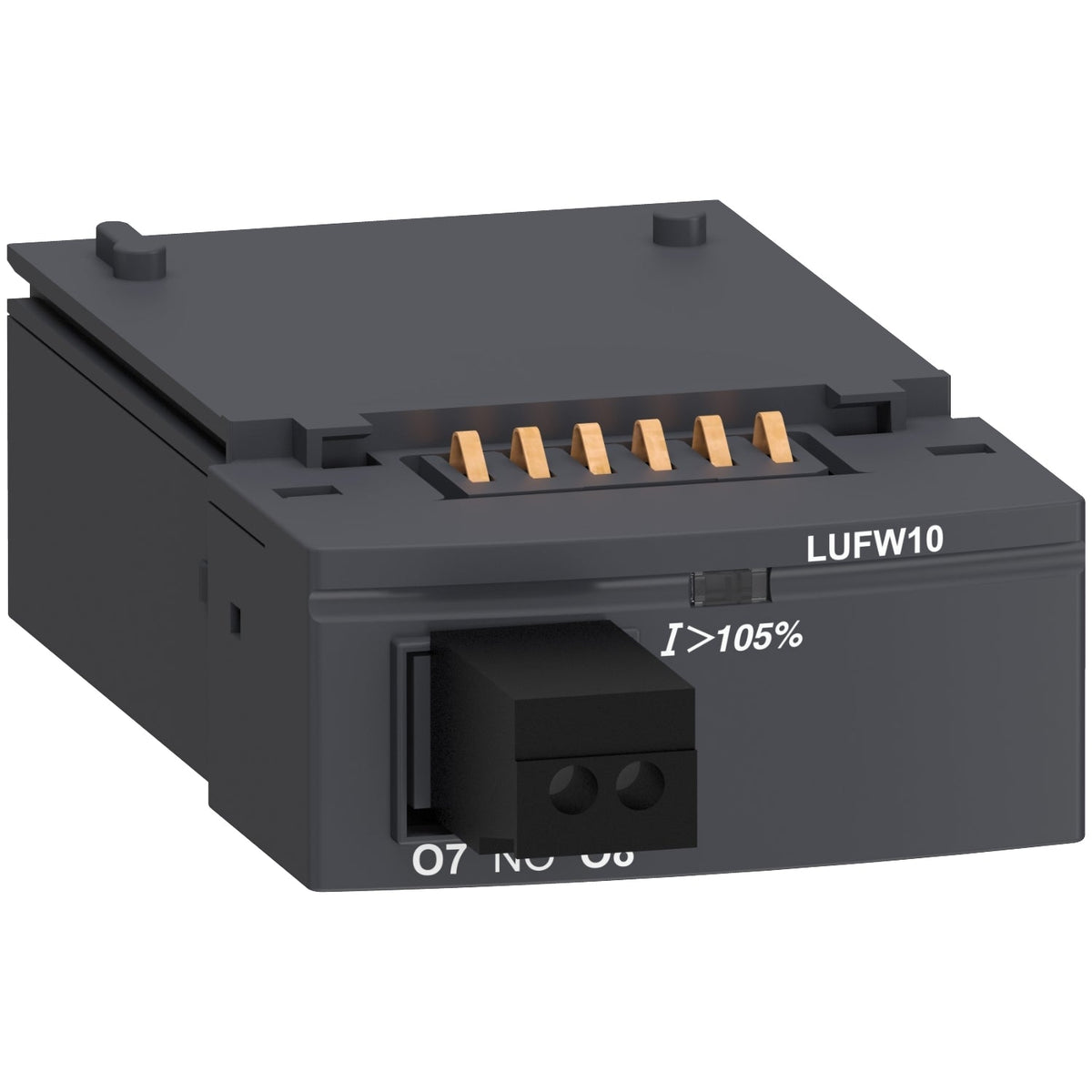

Schneider Electric LUFW10 TeSys U Function Module Thermal Overload Alarm 1NO Motor Starter Module

TeSys U function module, thermal overload pre-alarm, 1NO, 2 A, for LUB advanced bases.

Rated current
2 A
Rated operational voltage
230 V AC
Display
LED (front panel)
EAN
3389110365511
Description

About the LUF

The Schneider Electric LUFW10 is a TeSys U function module that plugs into LUB120, LUB320, or LUB380 advanced power bases to provide a thermal overload pre-alarm. It switches a 1 NO contact rated 2 A at 230 V AC / 24 V DC once the thermal state passes 88% of the tripping threshold, with 5% hysteresis, and is powered by the control unit.

Selection Notes

The LUFW10 gives a pre-trip warning rather than the trip event itself, since it fires at 88% of the thermal state with a 5% hysteresis band; wiring its NO contact into a PLC or SCADA alarm lets operators intervene on a developing overload before the starter actually opens the motor circuit.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 4

Range TeSys
Device short name LUF
Product or Component Type Function module
Product Compatibility LUCC, LUCB, LUCD

Complementary 13

Mounting Mode Plug-in
Mounting Location Front side
main function available Thermal overload alarm
Auxiliary contact composition 1 NO
Communication of faults LED front panel
Discrete output function 1 NO AC-15) 230 V 400 VA 100000 cycles, 1 NO DC-13) 24 V 50 W 100000 cycles
[Ith] conventional free air thermal current 2 A 158 °F (70 °C)
Short-circuit protection 2 A fuse gG IEC 60947-5-1
Connection pitch 0.20 in (5.08 mm)
Connections - terminals Screw clamp terminals 2 cable(s) 0.0003…0.002 in² (0.2…1 mm²) rigid without cable end, Screw clamp terminals 2 cable(s) 0.0004…0.002 in² (0.25…1 mm²) flexible with cable end, Screw clamp terminals 2 cable(s) 0.0008…0.002 in² (0.5…1 mm²) flexible with cable end, Screw clamp terminals 1 cable(s) 0.0003…0.002 in² (0.2…1.5 mm²) flexible without cable end, Screw clamp terminals 1 cable(s) 0.0003…0.002 in² (0.2…1.5 mm²) rigid without cable end, Screw clamp terminals 1 cable(s) 0.0004…0.002 in² (0.25…1.5 mm²) flexible with cable end, Screw clamp terminals 2 cable(s) 0.0003…0.002 in² (0.2…1 mm²) flexible without cable end
Associated cable type AWG24...AWG16
Tightening torque 4.4…5.3 lbf.in (0.5…0.6 N.m) 0.1 in (3.5 mm) flat
Net Weight 0.121 lb(US) (0.055 kg)

Contractual warranty 1

Warranty (in months) 18
Show all 31 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number LUFW10
Type designation LUF
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110365511

Logistics 5

Country of origin FR
Shipping weight 0.055 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
