Part number
LUFN20
Model no
LUFN
$21.88 On request Dispatch — · From TürkiyeGet a Quote

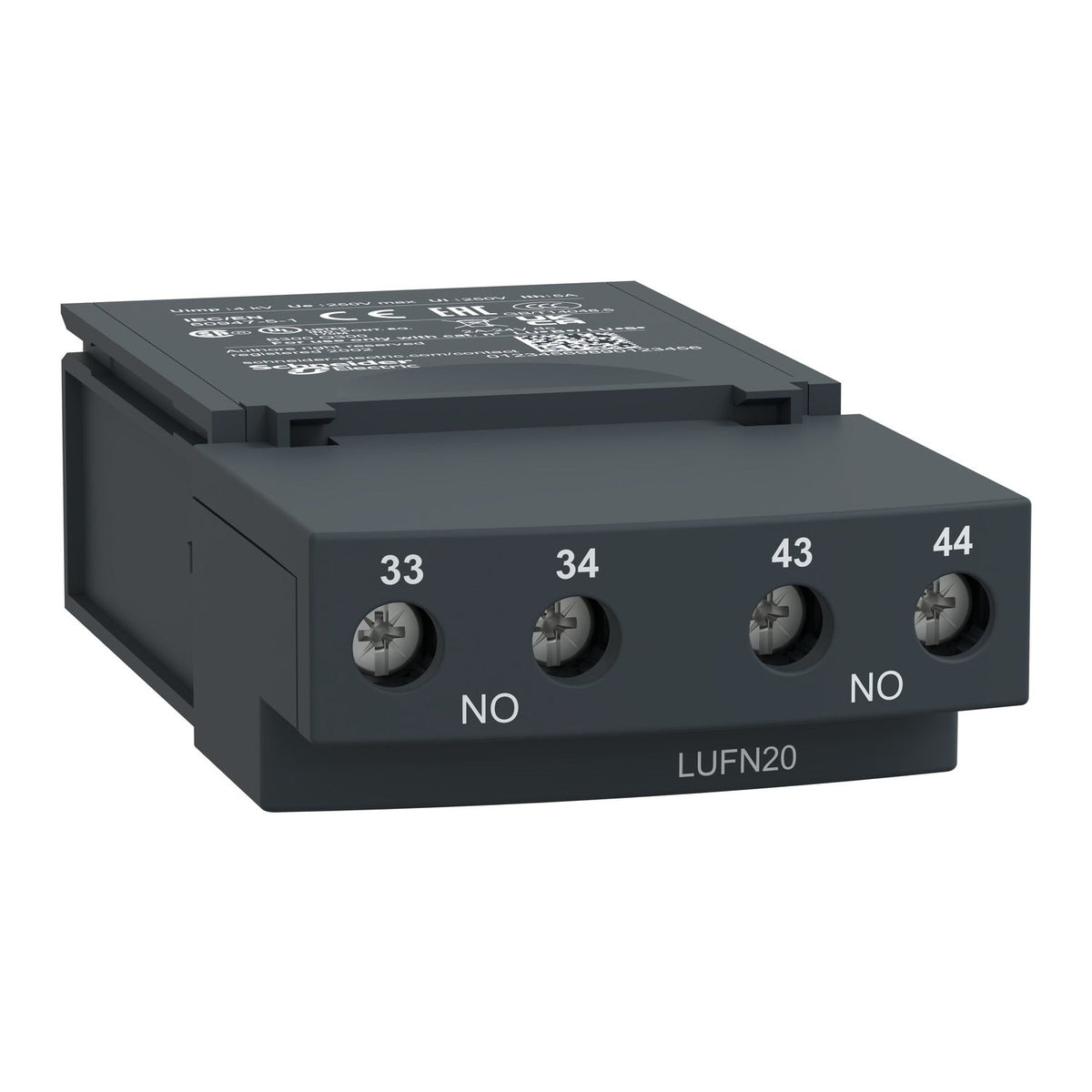

Schneider Electric LUFN20 TeSys U Auxiliary Contact Module 2NO 250 V AC/DC Motor Starter Module

TeSys U auxiliary contact module, 2NO, 250 V AC/DC, 5 A, for LUB power bases.

Rated current
5 A
Rated operational voltage
250–DC V DC
EAN
3389110365160
Description

About the LUFN

The Schneider Electric LUFN20 is a TeSys U auxiliary signaling contacts module that plugs into LUB12, LUB32, LUB38, LUB120, LUB320, or LUB380 power bases to report the ON/OFF running status of the motor regardless of rotation direction. It provides 2 NO instantaneous contacts rated 24-250 V AC/DC at up to 5 A, powered directly by the control unit.

Selection Notes

The LUFN20's 2 NO contacts suit interlocking and remote run-indication circuits that need two independent closed-on-run signals, for example feeding a PLC input and a local pilot light from the same event; pick the 2 NC LUFN02 when the signal instead needs to be true at standstill.

Specification

Full specification

24 values · Last verified 30 Oct 2026

Main 3

Range TeSys
Device short name LUFN
Product or Component Type Auxiliary contact

Complementary 7

Auxiliary contact composition 2 NO
[Ue] rated operational voltage <= 250 V AC, <= 250 V DC
[Ui] rated insulation voltage 250 V CSA, 250 V IEC 60947-5-1, 250 V UL
[Ith] conventional free air thermal current 5 A
Minimum switching voltage 17 V
minimum switching current 5 mA
Net Weight 0.11 lb(US) (0.05 kg)

Contractual warranty 1

Warranty (in months) 18
Show all 24 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number LUFN20
Type designation LUFN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110365160

Logistics 5

Country of origin FR
Shipping weight 0.05 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LUFN20

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LUFN

What is the rated current of LUFN?

The rated current of LUFN is 5 A.

Which supply voltage is LUFN rated for?

The rated operational voltage of LUFN is 250–DC V DC.

What is the HS code of LUFN for customs?

The tariff (HS) code on file for LUFN is 853650.

What is the EAN of LUFN?

The EAN (GTIN) of LUFN is 3389110365160.

Where does LUFN ship from, and how fast?

LUFN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
