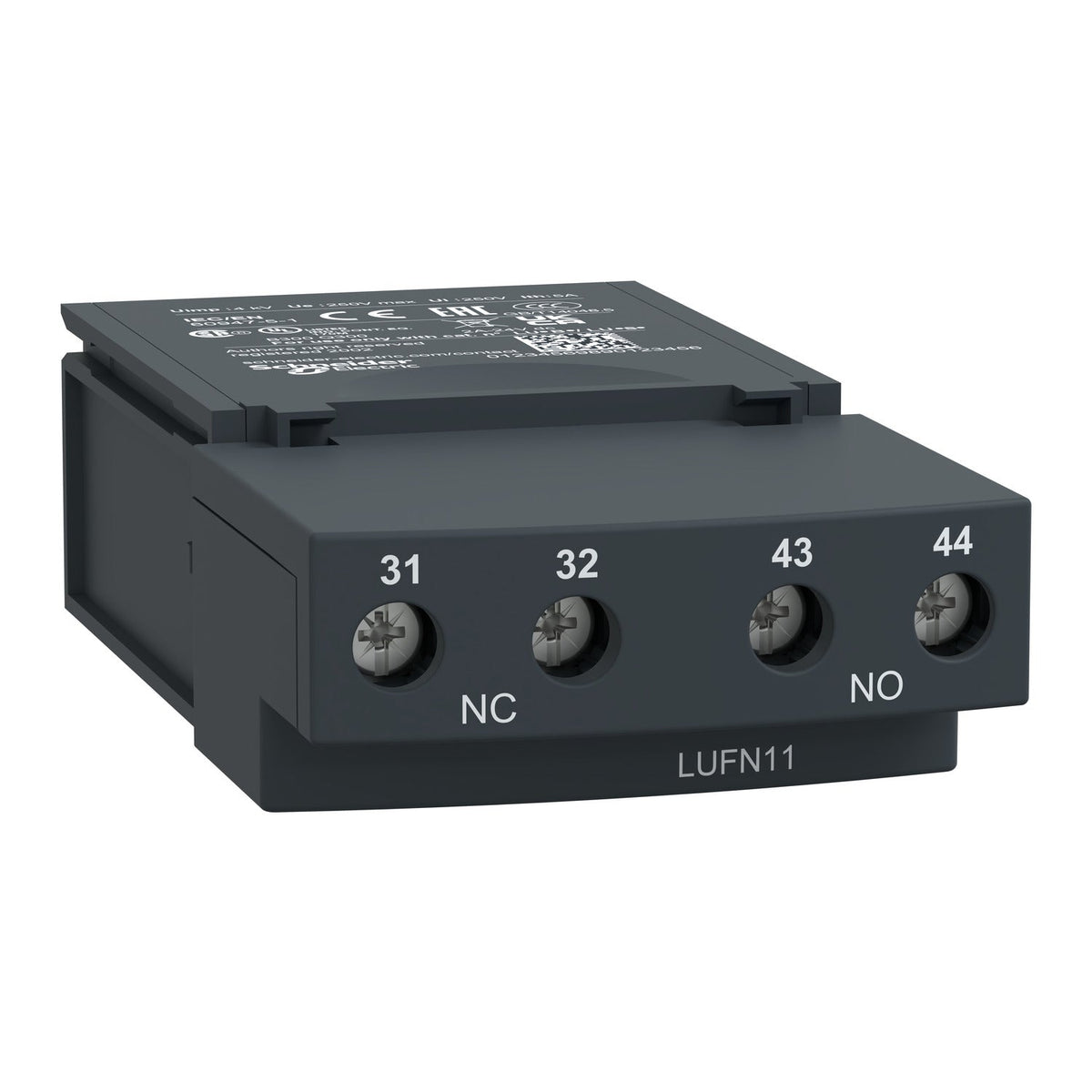

The Schneider Electric LUFN11 is a TeSys U auxiliary signaling contacts module that plugs into LUB12, LUB32, LUB38, LUB120, LUB320, or LUB380 power bases to report the ON/OFF running status of the motor regardless of rotation direction. It provides 1 NO + 1 NC instantaneous contacts rated 24-250 V AC/DC at up to 5 A, powered directly by the control unit.
The LUFN11's 1 NO + 1 NC combination lets one module drive a running lamp from the NO contact and a stopped/fault lamp from the NC contact at the same time, so it covers most panel indication needs without a second block; use the 2 NC LUFN02 or 2 NO LUFN20 only when both contacts must switch the same way.
| Range | TeSys |
|---|---|
| Device short name | LUFN |
| Product or Component Type | Auxiliary contact |
| Auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| [Ue] rated operational voltage | <= 250 V AC, <= 250 V DC |
| [Ui] rated insulation voltage | 250 V CSA, 250 V IEC 60947-5-1, 250 V UL |
| [Ith] conventional free air thermal current | 5 A |
| Minimum switching voltage | 17 V |
| minimum switching current | 5 mA |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | LUFN11 |
|---|---|
| Type designation | LUFN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110365177 |
| Country of origin | FR |
|---|---|
| Shipping weight | 0.05 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LUFN is 5 A.
The rated operational voltage of LUFN is 250–DC V DC.
The tariff (HS) code on file for LUFN is 853650.
The EAN (GTIN) of LUFN is 3389110365177.
LUFN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
