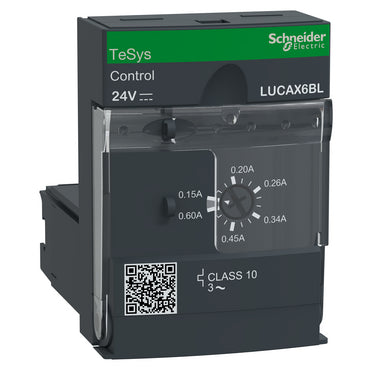

Schneider Electric LUCAX6BL TeSys U Standard Control Unit 0.15-0.6 A 24 V DC Motor Starter Module

TeSys U standard control unit, 0.15-0.6 A adjustable, Class 10, 24 V DC coil

Rated current
0.6 A
EAN
3389110363814
Description

About the LUCA

The Schneider Electric LUCAX6BL is a TeSys U standard control unit providing adjustable thermal-magnetic motor protection from 0.15 to 0.6 A, the lowest current band in the TeSys U control-unit range. Plugged into a LUB12, LUB32, or LUB38 power base, it forms a complete starter-controller with Class 10 overload tripping, phase-failure sensing, and earth-fault detection for 3-phase motors up to 0.09 kW at 400 V, controlled from a 24 V DC supply.

Certifications & Standards

  • CE
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

At 0.15-0.6 A, the LUCAX6BL is the finest-adjustment control unit in the TeSys U range, intended for small single-phase or fan-load motors around 0.09 kW rather than general industrial loads. It still plugs into the same LUB12/32/38 bases as the higher-current units, so the base selection is driven by fault-current coordination, not the motor size. Step up to the LUCA1XBL once the motor's current exceeds 0.6 A.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 19

Range TeSys
Range of Product TeSys Ultra
Product name TeSys Ultra
Device short name LUCA
Product or Component Type Standard control unit
Device Application Motor control, Motor protection
Product Specific Application Basic protection requirements for motor starters: overload and short-circuit
main function available Earth fault protection, Protection against overload and short-circuit, Protection against phase failure and phase imbalance, Manual reset
Product compatibility Power base LUB12, Power base LUB32, Power base LUB38, Power base LUB120, Power base LUB320, Power base LUB380, Reversing contactor breaker LU2B12BL, Reversing contactor breaker LU2B32BL, Reversing contactor breaker LU2B38BL
[Ue] rated operational voltage 690 V AC
Network frequency 40...60 Hz
Load type 3-phase motor self-cooled
Utilisation category AC-43, AC-44, AC-41
Motor power kW 0.09 kW 400...440 V AC 50/60 Hz
rated motor current adjustment range 0.15…0.6 A
Thermal overload class Class 10 40…60 Hz -13…158 °F (-25…70 °C) IEC 60947-6-2, Class 10 40…60 Hz -13…158 °F (-25…70 °C) UL 508
Tripping threshold 14.2 x Ir +/- 20 %
Phase failure sensitivity Yes
[Uc] control circuit voltage 24 V DC

Complementary 15

Control circuit voltage limits 20...27 V DC 24 V in operation, 14.5 V DC 24 V drop-out
Typical current consumption 130 mA 24 V DC I maximum while closing with LUB12, 220 mA 24 V DC I maximum while closing with LUB32, 220 mA 24 V DC I maximum while closing with LUB38, 60 mA 24 V DC I rms sealed with LUB12, 80 mA 24 V DC I rms sealed with LUB32, 80 mA 24 V DC I rms sealed with LUB38
Heat dissipation 2 W control circuit with LUB12, 3 W control circuit with LUB32, 3 W control circuit with LUB38
Operating time 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB12 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit
Standards EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
Product Certifications CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ui] rated insulation voltage 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-6-2
Safe separation of circuit 400 V SELV between the control and auxiliary circuits IEC 60947-1, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Fixing mode Plug-in (front face)
Width 1.8 in (45 mm)
Height 2.6 in (66 mm)
Depth 2.4 in (60 mm)
Net Weight 0.298 lb(US) (0.135 kg)
Compatibility code LUCA

Environment 14

IP degree of protection IP20 front panel and wired terminals IEC 60947-1, IP20 other faces IEC 60947-1, IP40 front panel outside connection zone IEC 60947-1
Protective treatment TH IEC 60068
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Operating altitude 6561.68 ft (2000 m)
Fire resistance 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12
Shock resistance 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
Vibration resistance 2 gn 5…300 Hz power poles open IEC 60068-2-6, 4 gn 5…300 Hz power poles closed IEC 60068-2-6
Resistance to electrostatic discharge 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
Resistance to radiated fields 9.1 V/m (10 V/m) 3 IEC 61000-4-3
Resistance to fast transients 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Immunity to radioelectric fields 10 V IEC 61000-4-6
Immunity to microbreaks 3 ms
Immunity to voltage dips 70 % / 500 ms IEC 61000-4-11
Show all 62 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LUCAX6BL
Type designation LUCA
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110363814

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.135 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
