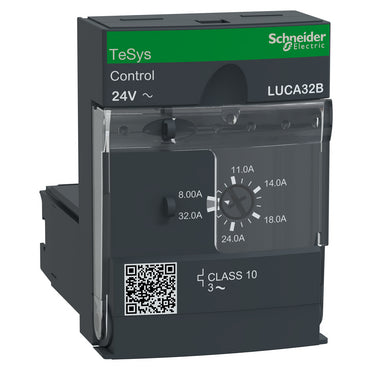

Schneider Electric LUCA32B TeSys U Standard Control Unit 8-32 A 24 V AC Motor Starter Module

The Schneider Electric LUCA32B is a TeSys U standard control unit providing adjustable thermal-magnetic motor protection from 8 to 32 A. Plugged into a LUB32 or LUB38 power base, it forms a complete starter-controller with Class 10 overload tripping, phase-failure sensing, and earth-fault detection for 3-phase motors up to 15 kW at 400 V, controlled from a 24 V AC supply.

Technical Specifications

Certifications & Standards

• CE
• UL
• CSA
• CCC
• EAC
• IEC 60947-6-2
• UL 60947-4-1
• CSA C22.2 No 60947-4-1

Selection Notes

The LUCA32B tops out the 8-32 A band, fitting the LUB32's full 32 A rating while also plugging into the higher-current LUB38 base for coordination flexibility. Its 15 kW rating at 400 V matches the LUB32 base's own motor-power ceiling, so there is no protection margin lost by using this control unit at the top of its range. Move to the LUCA38BL if the motor's full-load current exceeds 32 A, noting that reference only ships with a 24 V DC coil.
