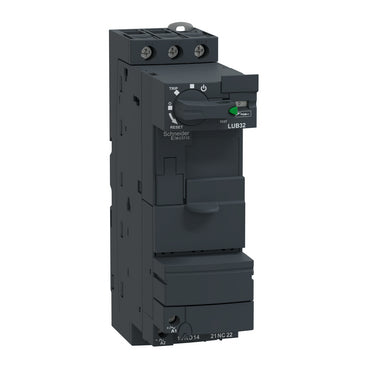

The Schneider Electric LUB32 is a TeSys U non-reversing power base rated 32 A at up to 440 V AC, forming the power-contact stage of a modular motor starter-controller. Fitted with a padlockable rotary handle and blanking shutters, it accepts a plug-in LUCA, LUCB, or LUCL control unit to complete protection for 3-phase motors up to 15 kW at 400 V.
At 32 A, the LUB32 is the largest TeSys U base that still carries the full 50 kA breaking capacity at 440 V; stepping up to the 38 A LUB38 trades that margin for a lower 25 kA rating. Specify the LUB32 wherever prospective short-circuit current at the installation point is high and the motor load stays at or below 15 kW at 400 V. It accepts the same LUCA, LUCB, and LUCL control units as the smaller LUB12 base.
| Range | TeSys |
|---|---|
| Product name | TeSys Ultra |
| Device short name | LUB |
| Product or Component Type | Non reversing power base |
| Device Application | Motor control, Motor protection |
| Poles description | 3P |
| Suitability for isolation | Yes |
| [Ue] rated operational voltage | 690 V AC power circuit |
| Network frequency | 40...60 Hz |
| [Ith] conventional free air thermal current | 32 A |
| [Ie] rated operational current | 32 A <= 440 V, 23 A 500 V, 21 A 690 V |
| Utilisation category | AC-43, AC-44, AC-41 |
| [Ics] rated service breaking capacity | 50 kA 230 V, 50 kA 440 V, 10 kA 500 V, 4 kA 690 V |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Linked contacts 1 NO + 1 NC) IEC 60947-4-1, Mirror contact 1 NC) IEC 60947-1 |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz, 24 V DC, 48...72 V AC 50/60 Hz, 48...72 V DC, 110...240 V AC 50/60 Hz, 110...220 V DC |
| Typical current consumption | 200 mA 24 V DC I maximum while closing with LUCM, 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 25 mA 110...220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 25 mA 110...240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 280 mA 110...220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA 110...240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA 48...72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 280 mA 48...72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD, 45 mA 48...72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD, 45 mA 48...72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 75 mA 24 V DC I rms sealed with LUCM, 80 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD, 90 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD |
|---|---|
| Heat dissipation | 3 W control circuit with LUCA, LUCB, LUCC, LUCD, 1.8 W control circuit with LUCM |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Operating time | 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit, 50 ms >= 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit, 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit, 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit, 65 ms closing with LUCM control circuit |
| Mechanical durability | 15 Mcycles |
| maximum operating rate | 3600 cyc/h |
| Product Certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 3), 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N |
| Fixing mode | Clipped (DIN rail), Screw-fixed (plate) |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Control circuit: screw clamp terminals 2 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.02 in² (1…10 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 0.004…0.02 in² (2.5…10 mm²) flexible without cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) rigid, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) flexible without cable end |
| Tightening torque | Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips no 1 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm) |
| Width | 1.8 in (45 mm) |
| Height | 6.06 in (154 mm) |
| Depth | 5.0 in (126 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) |
| Compatibility code | LUB |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone) |
|---|---|
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12 |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Vibration resistance | 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2 |
| Non-dissipating shock wave | 1 kV serial mode 24...240 V AC IEC 60947-6-2, 1 kV serial mode 48...220 V DC IEC 60947-6-2, 2 kV common mode 24...240 V AC IEC 60947-6-2, 2 kV common mode 48...220 V DC IEC 60947-6-2 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 3 IEC 61000-4-3 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Immunity to microbreaks | 3 ms control circuit |
| Immunity to voltage dips | 70 % / 500 ms IEC 61000-4-11 |
| Part number | LUB32 |
|---|---|
| Type designation | LUB |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110362787 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
