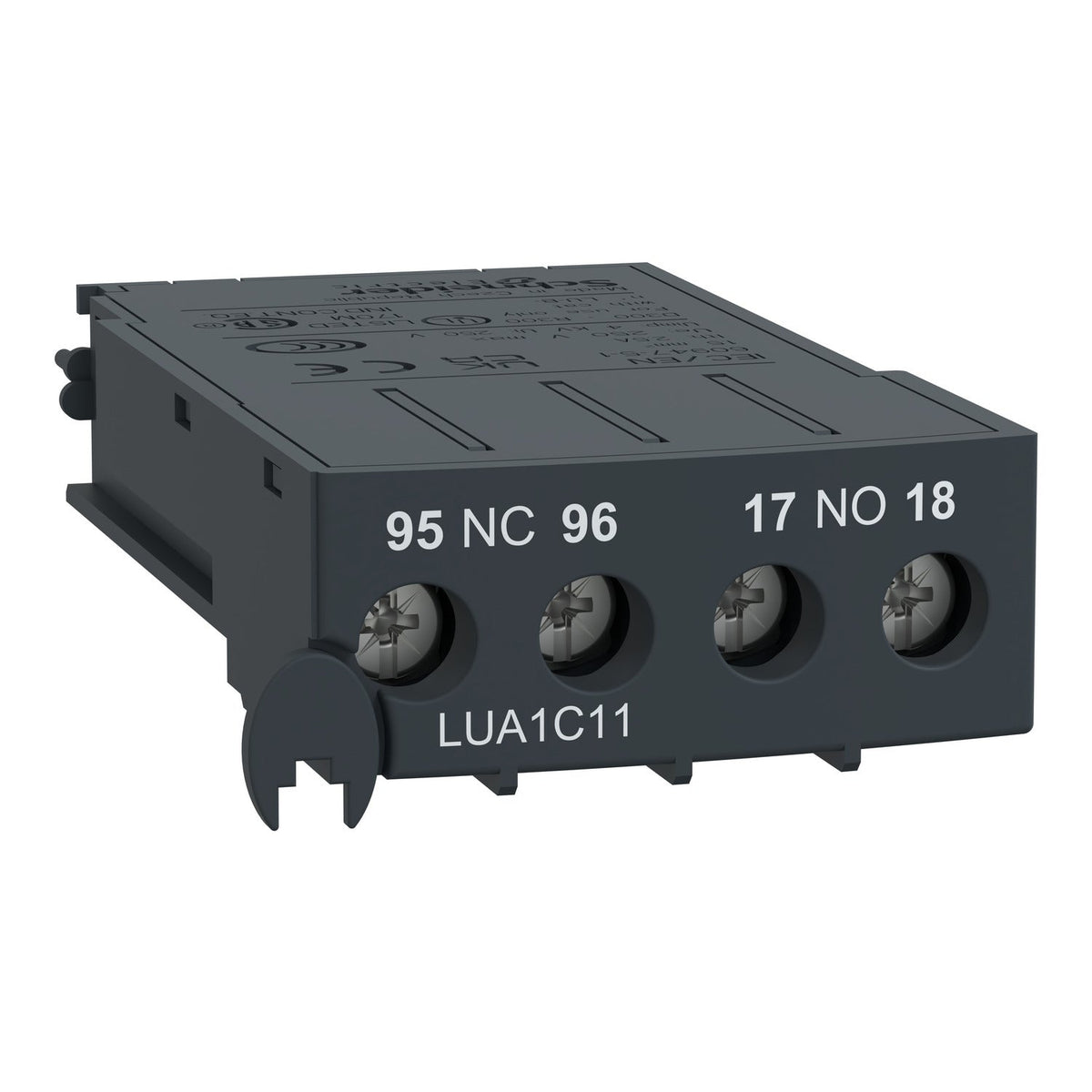

Schneider Electric LUA1C11 TeSys U auxiliary contact block, 1 NO + 1 NC

Schneider Electric LUA1C11 TeSys U Auxiliary Signalling Contacts 1 NO + 1 NC Auxiliary Contact Block

Name: Schneider Electric LUA1C11 TeSys U Auxiliary Signalling Contacts 1 NO + 1 NC Auxiliary Contact Block
Brand: Schneider Electric
SKU: LUA1C11
Price: 15.66 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: LUA1C11

Catalog No: LUA1C11

Tariff Code (HS): 853650

Rated Current: 2.5 A

Rated Voltage: 250 V AC

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$15.66

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric LUA1C11 is a TeSys U auxiliary signalling contact block with a 1 NO + 1 NC contact composition, rated up to 5 A at 250 V AC/DC. It inserts into the dedicated slot of a TeSys U power base and provides fault signalling (SD contact) and ready-position indication (OF contact) as one normally-open and one normally-closed signal.

Technical Specifications

Reference	LUA1C11
Brand	Schneider Electric
Range	TeSys
GTIN	3389110367317
Device Short Name	LUA1
Product or Component Type	Auxiliary contact
Auxiliary Contact Composition	1 NO + 1 NC
Signalling Function	Fault signalling, indicating rotary knob in ready position
Rated Operational Voltage (Ue)	≤ 250 V AC, ≤ 250 V DC
Rated Insulation Voltage (Ui)	250 V
Conventional Free Air Thermal Current (Ith)	2.5 A
Minimum Switching Voltage	17 V
Minimum Switching Current	5 mA
Connections	Screw clamp terminals
Net Weight	0.03 kg
Country of Origin	Czech Republic

Selection Notes

The 1NO+1NC composition reports the open/closed status (OF contact) as normally-open and the tripping status (SD contact) as normally-closed, giving a fail-safe trip signal that drops out on wire-break - choose the 2NO composition instead when the upstream controller reads all auxiliary feedback as normally-open inputs.

Technical Details

Short Description

TeSys U auxiliary signalling contact block, 1 NO + 1 NC, 5 A 250 V AC/DC

Rated Current (Ampere)

2.5 A

Rated Voltage (VAC)

250 V AC

Mounting Type

Insert into power base

Catalog No

LUA1C11

Delivery Date (Days)

30 days

Model Number

LUA1

Tariff Code

853650
