Schneider Electric LU9MR1C TeSys U Pre-Wired Control Connector Reversing Automation Component

% $-22.72

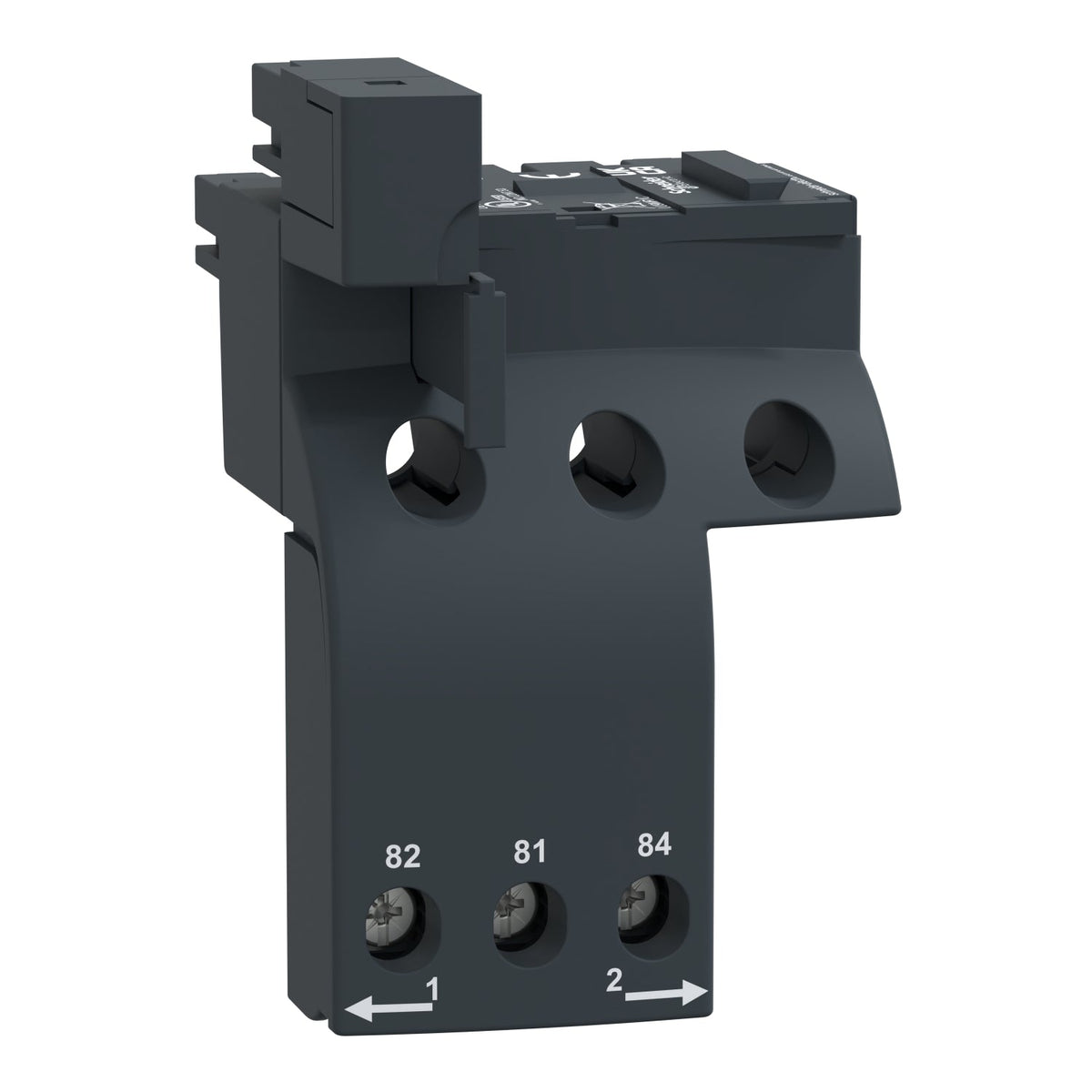

Schneider Electric LU9MR1C TeSys U pre-wired reversing connector
Schneider Electric LU9MR1C TeSys U pre-wired reversing connector

Schneider Electric LU9MR1C TeSys U Pre-Wired Control Connector Reversing Automation Component

Brand: Schneider Electric
Reference No: LU9MR1C
Catalog No: LU9MR1C
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$22.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LU9MR1C is a TeSys U control-circuit pre-wired connector that joins a reverser block LU2M* to a LUB120, LUB320 or LUB380 power base in vertical mounting. It provides screw clamp terminals for the FW/RV/OFF control circuit across both directions of rotation.

Technical Specifications

Reference LU9MR1C
Brand Schneider Electric
Range TeSys
GTIN 3389110367614
Device Short Name LU9MR
Product or Component Type Pre-wired connector
Function FW/RV/OFF control circuit wiring, 2 directions of rotation
Assembles Reverser block LU2M* to power base LUB120 / LUB320 / LUB380
Included With Reversing power base LU2B12, LU2B32, LU2B38
Tightening Torque, Control Circuit 0.8-1.2 N.m, flat or Philips No 2 screwdriver, 5 mm
Net Weight 0.035 kg
Country of Origin Czech Republic

Certifications & Standards

  • UL 60947-4-1

Selection Notes

It ships already included with the reversing power bases LU2B12, LU2B32 and LU2B38, so a separate order is only needed when assembling a reversing starter from individual vertical mount modules - a standard LUB power base plus an LU2M* reverser block - rather than buying the all-in-one LU2B reversing power base.

Technical Details

Short Description
TeSys U pre-wired control connector for reversing starters, FW/RV/OFF
Mounting Type
Vertical mounting assembly
Catalog No
LU9MR1C
Delivery Date (Days)
30 days
Model Number
LU9MR
Tariff Code
853890
