Schneider Electric LU9G02 TeSys U Splitter Block 8 RJ45 24 V DC Automation Component

% $-122.41

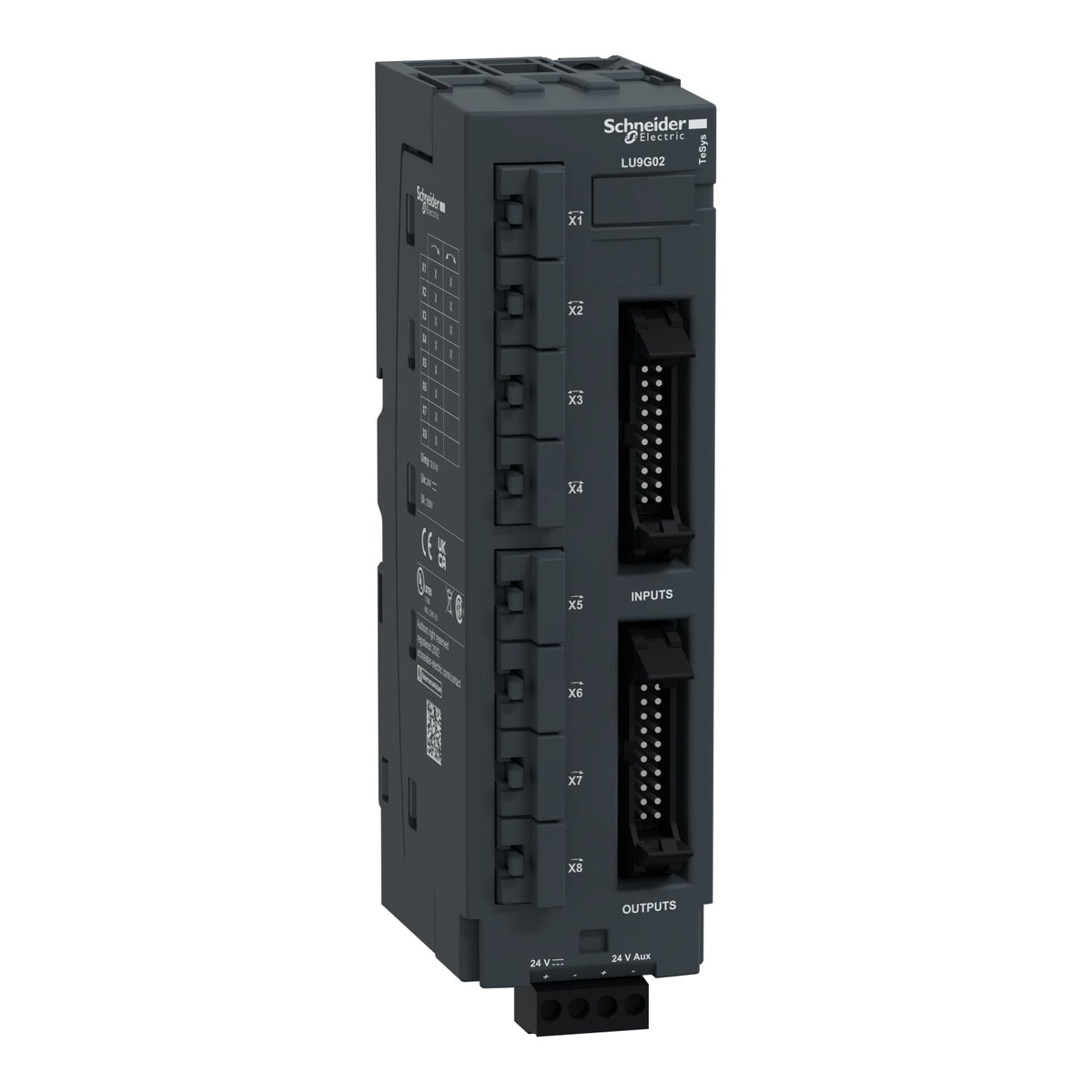

Schneider Electric LU9G02 TeSys U splitter block - 8 RJ45
Schneider Electric LU9G02 TeSys U splitter block - 8 RJ45

Schneider Electric LU9G02 TeSys U Splitter Block 8 RJ45 24 V DC Automation Component

Brand: Schneider Electric
Reference No: LU9G02
Catalog No: LU9G02
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$122.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LU9G02 is a TeSys U splitter box with 8 RJ45 ports and 2 HE10 connectors on the PLC side, powered at 24 V DC. It fans a single controller connection out to as many as 8 direct TeSys Ultra starter-controllers, or 4 if any of them are reversing types.

Technical Specifications

Reference LU9G02
Brand Schneider Electric
Range TeSys
GTIN 3389110110029
Device Short Name LU9G
Product or Component Type Splitter block
Maximum Starters 8 direct starters / 4 reversing starters
Connectors 8 RJ45 (starter side), 2 HE10 (PLC side)
Rated Supply Voltage (Us) 24 V DC
Net Weight 0.26 kg

Selection Notes

Budget starter count by type: each reversing starter-controller uses two of the splitter's RJ45 ports, which is why the LU9G02 supports only 4 reversing units against 8 direct units on the same box. Pair it with LU9R03/LU9R10/LU9R30 connection cables (0.3 m, 1 m, 3 m) to reach each starter-controller from the splitter.

Technical Details

Short Description
TeSys U splitter box, 8 RJ45 ports, 24 V DC, up to 8 direct starters
Catalog No
LU9G02
Delivery Date (Days)
30 days
Model Number
LU9G
Tariff Code
853890
