Part number
LU6MB0ES
Model no
LU6MB
$232.76 On request Dispatch — · From TürkiyeGet a Quote

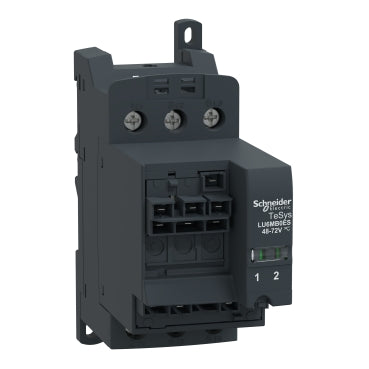

Schneider Electric LU6MB0ES TeSys U Reverser Block for Side Mounting 32 A 48 V AC Coil Motor Starter Module

TeSys U reverser block for side mounting, 32 A at 690 V, 48-72 V AC/DC coil

Rated current
32 A
Rated operational voltage
48 V AC
Poles
3P
EAN
3389110106657
Description

About the LU6MB

The Schneider Electric LU6MB0ES is a TeSys U reverser block for side mounting, rated 32 A at 690 V with a 48 V AC / 48-72 V DC coil, adding reversing contacts and interlocking to an advanced LUB120 or LUB320 power base fitted with a LUC*ES control unit. Combined with an LU9MR1 assembling connector and LU9M1 terminal block, it completes a side-mounted reversing starter-controller.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The LU6MB0ES covers the mid control-voltage band, 48 V AC or 48-72 V DC, which neither the 24 V LU6MB0B/LU6MB0BL nor the 110-240 V LU6MB0FU serve, letting one block cover both a 48 V AC and a 48-72 V DC supply without separate references. It otherwise shares the LU6MB family's 32 A rating and side-mount footprint, so pick the 38 A LU6MB0FU only if both the higher current and a 110-240 V control supply are needed together.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 8

Range TeSys
Device short name LU6MB
Product or Component Type Reverser block
Device mounting Separate mounting
Device Application Motor control
[Ie] rated operational current 32 A
[Uc] control circuit voltage 48 V AC 50/60 Hz, 48...72 V DC
Current consumption 2300 mA 48 V AC I maximum while closing, 2300 mA 48...72 V DC I maximum while closing

Complementary 16

[Ue] rated operational voltage 690 V AC power circuit
Network frequency 40...60 Hz
Inrush restraint duration 25 ms AC, 15 ms DC
Operating time 150 ms with change of direction, 75 ms without change of direction
Standards EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
Product Certifications CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ui] rated insulation voltage 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kVIEC 60947-6-2
Fixing mode Clipped (DIN rail), Screw-fixed (plate)
Connections - terminals Control circuit screw clamp terminals 1 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid, Control circuit screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid, Power circuit screw clamp terminals 1 0.002…0.02 in² (1…10 mm²) 0.2 in (4 mm)) rigid, Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) 0.2 in (4 mm)) flexible without cable end, Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) rigid, Power circuit screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) 0.2 in (4 mm)) flexible without cable end
Tightening torque Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips No 2 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm)
Width 1.8 in (45 mm)
Height 4.5 in (115 mm)
Depth 4.4 in (113 mm)
Net Weight 0.937 lb(US) (0.425 kg)
Compatibility code LU6MB

Environment 13

IP degree of protection IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone)
Protective treatment TH IEC 60068
Ambient air temperature for operation -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD
Ambient air temperature for storage -40…185 °F (-40…85 °C)
Fire resistance 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12
Operating altitude 6561.68 ft (2000 m)
Shock resistance 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
Vibration resistance 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27
Resistance to electrostatic discharge 8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
Resistance to radiated fields 9.1 V/m (10 V/m) level 3 IEC 61000-4-3
Resistance to fast transients 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Non-dissipating shock wave 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
Immunity to radioelectric fields 10 V IEC 61000-4-6
Show all 62 specifications ↓ Show less ↑25 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LU6MB0ES
Type designation LU6MB
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110106657

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.402 in (6.100 cm)
Package 1 Width 5.118 in (13.000 cm)
Package 1 Length 5.512 in (14.000 cm)
Package weight(Lbs) 15.344 oz (435.000 g)
Unit Type of Package 2 S02
Number of Units in Package 2 10
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 10.201 lb(US) (4.627 kg)
Shipping weight 0.425 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LU6MB0ES

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • CCC
  • EAC
  • Marine
  • EN 60947-6-2
  • IEC 60947-6-2
  • UL 60947-4-1
  • with phase barrier
Quick answers

Questions about the LU6MB

What is the rated current of LU6MB?

The rated current of LU6MB is 32 A.

Which supply voltage is LU6MB rated for?

The rated operational voltage of LU6MB is 48 V AC.

What is the HS code of LU6MB for customs?

The tariff (HS) code on file for LU6MB is 853650.

What is the EAN of LU6MB?

The EAN (GTIN) of LU6MB is 3389110106657.

Where does LU6MB ship from, and how fast?

LU6MB ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
