Schneider Electric LU6MB0BL TeSys U Reverser Block for Side Mounting 38 A 24 V DC Coil Motor Starter Module

% $-227.43

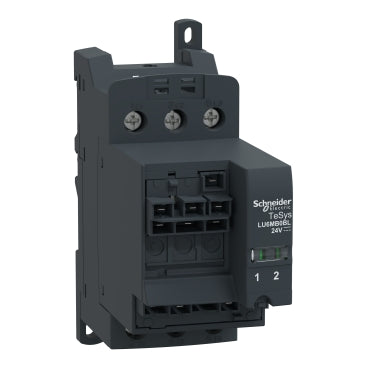

Schneider Electric LU6MB0BL TeSys U reverser block - 38 A 24V DC motor starter module
Schneider Electric LU6MB0BL TeSys U reverser block - 38 A 24V DC motor starter module

Schneider Electric LU6MB0BL TeSys U Reverser Block for Side Mounting 38 A 24 V DC Coil Motor Starter Module

Brand: Schneider Electric
Reference No: LU6MB0BL
Tariff Code (HS): 853650
Rated Current: 38 A
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$227.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LU6MB0BL is a TeSys U reverser block for side mounting, rated 38 A at 690 V with a 24 V DC coil, adding reversing contacts and interlocking to an advanced LUB120, LUB320, or LUB380 power base fitted with a LUC*BL control unit. Combined with an LU9MR1 assembling connector and LU9M1 terminal block, it completes a side-mounted reversing starter-controller.

Technical Specifications

Reference LU6MB0BL
GTIN 3389110106183
Brand Schneider Electric
Range TeSys U
Product or Component Type Reverser block
Device Mounting Separate mounting (side)
Rated Operational Current (Ie) 38 A
Rated Operational Voltage (Ue, power circuit) 690 V AC
Control Circuit Voltage (Uc) 24 V DC
Current Consumption (while closing) 120 mA at 24 V DC
Operating Time 150 ms with direction change, 75 ms without
Rated Insulation Voltage (Ui) 690 V
Fixing Mode DIN rail (clipped) or screw-fixed plate
Dimensions (W x H x D) 45 x 115 x 113 mm
Net Weight 0.425 kg
IP Degree of Protection IP20 (terminals), IP40 (outside connection zone)
Compatible Power Bases LUB120, LUB320, LUB380 with LUC*BL control unit
Required Accessories LU9MR1 assembling connector, LU9M1 terminal block

Certifications & Standards

  • CE
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The LU6MB0BL extends the side-mounted reverser block range to 38 A and to the LUB380 base, which the lower-current LU6MB0B does not cover. Its 24 V DC coil draws only 120 mA holding current against 2360 mA for the AC-coil LU6MB0B, a relevant difference when sizing the upstream control relay. Choose the vertical LU2MB0BL instead where panel depth favors vertical stacking over side mounting.

Technical Details

Short Description
TeSys U reverser block for side mounting, 38 A at 690 V, 24 V DC coil
Rated Current (Ampere)
38 A
Mounting Type
DIN rail (clipped) or screw-fixed plate
Protection Type
IP20 (terminals), IP40 (outside connection zone)
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LU6MB
Tariff Code
853650
