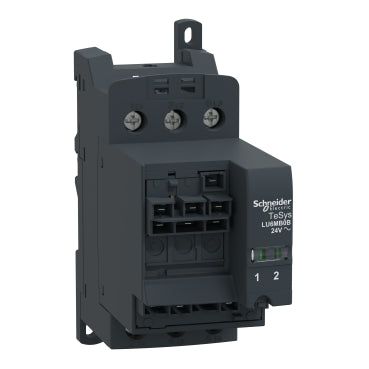

Schneider Electric LU6MB0B TeSys U Reverser Block for Side Mounting 32 A 24 V AC Coil Motor Starter Module

% $-227.43
Schneider Electric LU6MB0B TeSys U reverser block - 32 A 24V AC motor starter module
Schneider Electric LU6MB0B TeSys U reverser block - 32 A 24V AC motor starter module

Schneider Electric LU6MB0B TeSys U Reverser Block for Side Mounting 32 A 24 V AC Coil Motor Starter Module

Brand: Schneider Electric
Reference No: LU6MB0B
Tariff Code (HS): 853650
Rated Current: 32 A
Rated Voltage: 24 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$227.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LU6MB0B is a TeSys U reverser block for side mounting, rated 32 A at 690 V with a 24 V AC coil, adding reversing contacts and interlocking to an advanced LUB120 or LUB320 power base fitted with a LUC*B control unit. Combined with an LU9MR1 assembling connector and LU9M1 terminal block, it completes a side-mounted reversing starter-controller.

Technical Specifications

Reference LU6MB0B
GTIN 3389110107050
Brand Schneider Electric
Range TeSys U
Product or Component Type Reverser block
Device Mounting Separate mounting (side)
Rated Operational Current (Ie) 32 A
Rated Operational Voltage (Ue, power circuit) 690 V AC
Control Circuit Voltage (Uc) 24 V AC, 50/60 Hz
Current Consumption (while closing) 2360 mA at 24 V AC
Operating Time 150 ms with direction change, 75 ms without
Rated Insulation Voltage (Ui) 690 V
Fixing Mode DIN rail (clipped) or screw-fixed plate
Dimensions (W x H x D) 45 x 115 x 113 mm
Net Weight 0.425 kg
IP Degree of Protection IP20 (terminals), IP40 (outside connection zone)
Compatible Power Bases LUB120, LUB320 with LUC*B control unit
Required Accessories LU9MR1 assembling connector, LU9M1 terminal block

Certifications & Standards

  • CE
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The LU6MB0B is the side-mounted counterpart to the vertical LU2MB0B, using its own DIN-rail footprint and the LU9MR1 connector rather than LU9MR1C, which suits panels where depth behind the power base is limited. Match its 24 V AC coil to the control unit's supply voltage; use LU6MB0BL for 24 V DC control instead.

Technical Details

Short Description
TeSys U reverser block for side mounting, 32 A at 690 V, 24 V AC coil
Rated Current (Ampere)
32 A
Rated Voltage (VAC)
24 V AC
Mounting Type
DIN rail (clipped) or screw-fixed plate
Protection Type
IP20 (terminals), IP40 (outside connection zone)
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
LU6MB
Tariff Code
853650
