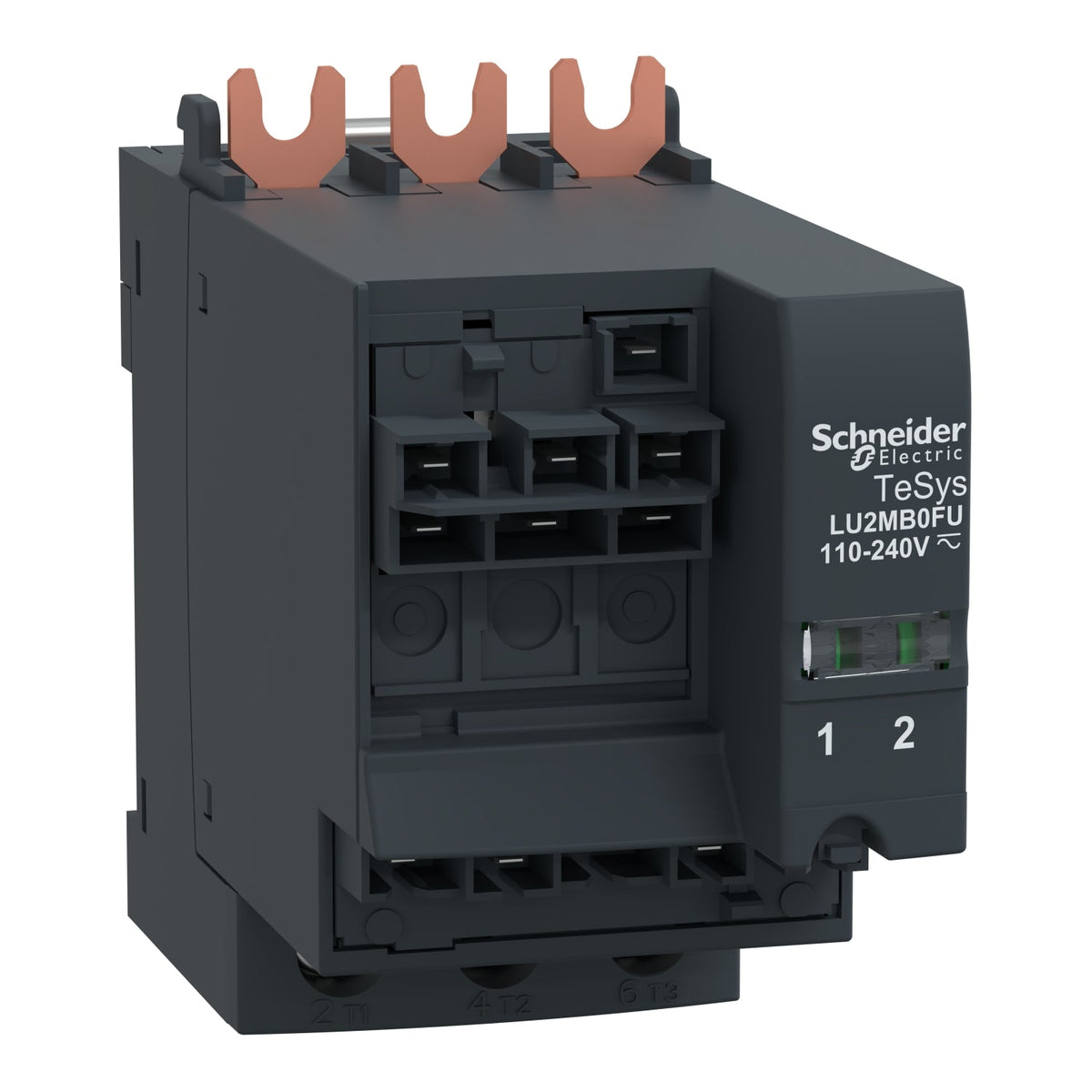

The Schneider Electric LU2MB0FU is a TeSys U reverser block rated 38 A, with a 110-240 V AC / 110-220 V DC control coil. It mounts vertically on a LUB120, LUB320 or LUB380 advanced power base to build a TeSys U reversing starter controller, providing the reverse power contacts and coil interlocking for 2-direction motor control.
Unlike the LU2B integrated reversing power base, the LU2MB0FU is a separate module that pairs with a LUB120, LUB320 or LUB380 power base for vertical mounting - choose this route when the panel layout already standardizes on individual LUB bases and adds reversing capability selectively. It requires the assembling connector LU9MR1C and control terminal block LU9M1 to complete the vertical-mount wiring, and only accepts LUC*FU control units on its 110-240 V AC/DC coil; a 48-72 V AC/DC coil version of the same reverser block covers panels with that control voltage instead.
| Range | TeSys |
|---|---|
| Device short name | LU2MB |
| Product or Component Type | Reverser block |
| Device mounting | Direct mounting |
| Device Application | Motor control |
| [Ie] rated operational current | 38 A |
| [Uc] control circuit voltage | 110...240 V AC 50/60 Hz, 110...220 V DC |
| Current consumption | 1000 mA 110...220 V DC I maximum while closing, 1000 mA 110...240 V AC I maximum while closing |
| [Ue] rated operational voltage | 690 V AC power circuit |
|---|---|
| Network frequency | 40...60 Hz |
| Inrush restraint duration | 25 ms AC, 15 ms DC |
| Operating time | 150 ms with change of direction, 75 ms without change of direction |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| Product Certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Fixing mode | Plug-in |
| Connections - terminals | Control circuit screw clamp terminals 1 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid, Control circuit screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid, Power circuit screw clamp terminals 1 0.002…0.02 in² (1…10 mm²) 0.2 in (4 mm)) rigid, Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) 0.2 in (4 mm)) flexible without cable end, Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) rigid, Power circuit screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) 0.2 in (4 mm)) flexible without cable end |
| Tightening torque | Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips No 2 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.1 in (80 mm) |
| Depth | 4.1 in (105 mm) |
| Net Weight | 0.9 lb(US) (0.4 kg) |
| Compatibility code | LU2MB |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone) |
|---|---|
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12 |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Vibration resistance | 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) level 3 IEC 61000-4-3 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Non-dissipating shock wave | 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Part number | LU2MB0FU |
|---|---|
| Type designation | LU2MB |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110363807 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
