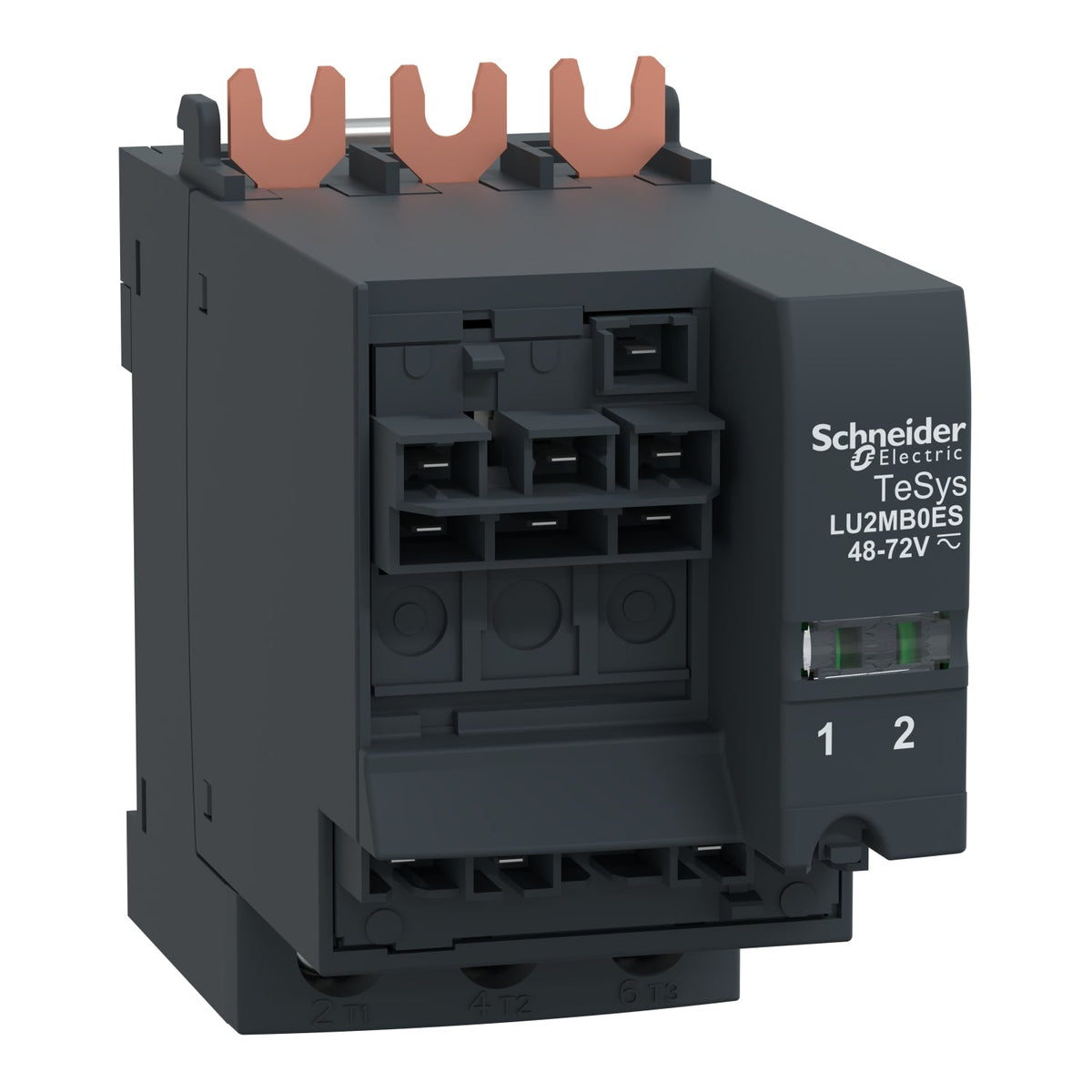

The Schneider Electric LU2MB0ES is a TeSys U reverser block rated 32 A, with a 48 V AC / 48-72 V DC control coil. It mounts vertically on a LUB120 or LUB320 advanced power base to build a TeSys U reversing starter controller, providing the reverse power contacts and coil interlocking for 2-direction motor control.
Unlike the LU2B integrated reversing power base, the LU2MB0ES is a separate module that pairs with a standard LUB120 or LUB320 power base for vertical mounting - choose this route when the panel layout already standardizes on individual LUB bases and adds reversing capability selectively. It requires the assembling connector LU9MR1C and control terminal block LU9M1 to complete the vertical-mount wiring, and only accepts LUC*ES control units on its 48-72 V AC/DC coil; a 110-240 V AC/DC coil version of the same reverser block covers panels with that control voltage instead.
| Range | TeSys |
|---|---|
| Device short name | LU2MB |
| Product or component type | Reverser block |
| Device mounting | Direct mounting |
| Device application | Motor control |
| [Ie] rated operational current | 32 A |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz, 48...72 V DC |
| Current consumption | 2300 mA at 48 V AC I maximum while closing, 2300 mA at 48...72 V DC I maximum while closing |
| [Ue] rated operational voltage | 690 V AC power circuit |
|---|---|
| Network frequency | 40...60 Hz |
| Inrush restraint duration | 25 ms AC, 15 ms DC |
| Operating time | 150 ms with change of direction, 75 ms without change of direction |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| Product certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-6-2, 600 V conforming to UL 60947-4-1, 600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| Fixing mode | Plug-in |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end, Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end, Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid, Control circuit: screw clamp terminals 2 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid, Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² (external diameter: 4 mm) rigid, Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm² (external diameter: 4 mm) flexible without cable end, Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end, Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) rigid, Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm² (external diameter: 4 mm) flexible without cable end |
| Tightening torque | Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm, Control circuit: 0.8…1.2 N.m Philips No 2 screwdriver 5 mm, Power circuit: 1.9…2.5 N.m flat screwdriver 6 mm, Power circuit: 1.9…2.5 N.m Philips No 2 screwdriver 6 mm |
| Width | 45 mm |
| Height | 80 mm |
| Depth | 105 mm |
| Net weight | 0.4 kg |
| Compatibility code | LU2MB |
| IP degree of protection | IP20 conforming to IEC 60947-1 (front panel and wired terminals), IP20 conforming to IEC 60947-1 (other faces), IP40 conforming to IEC 60947-1 (front panel outside connection zone) |
|---|---|
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -25…60 °C with LUCM, -25…70 °C with LUCA, LUCB, LUCC, LUCD |
| Ambient air temperature for storage | -40…85 °C |
| Fire resistance | 960 °C parts supporting live components conforming to IEC 60695-2-12, 650 °C conforming to IEC 60695-2-12 |
| Operating altitude | 2000 m |
| Shock resistance | 10 gn power poles open conforming to IEC 60068-2-27, 15 gn power poles closed conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27, 4 gn (f= 5…300 Hz) power poles closed conforming to IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV level 3, in open air conforming to IEC 61000-4-2, 8 kV level 4, on contact conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m level 3 conforming to IEC 61000-4-3 |
| Resistance to fast transients | 2 kV class 3 serial link conforming to IEC 61000-4-4, 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| Non-dissipating shock wave | 1 kV serial mode conforming to IEC 60947-6-2, 2 kV common mode conforming to IEC 60947-6-2 |
| Immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| Part number | LU2MB0ES |
|---|---|
| Type designation | LU2MB |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13 cm |
| Package 1 Width | 5.5 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 387 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.959 kg |
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
