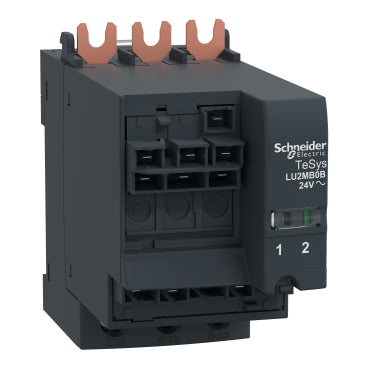

The Schneider Electric LU2MB0B is a TeSys U reverser block for vertical mounting, rated 32 A at 690 V with a 24 V AC coil, adding reversing contacts and interlocking to an advanced LUB120 or LUB320 power base fitted with a LUC*B control unit. Combined with an LU9MR1C assembling connector and LU9M1 terminal block, it turns a standard starter-controller into a reversing one.
The LU2MB0B adds reversing to a vertically-mounted LUB120/LUB320 advanced power base without replacing it, provided the installation already uses the vertical LU9MR1C connector arrangement rather than the side-mounted LU9MR1 used with the LU6MB family. Its 24 V AC coil must match the control unit's supply; pick the LU2MB0BL variant instead where the panel standardizes on 24 V DC control.
| Range | TeSys |
|---|---|
| Device short name | LU2MB |
| Product or Component Type | Reverser block |
| Device mounting | Direct mounting |
| Device Application | Motor control |
| [Ie] rated operational current | 32 A |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Current consumption | 2360 mA 24 V AC I maximum while closing |
| [Ue] rated operational voltage | 690 V AC power circuit |
|---|---|
| Network frequency | 40...60 Hz |
| Inrush restraint duration | 25 ms AC, 15 ms DC |
| Operating time | 150 ms with change of direction, 75 ms without change of direction |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| Product Certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Fixing mode | Plug-in |
| Connections - terminals | Control circuit screw clamp terminals 1 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 1 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid, Control circuit screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²) 0.1 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 2 0.001…0.002 in² (0.75…1.5 mm²) 0.1 in (3 mm)) rigid, Power circuit screw clamp terminals 1 0.002…0.02 in² (1…10 mm²) 0.2 in (4 mm)) rigid, Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) 0.2 in (4 mm)) flexible without cable end, Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 2 0.002…0.009 in² (1…6 mm²) 0.2 in (4 mm)) rigid, Power circuit screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) 0.2 in (4 mm)) flexible without cable end |
| Tightening torque | Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips No 2 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.1 in (80 mm) |
| Depth | 4.1 in (105 mm) |
| Net Weight | 0.9 lb(US) (0.4 kg) |
| Compatibility code | LU2MB |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone) |
|---|---|
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12 |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Vibration resistance | 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) level 3 IEC 61000-4-3 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Non-dissipating shock wave | 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Part number | LU2MB0B |
|---|---|
| Type designation | LU2MB |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110363784 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
