Part number
LU2B38BL
Model no
LU2B
$458.98 On request Dispatch — · From TürkiyeGet a Quote

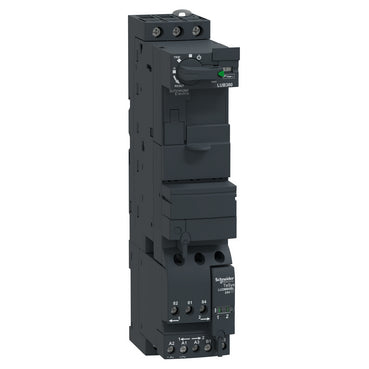

Schneider Electric LU2B38BL TeSys U Reversing Power Base 3P 38 A 24 V DC Coil Motor Starter Module

TeSys U reversing power base, 3P, 38 A, 24 V DC coil, 25 kA Icu at 440 V

Rated current
38 A
Description

About the LU2B

The Schneider Electric LU2B38BL is a TeSys U reversing power base rated 38 A, built around a 24 V DC coil and the LU2MB0BL reverser module to switch 3-phase motors up to 18.5 kW at 400 V in either direction. Completed with a plug-in LUC control unit, it forms a full reversing starter-controller on a single 45 mm DIN-rail footprint.

Certifications & Standards

  • CE
  • UL
  • CSA
  • CCC
  • EAC
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The LU2B38BL extends the TeSys U reversing base range to 38 A and 18.5 kW at 400 V, but its breaking capacity drops to 25 kA at 440 V, half that of the 32 A LU2B32BL, so check this against the installation's prospective short-circuit current. It packages the reversing contacts, 24 V DC coil, and interlocking in the base itself, saving a separate external reversing contactor.

Specification

Full specification

76 values · Last verified 30 Oct 2026

Main 18

Range TeSys
Product name TeSys Ultra
Device short name LU2B
Product or component type Reversing power base
Device application Motor control, Motor protection
Product compatibility Control unit LUC.X6BL, Control unit LUC.1XBL, Control unit LUC.05BL, Control unit LUC.12BL, Control unit LUC.18BL, Control unit LUC.32BL, Control unit LUC.38BL
Poles description 3P
Suitability for isolation Yes
[Ue] rated operational voltage 690 V AC for power circuit
Network frequency 40...60 Hz
[Ith] conventional free air thermal current 38 A
[Ie] rated operational current 35 A at <= 440 V, 28 A at 500 V, 24 A at 690 V
Utilisation category AC-43, AC-41
[Ics] rated service breaking capacity 25 kA at 230 V, 25 kA at 440 V, 10 kA at 500 V, 4 kA at 690 V
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1, type mirror contact (1 NC) conforming to IEC 60947-1
[Uc] control circuit voltage 24 V DC
Control circuit voltage limits 14.5 V DC drop-out, 20...27 V DC in operation

Complementary 20

Typical current consumption 120 mA at 24 V DC I maximum while closing, 120 mA at 24 V DC I rms sealed
Heat dissipation 3 W for control circuit with LUCA, LUCB, LUCC, LUCD, 1.8 W for control circuit with LUCM
Inrush restraint duration 15 ms DC
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Operating time 150 ms with change of direction for power circuit, 75 ms without change of direction for power circuit, 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM for control circuit, 75 ms closing with LUCM for control circuit, 70 ms closing with LUCA, LUCB, LUCC, LUCD for control circuit
Mechanical durability 15 Mcycles
maximum operating rate 3600 cyc/h
Product certifications CE, UL, CSA, CCC, EAC
Standards EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
[Ui] rated insulation voltage 690 V conforming to IEC 60947-6-2 (pollution degree 3), 600 V conforming to UL 60947-4-1, 600 V conforming to CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-6-2
Safe separation of circuit 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N
Fixing mode Clipped (DIN rail), Screw-fixed (plate)
Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² flexible with cable end, Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² flexible without cable end, Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² rigid, Control circuit: screw clamp terminals 2 cable(s) 0.34…1.5 mm² flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² rigid, Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² rigid, Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm² flexible without cable end, Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² flexible with cable end, Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² rigid, Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm² flexible without cable end
Tightening torque Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm, Control circuit: 0.8…1.2 N.m Philips no 1 screwdriver 5 mm, Power circuit: 1.9…2.5 N.m flat screwdriver 6 mm, Power circuit: 1.9…2.5 N.m Philips No 2 screwdriver 6 mm, Power circuit: 1.9…2.5 N.m pozidriv No 2 screwdriver 6 mm
Width 45 mm
Height 224 mm
Depth 126 mm
Net weight 1.27 kg
Compatibility code LU2B

Environment 14

IP degree of protection IP20 conforming to IEC 60947-1 (front panel and wired terminals), IP20 conforming to IEC 60947-1 (other faces), IP40 conforming to IEC 60947-1 (front panel outside connection zone)
Protective treatment TH conforming to IEC 60068
Ambient air temperature for operation -25…60 °C with LUCM, -25…70 °C with LUCA, LUCB, LUCC, LUCD
Ambient air temperature for storage -40…85 °C
Fire resistance 960 °C parts supporting live components conforming to IEC 60695-2-12, 650 °C conforming to IEC 60695-2-12
Operating altitude 2000 m
Shock resistance 10 gn power poles open conforming to IEC 60068-2-27, 15 gn power poles closed conforming to IEC 60068-2-27
Vibration resistance 2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27, 4 gn (f= 5…300 Hz) power poles closed conforming to IEC 60068-2-27
Resistance to electrostatic discharge 8 kV level 3 in open air conforming to IEC 61000-4-2, 8 kV level 4 on contact conforming to IEC 61000-4-2
Resistance to fast transients 2 kV class 3 serial link conforming to IEC 61000-4-4, 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4
Resistance to radiated fields 10 V/m 3 conforming to IEC 61000-4-3
Immunity to radioelectric fields 10 V conforming to IEC 61000-4-6
Immunity to microbreaks 3 ms for control circuit
Immunity to voltage dips 70 % / 500 ms conforming to IEC 61000-4-11
Show all 76 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LU2B38BL
Type designation LU2B
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 25.500 cm
Package 1 Width 5.500 cm
Package 1 Length 15.000 cm
Package 1 Weight 1.305 kg
Unit Type of Package 2 S03
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.085 kg
Shipping weight 1.27 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LU2B38BL

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • CCC
  • EAC
  • EN 60947-6-2
  • IEC 60947-6-2
  • UL 60947-4-1
  • with phase barrier
Quick answers

Questions about the LU2B

What is the rated current of LU2B?

The rated current of LU2B is 38 A.

What is the HS code of LU2B for customs?

The tariff (HS) code on file for LU2B is 853650.

Where does LU2B ship from, and how fast?

LU2B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
