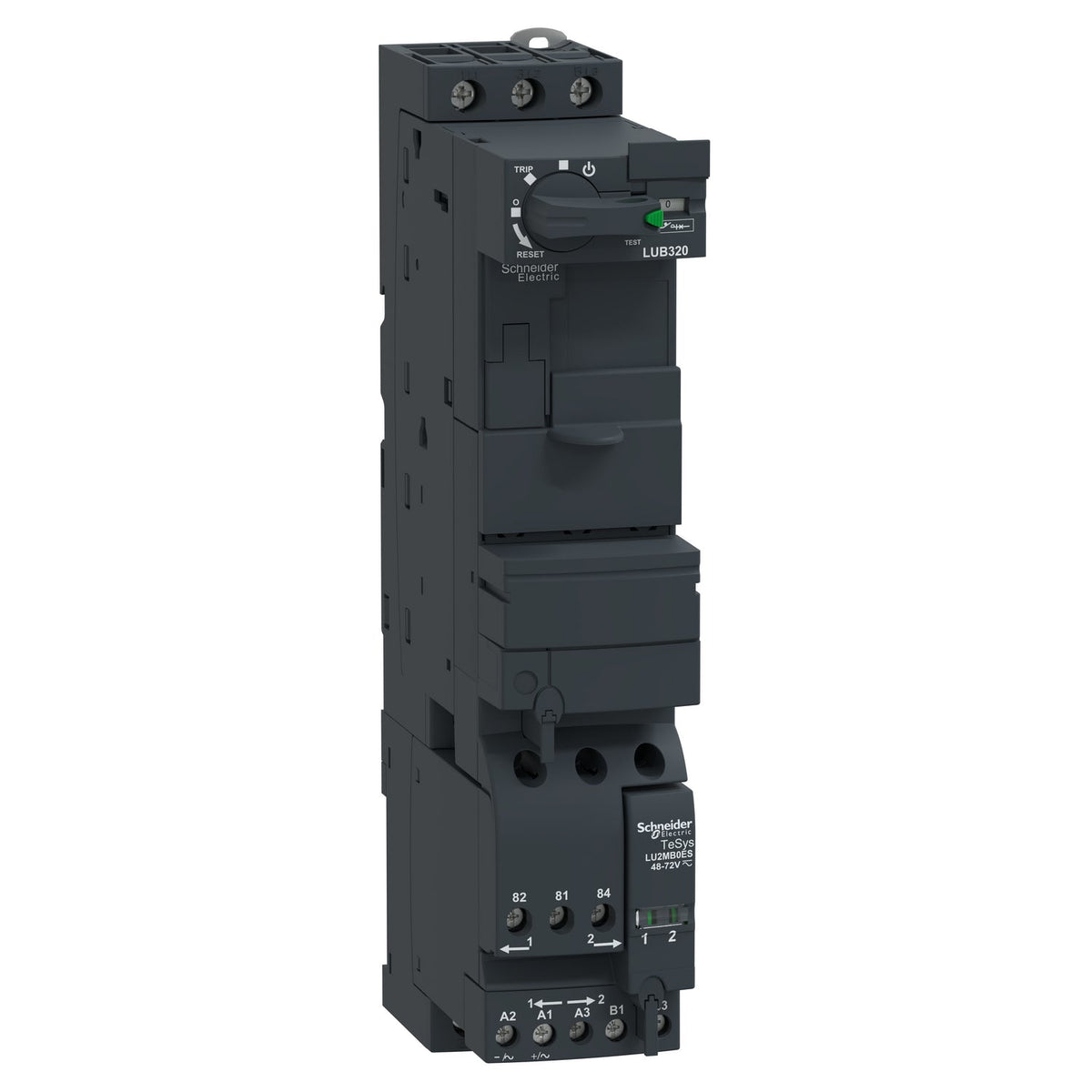

The Schneider Electric LU2B32ES is a TeSys U reversing power base rated 32 A at voltages up to 440 V (690 V maximum), with a 48-72 V AC/DC control coil. Combined with a LUC control unit it forms a reversing starter controller for 3-phase motors up to 15 kW at 400 V, with a 50 kA breaking capacity at 440 V.
The 32 A rated base suits motors whose full-load current approaches the upper end of its range at 400 V; for smaller motors the lower-rated LU2B12ES base keeps the same 45 mm footprint with a tighter adjustment window on the control unit. Breaking capacity of 50 kA at 440 V lets the base sit directly on a feeder without a separate upstream limiter in most panel designs. The 48-72 V AC/DC coil variant matches control circuits already wired at that band; a 110-240 V AC/DC coil variant of the same base covers panels with that control voltage instead.
| Range | TeSys |
|---|---|
| Product name | TeSys Ultra |
| Device short name | LU2B |
| Product or Component Type | Reversing power base |
| Device Application | Motor control, Motor protection |
| Product compatibility | Control unit LUC.X6ES, Control unit LUC.1XES, Control unit LUC.05ES, Control unit LUC.12ES, Control unit LUC.18ES, Control unit LUC.32ES |
| Poles description | 3P |
| Suitability for isolation | Yes |
| [Ue] rated operational voltage | 690 V AC power circuit |
| Network frequency | 40...60 Hz |
| [Ith] conventional free air thermal current | 32 A |
| [Ie] rated operational current | 32 A <= 440 V, 23 A 500 V, 21 A 690 V |
| Utilisation category | AC-43, AC-44, AC-41 |
| [Ics] rated service breaking capacity | 50 kA 230 V, 50 kA 440 V, 10 kA 500 V, 4 kA 690 V |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Linked contacts 1 NO + 1 NC) IEC 60947-4-1, Mirror contact 1 NC) IEC 60947-1 |
| [Uc] control circuit voltage | 48...72 V AC 50/60 Hz, 48...72 V DC |
| Control circuit voltage limits | 29 V AC drop-out, 29 V DC drop-out, 38.5...72 V AC in operation, 38.5...93 V DC in operation |
| Typical current consumption | 2300 mA 48...72 V DC I maximum while closing, 2300 mA 48...72 V AC I maximum while closing |
|---|---|
| Heat dissipation | 3 W control circuit with LUCA, LUCB, LUCC, LUCD, 1.8 W control circuit with LUCM |
| Inrush restraint duration | 25 ms AC 50/60 Hz, 15 ms DC |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Operating time | 150 ms with change of direction power circuit, 35 ms opening control circuit, 75 ms without change of direction power circuit, 60 ms closing control circuit |
| Mechanical durability | 15 Mcycles |
| maximum operating rate | 3600 cyc/h |
| Product Certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 3), 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N |
| Fixing mode | Clipped (DIN rail), Screw-fixed (plate) |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Control circuit: screw clamp terminals 2 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.02 in² (1…10 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 0.004…0.02 in² (2.5…10 mm²) flexible without cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) rigid, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) flexible without cable end |
| Tightening torque | Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips no 1 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm) |
| Width | 1.8 in (45 mm) |
| Height | 8.8 in (224 mm) |
| Depth | 5.0 in (126 mm) |
| Net Weight | 2.80 lb(US) (1.27 kg) |
| Compatibility code | LU2B |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone) |
|---|---|
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12 |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Vibration resistance | 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2 |
| Non-dissipating shock wave | 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 3 IEC 61000-4-3 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Immunity to microbreaks | 3 ms control circuit |
| Immunity to voltage dips | 70 % / 500 ms IEC 61000-4-11 |
| Part number | LU2B32ES |
|---|---|
| Type designation | LU2B |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110362992 |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 5.906 in (15.000 cm) |
| Package 1 Length | 9.843 in (25.000 cm) |
| Package weight(Lbs) | 2.846 lb(US) (1.291 kg) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 26.711 lb(US) (12.116 kg) |
| Shipping weight | 1.27 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LU2B is 32 A.
The rated operational voltage of LU2B is 48–72 V AC.
The tariff (HS) code on file for LU2B is 853650.
The EAN (GTIN) of LU2B is 3389110362992.
LU2B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
