Part number
LU2B12FU
Model no
LU2B
$375.33 On request Dispatch — · From TürkiyeGet a Quote

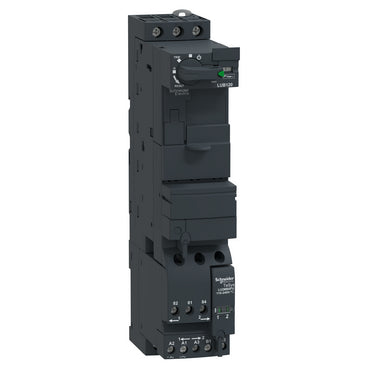

Schneider Electric LU2B12FU TeSys U Reversing Power Base 3P 12 A 110-240 V AC/DC Motor Starter Module

TeSys U reversing power base, 3P, 12 A at 440 V, 110-240 V AC/DC coil.

Rated current
12 A
Rated operational voltage
110–240–DC V DC
Poles
3P
EAN
3389110362961
Description

About the LU2B

The Schneider Electric LU2B12FU is a TeSys U standard reversing power base, 3-pole, rated 12 A at up to 440 V, that forms a complete reversing starter-controller once fitted with a LUC control unit and the matching 110-240 V AC / 110-220 V DC reverser module.

Certifications & Standards

  • CE
  • UL
  • CSA
  • CCC
  • EAC
  • ATEX
  • IEC 60947-6-2
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1

Selection Notes

The 12 A rating sets the motor size this power base can reverse; pick a LUC control unit from LUC.05FU, LUC.12FU, LUC.1XFU, LUC.X6FU to match the thermal/electronic protection class needed, since the power base alone has no overload protection of its own. The 110-240 V AC / 110-220 V DC reverser module must match the control transformer already feeding the panel — the power contacts, rotary handle and mounting are identical across every control-voltage variant of this base, only the coil input changes. The padlockable rotary handle gives a lockout-tagout isolation point that a plain contactor pair wired for reversing does not provide.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Main 18

Range TeSys
Product name TeSys Ultra
Device short name LU2B
Product or Component Type Reversing power base
Device Application Motor control, Motor protection
Product compatibility Control unit LUC.X6FU, Control unit LUC.1XFU, Control unit LUC.05FU, Control unit LUC.12FU
Poles description 3P
Suitability for isolation Yes
[Ue] rated operational voltage 690 V AC power circuit
Network frequency 40...60 Hz
[Ith] conventional free air thermal current 12 A
[Ie] rated operational current 12 A <= 440 V, 12 A 500 V, 9 A 690 V
Utilisation category AC-43, AC-44, AC-41
[Ics] rated service breaking capacity 50 kA 230 V, 50 kA 440 V, 10 kA 500 V, 4 kA 690 V
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type Linked contacts 1 NO + 1 NC) IEC 60947-4-1, Mirror contact 1 NC) IEC 60947-1
[Uc] control circuit voltage 110...240 V AC 50/60 Hz, 110...220 V DC
Control circuit voltage limits 55 V DC drop-out, 55 V AC drop-out, 88...242 V DC in operation, 88...264 V AC in operation

Complementary 20

Typical current consumption 1000 mA 110...220 V DC I maximum while closing, 1000 mA 110...240 V AC I maximum while closing
Heat dissipation 2 W control circuit with LUCA, LUCB, LUCC, LUCD, 1.7 W control circuit with LUCM
Inrush restraint duration 25 ms AC 50/60 Hz, 15 ms DC
Safety reliability level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Operating time 150 ms with change of direction power circuit, 35 ms opening control circuit, 75 ms without change of direction power circuit, 50 ms closing control circuit
Mechanical durability 15 Mcycles
maximum operating rate 3600 cyc/h
Product Certifications CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
Standards EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
[Ui] rated insulation voltage 690 V IEC 60947-6-2 3), 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage 6 kVIEC 60947-6-2
Safe separation of circuit 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Fixing mode Clipped (DIN rail), Screw-fixed (plate)
Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Control circuit: screw clamp terminals 2 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.02 in² (1…10 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 0.004…0.02 in² (2.5…10 mm²) flexible without cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) rigid, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) flexible without cable end
Tightening torque Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips no 1 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm)
Width 1.8 in (45 mm)
Height 8.8 in (224 mm)
Depth 5.0 in (126 mm)
Net Weight 2.80 lb(US) (1.27 kg)
Compatibility code LU2B

Environment 15

IP degree of protection IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone)
Protective treatment TH IEC 60068
Ambient air temperature for operation -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Fire resistance 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12
Operating altitude 6561.68 ft (2000 m)
Shock resistance 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
Vibration resistance 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27
Resistance to electrostatic discharge 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
Non-dissipating shock wave 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
Resistance to fast transients 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Resistance to radiated fields 9.1 V/m (10 V/m) 3 IEC 61000-4-3
Immunity to radioelectric fields 10 V IEC 61000-4-6
Immunity to microbreaks 3 ms control circuit
Immunity to voltage dips 70 % / 500 ms IEC 61000-4-11
Show all 67 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LU2B12FU
Type designation LU2B
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110362961

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 1.27 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LU2B12FU

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • CCC
  • EAC
  • Marine
  • EN 60947-6-2
  • IEC 60947-6-2
  • UL 60947-4-1
  • with phase barrier
Quick answers

Questions about the LU2B

What is the rated current of LU2B?

The rated current of LU2B is 12 A.

Which supply voltage is LU2B rated for?

The rated operational voltage of LU2B is 110–240–DC V DC.

What is the HS code of LU2B for customs?

The tariff (HS) code on file for LU2B is 853650.

What is the EAN of LU2B?

The EAN (GTIN) of LU2B is 3389110362961.

Where does LU2B ship from, and how fast?

LU2B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
