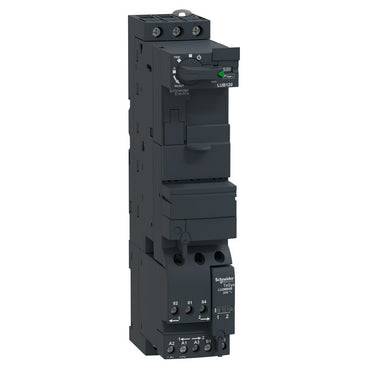

The Schneider Electric LU2B12B is a TeSys U standard reversing power base, 3-pole, rated 12 A at up to 440 V, that forms a complete reversing starter-controller once fitted with a LUC control unit and the matching 24 V AC 50/60 Hz reverser module.
The 12 A rating sets the motor size this power base can reverse; pick a LUC control unit from LUC.05B, LUC.12B, LUC.1XB, LUC.X6B to match the thermal/electronic protection class needed, since the power base alone has no overload protection of its own. The 24 V AC 50/60 Hz reverser module must match the control transformer already feeding the panel — the power contacts, rotary handle and mounting are identical across every control-voltage variant of this base, only the coil input changes. The padlockable rotary handle gives a lockout-tagout isolation point that a plain contactor pair wired for reversing does not provide.
| Range | TeSys |
|---|---|
| Product name | TeSys Ultra |
| Device short name | LU2B |
| Product or Component Type | Reversing power base |
| Device Application | Motor control, Motor protection |
| Product compatibility | Control unit LUC.X6B, Control unit LUC.1XB, Control unit LUC.05B, Control unit LUC.12B |
| Poles description | 3P |
| Suitability for isolation | Yes |
| [Ue] rated operational voltage | 690 V AC power circuit |
| Network frequency | 40...60 Hz |
| [Ith] conventional free air thermal current | 12 A |
| [Ie] rated operational current | 12 A <= 440 V, 12 A 500 V, 9 A 690 V |
| Utilisation category | AC-43, AC-44, AC-41 |
| [Ics] rated service breaking capacity | 50 kA 230 V, 50 kA 440 V, 10 kA 500 V, 4 kA 690 V |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Linked contacts 1 NO + 1 NC) IEC 60947-4-1, Mirror contact 1 NC) IEC 60947-1 |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Control circuit voltage limits | 14.5 V AC drop-out, 20...26.5 V AC in operation |
| Typical current consumption | 2360 mA 24 V AC I maximum while closing |
|---|---|
| Heat dissipation | 2 W control circuit with LUCA, LUCB, LUCC, LUCD, 1.7 W control circuit with LUCM |
| Inrush restraint duration | 25 ms AC 50/60 Hz |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Operating time | 150 ms with change of direction power circuit, 35 ms opening control circuit, 70 ms closing control circuit, 75 ms without change of direction power circuit |
| Mechanical durability | 15 Mcycles |
| maximum operating rate | 3600 cyc/h |
| Product Certifications | CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| [Ui] rated insulation voltage | 690 V IEC 60947-6-2 3), 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N |
| Fixing mode | Clipped (DIN rail), Screw-fixed (plate) |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 1 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Control circuit: screw clamp terminals 2 cable(s) 0.0005…0.002 in² (0.34…1.5 mm²) flexible with cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) flexible without cable end, Control circuit: screw clamp terminals 2 cable(s) 0.001…0.002 in² (0.75…1.5 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.02 in² (1…10 mm²) rigid, Power circuit: screw clamp terminals 1 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 1 cable(s) 0.004…0.02 in² (2.5…10 mm²) flexible without cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) flexible with cable end, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1…6 mm²) rigid, Power circuit: screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) flexible without cable end |
| Tightening torque | Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) flat screwdriver 0.2 in (5 mm), Control circuit: 7.08…10.6 lbf.in (0.8…1.2 N.m) Philips no 1 screwdriver 0.2 in (5 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) flat screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm), Power circuit: 16.8…22.1 lbf.in (1.9…2.5 N.m) pozidriv No 2 screwdriver 0.2 in (6 mm) |
| Width | 1.8 in (45 mm) |
| Height | 8.8 in (224 mm) |
| Depth | 5.0 in (126 mm) |
| Net Weight | 2.80 lb(US) (1.27 kg) |
| Compatibility code | LU2B |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone) |
|---|---|
| Protective treatment | TH IEC 60068 |
| Ambient air temperature for operation | -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12 |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Vibration resistance | 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2 |
| Non-dissipating shock wave | 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2 |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) 3 IEC 61000-4-3 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Immunity to microbreaks | 3 ms control circuit |
| Immunity to voltage dips | 70 % / 500 ms IEC 61000-4-11 |
| Part number | LU2B12B |
|---|---|
| Type designation | LU2B |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110362947 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 1.27 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LU2B is 12 A.
The rated operational voltage of LU2B is 24 V AC.
The tariff (HS) code on file for LU2B is 853650.
The EAN (GTIN) of LU2B is 3389110362947.
LU2B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
