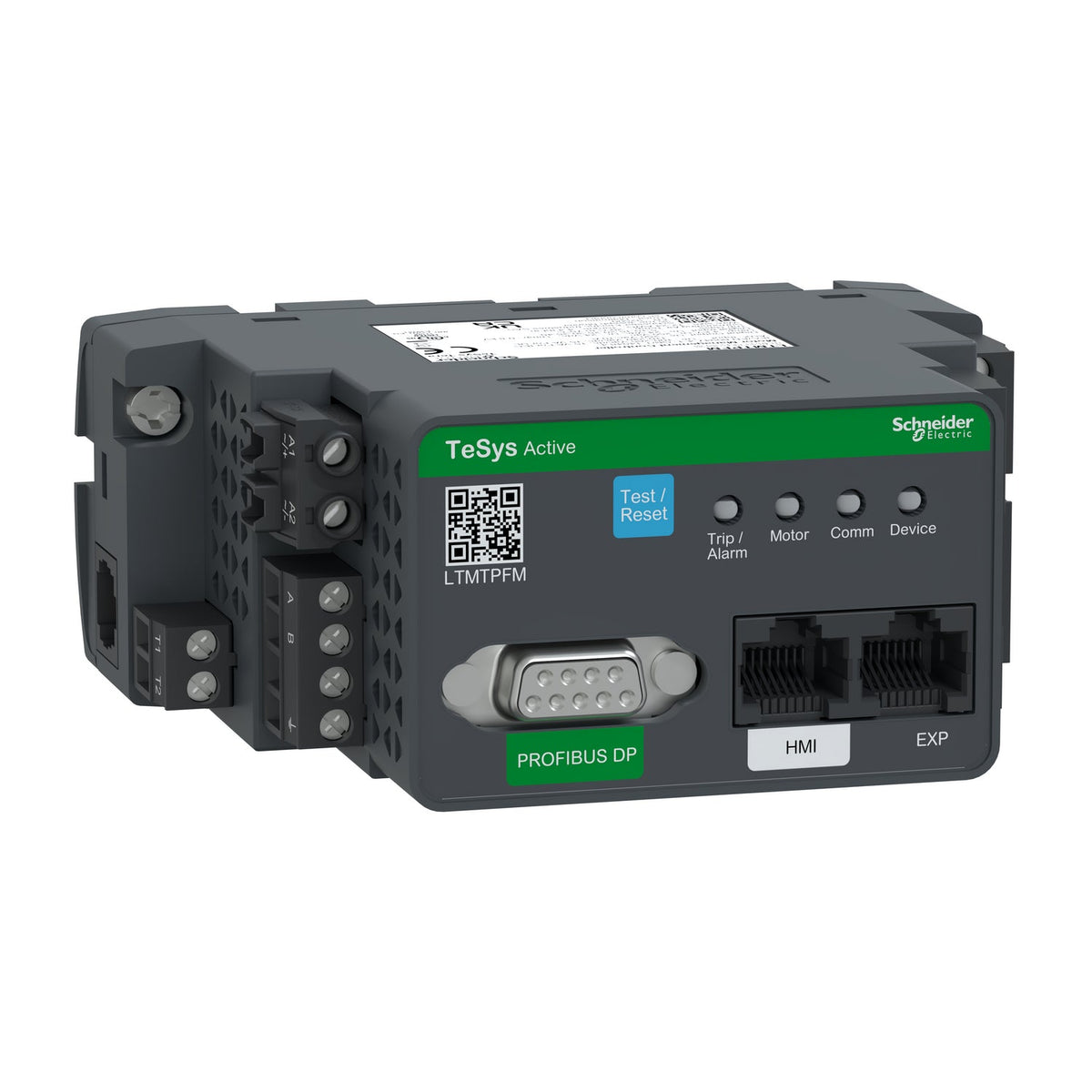

The Schneider Electric LTMTPFM is a TeSys Tera main motor management controller communicating over Profibus DP, powered at 100-240 V AC/DC, providing full protection, control and monitoring of single-phase and three-phase AC induction motors when paired with a TeSys Tera sensor module and a contactor.
The PFM is the Profibus DP variant on a wide 100-240 V AC/DC supply; choose the PBD sibling instead where a 24 V DC control supply is already available, or the EBD/EFM/MBD variants for Ethernet TCP/IP or Modbus RTU networks.
| Range | TeSys |
|---|---|
| Product name | TeSys Tera |
| Device short name | LTMT |
| Product or Component Type | Motor controller |
| Device Application | Equipment monitoring and control |
| [Us] rated supply voltage | 100...240 V AC/DC 50/60 Hz |
| Current Consumption | 8...62.8 mA |
| Supply voltage limits | 85…265 V AC/DC |
| Communication Port Protocol | Profibus DP |
| Bus type | Profibus DP 2-wire RS 485 1...125 9.6 kbit/s...12 Mbit/s, SUB-D 9 2 shielded twisted pairs, Profibus DP 2-wire RS 485 1...125 1.5 Mbit/s, terminal block 2 shielded twisted pairs |
| [Ui] rated insulation voltage | 250 V AC IEC 60185 |
|---|---|
| Short-circuit withstand | 100 kA |
| Pollution degree | 3 |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Associated fuse rating | 0.5 A gG control circuit |
| Protection Type | Thermal overload protection, Thermal motor protection via the drive by continuous calculation of I²t, Stalled rotor, Phase unbalance, Phase loss, Phase reversal, Ground fault protection, Undervoltage, Overvoltage, Under power/over power, Load shedding scheme, Voltage dip management, Max number of start, Excessive starting time, locked rotor, Power factor variation |
| Network and machine diagnosis type | Event recording, Remaining operating time before overload tripping, Waiting time after overload tripping, Running hours counter/operating time, Trip history information, Starting current and time, Phase fault and earth fault trip counters, Motor statistics, Controller operations, Start curve showing motor start record, Pre-alarm of potential faults |
| Logic input number | 4 |
| Input current | 3 mA 100...240 V |
| Current state 0 guaranteed | Digital input 0...60 V 5 mA 10 ms |
| Current state 1 guaranteed | Digital input 85...265 V 5 mA 10 ms |
| maximum output switching frequency | 2 Hz |
| Load current | 10 A 250 V AC/DC, 5 A 30 V DC |
| Permissible power | 480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output) |
| maximum operating rate | 1800 cyc/h |
| Contacts type and composition | 2 NO fault signal, 1 NO + 1 NC fault signal |
| Metering type | Thermal memory, Line, phase and average current, Line to line and average voltage, Motor temperature input, Ground fault current Ig, Active and reactive power, Active and reactive energy, Frequency, Total voltage harmonic distortion THD (V), Total voltage harmonic distortion THD (U), Total current harmonic distortion THD (I), Phase sequence |
| Measurement accuracy | 1 % current 0.3...3 A), 1 % current 2.5...25 A), 3 % current 7...70 A), 3 % current 10...100 A), 1 % voltage 110...690 V), +/- 2.5 % earth fault current external measurement, +/- 3...5 % earth fault current internal measurement current > 0.03 A in the 0.3...3 A range), +/- 3...5 % earth fault current internal measurement current > 0.25 A in the 2.5...25 A range), +/- 3...5 % earth fault current internal measurement current > 0.7 A in the 7...70 A range), +/- 3...5 % earth fault current internal measurement current > 1 A in the 10...100 A range), +/- 2 % Temperature, +/- 2 % THD measurement, +/- 3...6 % power factor, +/- 2...5 % active and reactive energy, +/- 30 min/year internal clock |
| Connection pitch | 0.3 in (7.5 mm) for supply voltage, 0.2 in (5.0 mm) for others |
| Connections - terminals | Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible with ferrule with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible with ferrule with cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end, Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)solid with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) 24 AWG...14 AWG)solid with cable end |
| Tightening torque | Control circuit 4.4 lbf.in (0.5 N.m) flat 0.1 in (3 mm) |
| Width | 4.4 in (112 mm) |
| Height | 1.8 in (45 mm) |
| Depth | 3.5 in (90 mm) |
| Web services | Web server |
| Standards | EN/IEC 60947-4-1, UL/CSA 60947-4-1 |
|---|---|
| Product Certifications | UL, IEC, cUL |
| Fire resistance | 1202 °F (650 °C) IEC 60947-1, 1760 °F (960 °C) UL 94 |
| Ambient air temperature for operation | -4…158 °F (-20…70 °C) |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) without derating |
| Mechanical robustness | Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-27, Vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6, Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 |
| IP Degree of Protection | IP20 |
| Part number | LTMTPFM |
|---|---|
| Type designation | LTMT |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482184732 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IN |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
