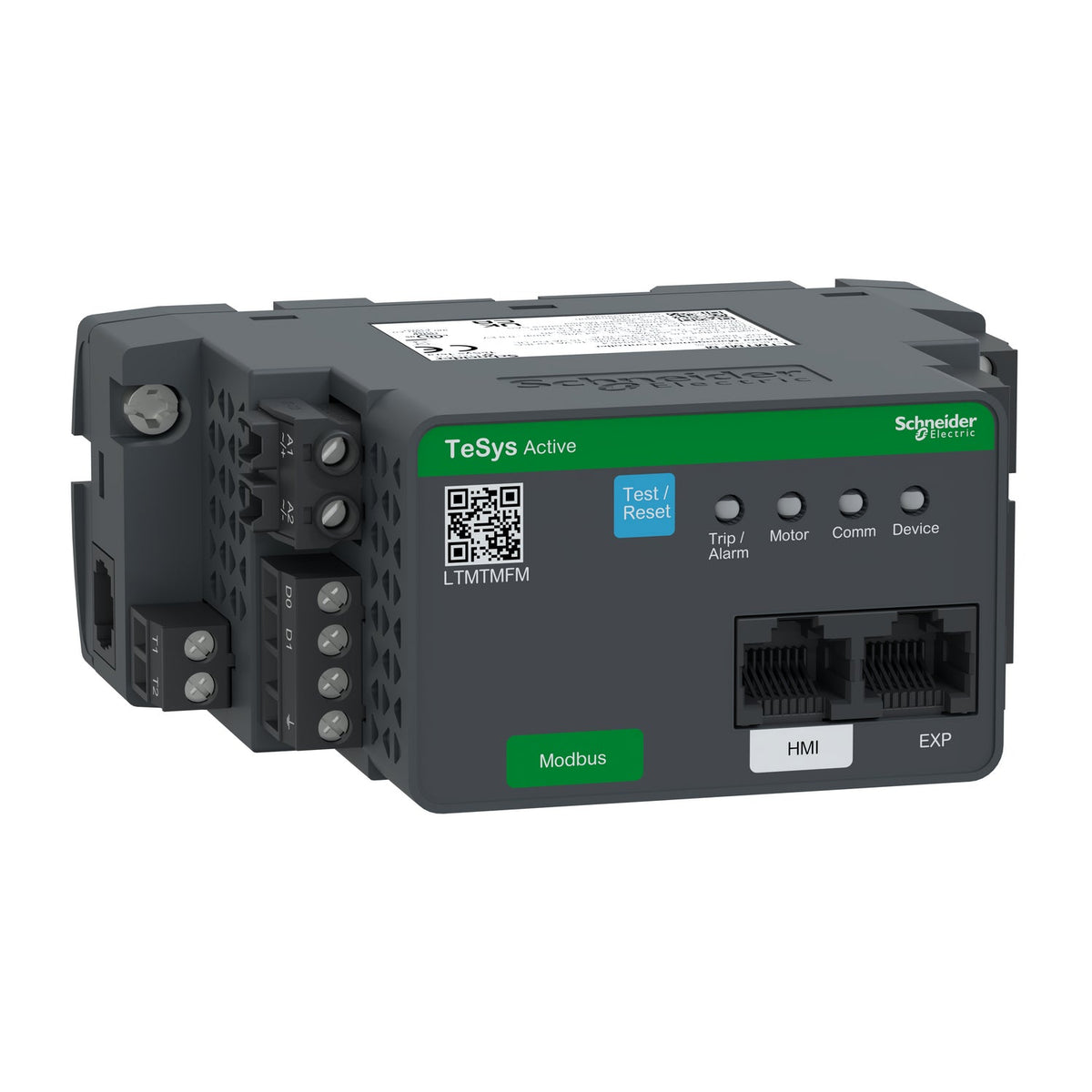

The Schneider Electric LTMTMFM is the main unit of the TeSys Tera motor management system, providing electronic protection, control, and monitoring for single-phase and three-phase AC induction motors up to 810 A. It is powered by 100-240 V AC/DC, communicates over Modbus RTU, and carries 4 digital inputs plus 3 digital outputs for control and fault signalling.
The main unit carries the Modbus RTU communication port and the protection/metering logic itself, so the current range for the motor it supervises is set by the separately selected current transformer or sensor module rather than by this unit's own terminals. The built-in web server and running-hours/trip-history logging make it the choice over a standalone electronic overload relay when the installation already runs a Modbus RTU network and needs motor statistics rather than a simple trip contact.
Motor control centers and switchboards where single- and three-phase induction motors up to 810 A need centralized protection, remote monitoring over Modbus RTU, and detailed trip and starting-event history for maintenance planning.
| Range | TeSys |
|---|---|
| Product name | TeSys Tera |
| Device short name | LTMT |
| Product or Component Type | Motor controller |
| Device Application | Equipment monitoring and control |
| [Us] rated supply voltage | 100...240 V AC/DC 50/60 Hz |
| Current Consumption | 8...62.8 mA |
| Supply voltage limits | 85…265 V AC/DC |
| Communication Port Protocol | Modbus RTU |
| Bus type | Modbus 2-wire RS 485 1...247 1.2...19.2 kbit/s, terminal block 2 shielded twisted pairs |
| [Ui] rated insulation voltage | 250 V AC IEC 60185 |
|---|---|
| Short-circuit withstand | 100 kA |
| Pollution degree | 3 |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Associated fuse rating | 0.5 A gG control circuit |
| Protection Type | Overload protection, Stalled rotor, Locked rotor, Short-circuit, Undercurrent, Overcurrent, Current unbalance, Phase reversal, Phase loss, Earth fault protection internal, Earth fault protection external, Excessive starting time, Max number of start, Undervoltage, Overvoltage, Voltage unbalance, Underfrequency, Overfrequency, Reacceleration, Temperature protection, Analog input protection, Communication failure, Fail to stop, Under power, Over power, Power factor variation, Anti-backspin timer, Block output, DI interlock protection |
| Network and machine diagnosis type | Motor statistics, Motor status, Event recording, Running hours counter/operating time, Number of starts and stops, Running hours /stop hours counter, Start curve showing motor start record, Pre-alarms, Trip history information, Alarm counters |
| Logic input number | 4 |
| Input current | 3 mA 100...240 V |
| Current state 0 guaranteed | Digital input 0...12 V 5 mA 10 ms |
| Current state 1 guaranteed | Digital input 85...265 V 5 mA 10 ms |
| maximum output switching frequency | 2 Hz |
| Load current | 10 A 250 V AC/DC, 5 A 30 V DC |
| Permissible power | 480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output) |
| maximum operating rate | 1800 cyc/h |
| Contacts type and composition | 1 NO + 1 NC fault signal, 3 NO |
| Metering type | Thermal memory, Line, phase and average current, Line to line and average voltage, Motor temperature input, Ground fault current Ig, Active and reactive power, Active and reactive energy, Frequency, Total voltage harmonic distortion THD (V), Total voltage harmonic distortion THD (U), Total current harmonic distortion THD (I), Phase sequence |
| Measurement accuracy | 1 % current 0.3...3 A), 1 % current 2.5...25 A), 3 % current 7...70 A), 3 % current 10...100 A), 1 % voltage 110...690 V), +/- 2.5 % earth fault current external measurement, +/- 3...5 % earth fault current internal measurement current > 0.03 A in the 0.3...3 A range), +/- 3...5 % earth fault current internal measurement current > 0.25 A in the 2.5...25 A range), +/- 3...5 % earth fault current internal measurement current > 0.7 A in the 7...70 A range), +/- 3...5 % earth fault current internal measurement current > 1 A in the 10...100 A range), +/- 2 % Temperature, +/- 2 % THD measurement, +/- 3...6 % power factor, +/- 2...5 % active and reactive energy, +/- 30 min/year internal clock |
| Connection pitch | 0.3 in (7.5 mm) for supply voltage, 0.2 in (5.0 mm) for others |
| Connections - terminals | Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible with ferrule with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible with ferrule with cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end, Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)solid with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) 24 AWG...14 AWG)solid with cable end |
| Tightening torque | Control circuit 4.4 lbf.in (0.5 N.m) flat 0.1 in (3 mm) |
| Width | 4.4 in (112 mm) |
| Height | 1.8 in (45 mm) |
| Depth | 3.5 in (90 mm) |
| Web services | Web server |
| Standards | EN/IEC 60947-4-1, UL/CSA 60947-4-1 |
|---|---|
| Product Certifications | UL, IEC, cUL |
| Fire resistance | 1202 °F (650 °C) IEC 60947-1, 1760 °F (960 °C) UL 94 |
| Ambient air temperature for operation | -4…158 °F (-20…70 °C) |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) without derating |
| Mechanical robustness | Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-27, Vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6, Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 |
| IP Degree of Protection | IP20 |
| Part number | LTMTMFM |
|---|---|
| Type designation | LTMT |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482184756 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IN |
|---|---|
| Shipping weight | 0.29 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
