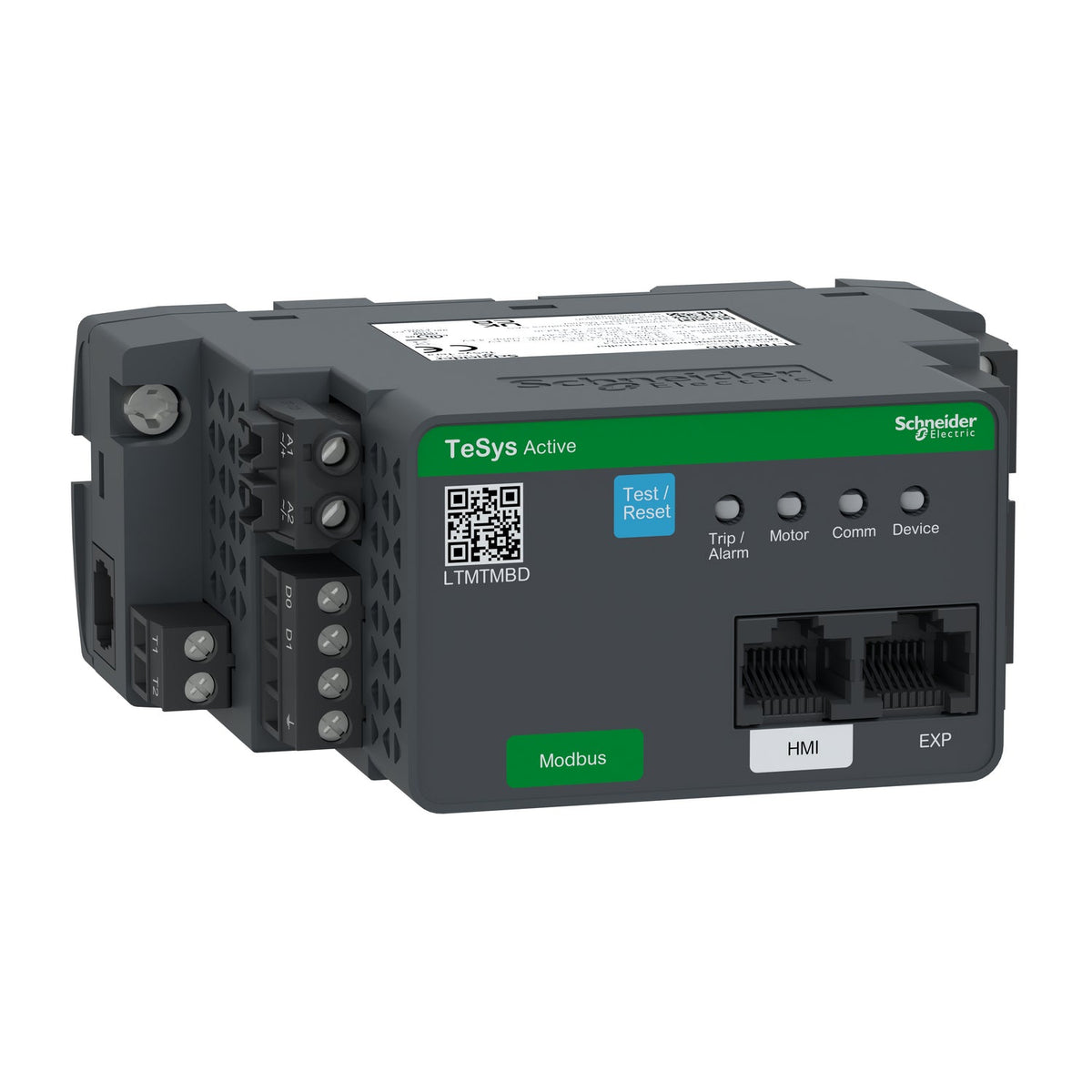

The Schneider Electric LTMTMBD is a TeSys Tera main motor management controller communicating over Modbus RTU, powered at 24 V DC, providing full protection, control and monitoring of single-phase and three-phase AC induction motors when paired with a TeSys Tera sensor module and a contactor.
The MBD is the Modbus RTU variant on a 24 V DC supply, suited to panels already standardised on RS 485 Modbus networks; choose the EBD/EFM variants for Ethernet TCP/IP or the PBD/PFM variants for Profibus DP.
| Range | TeSys |
|---|---|
| Product name | TeSys Tera |
| Device short name | LTMT |
| Product or Component Type | Motor controller |
| Device Application | Equipment monitoring and control |
| [Us] rated supply voltage | 24 V DC |
| Current Consumption | 56...127 mA |
| Supply voltage limits | 18…30 V DC |
| Communication Port Protocol | Modbus RTU |
| Bus type | Modbus 2-wire RS 485 1...247 1.2...19.2 kbit/s, terminal block 2 shielded twisted pairs |
| [Ui] rated insulation voltage | 24 V DC IEC 60185 |
|---|---|
| Short-circuit withstand | 100 kA |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Associated fuse rating | 0.5 A gG control circuit |
| Protection Type | Overload protection, Stalled rotor, Locked rotor, Short-circuit, Undercurrent, Overcurrent, Current unbalance, Phase reversal, Phase loss, Earth fault protection internal, Earth fault protection external, Excessive starting time, Max number of start, Undervoltage, Overvoltage, Voltage unbalance, Underfrequency, Overfrequency, Reacceleration, Temperature protection, Analog input protection, Communication failure, Fail to stop, Under power, Over power, Power factor variation, Anti-backspin timer, Block output, DI interlock protection |
| Network and machine diagnosis type | Motor statistics, Motor status, Event recording, Running hours counter/operating time, Number of starts and stops, Running hours /stop hours counter, Start curve showing motor start record, Pre-alarms, Trip history information, Alarm counters |
| Logic input number | 4 |
| Input current | 7 mA 24 V |
| Current state 0 guaranteed | Digital input 0...12 V 5 mA 10 ms |
| Current state 1 guaranteed | Digital input 18...30 V 5 mA 10 ms |
| maximum output switching frequency | 2 Hz |
| Load current | 10 A 250 V AC/DC, 5 A 30 V DC |
| Permissible power | 480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output) |
| maximum operating rate | 1800 cyc/h |
| Contacts type and composition | 1 NO + 1 NC fault signal, 3 NO |
| Metering type | Thermal memory, Line, phase and average current, Line to line and average voltage, Motor temperature input, Ground fault current Ig, Active and reactive power, Active and reactive energy, Frequency, Total voltage harmonic distortion THD (V), Total voltage harmonic distortion THD (U), Total current harmonic distortion THD (I), Phase sequence |
| Measurement accuracy | 1 % current 0.3...3 A), 1 % current 2.5...25 A), 3 % current 7...70 A), 3 % current 10...100 A), 1 % voltage 110...690 V), +/- 2.5 % earth fault current external measurement, +/- 3...5 % earth fault current internal measurement current > 0.03 A in the 0.3...3 A range), +/- 3...5 % earth fault current internal measurement current > 0.25 A in the 2.5...25 A range), +/- 3...5 % earth fault current internal measurement current > 0.7 A in the 7...70 A range), +/- 3...5 % earth fault current internal measurement current > 1 A in the 10...100 A range), +/- 2 % Temperature, +/- 2 % THD measurement, +/- 3...6 % power factor, +/- 2...5 % active and reactive energy, +/- 30 min/year internal clock |
| Connection pitch | 0.3 in (7.5 mm) for supply voltage, 0.2 in (5.0 mm) for others |
| Connections - terminals | Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible with ferrule with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible with ferrule with cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end, Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)solid with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) 24 AWG...14 AWG)solid with cable end |
| Width | 4.4 in (112 mm) |
| Height | 1.8 in (45 mm) |
| Depth | 3.5 in (90 mm) |
| Web services | Web server |
| Standards | EN/IEC 60947-4-1, UL/CSA 60947-4-1 |
|---|---|
| Product Certifications | UL, IEC, cUL |
| Fire resistance | 1202 °F (650 °C) IEC 60947-1, 1760 °F (960 °C) UL 94 |
| Ambient air temperature for operation | -4…158 °F (-20…70 °C) |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) without derating |
| Mechanical robustness | Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-27 |
| IP Degree of Protection | IP20 |
| Part number | LTMTMBD |
|---|---|
| Type designation | LTMT |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482184749 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IN |
|---|---|
| Shipping weight | 0.28 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
