Part number
LTMTIN42BD
Model no
LTMT
$204.55 On request Dispatch — · From TürkiyeGet a Quote

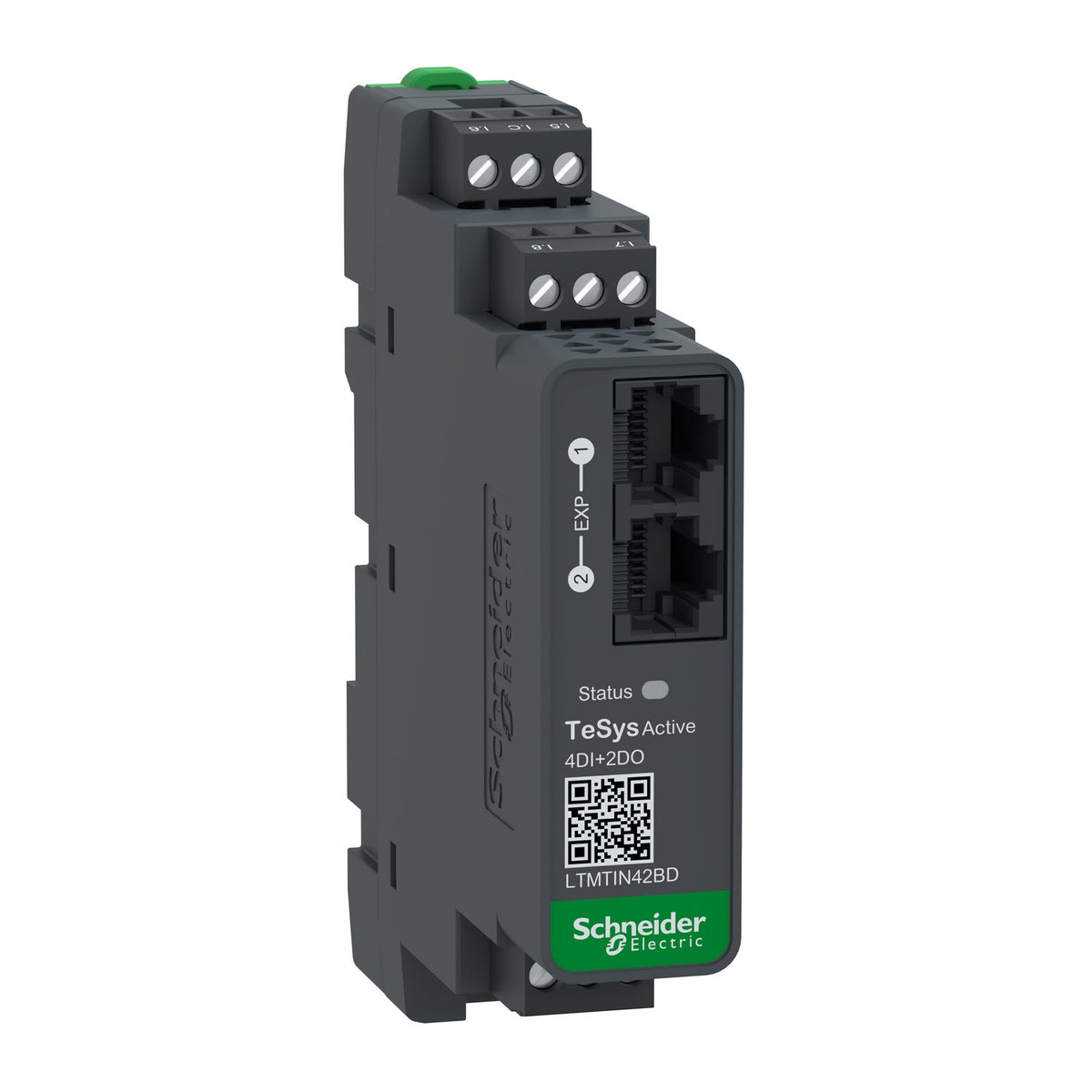

Schneider Electric LTMTIN42BD TeSys Tera Digital 4DI 2DO Expansion Module Motor Starter Module

TeSys Tera digital expansion module, 4 isolated inputs, 2 NO outputs, 24 v dc logic

Range
TeSys
Product name
TeSys Tera
Device short name
LTMT
Product or Component Type
Extension module
Device Application
Equipment monitoring and control
Range compatibility
TeSys TeSys Tera motor controller
EAN
3606482185012
Description

About the LTMT

The Schneider Electric LTMTIN42BD is a TeSys Tera digital expansion module adding 4 isolated digital inputs and 2 NO-contact digital outputs to a TeSys Tera main controller, powered 24 v dc (via the controller) with 24 v dc input logic.

Certifications & Standards

  • IEC
  • UL
  • cUL
  • EN/IEC 60947-4-1
  • UL/CSA 60947-4-1

Selection Notes

The BD variant uses 24 V DC isolated inputs; choose the FM sibling instead when the panel's digital I/O field devices run on 100-240 V AC/DC rather than 24 V DC.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 7

Range TeSys
Product name TeSys Tera
Device short name LTMT
Product or Component Type Extension module
Device Application Equipment monitoring and control
Range compatibility TeSys TeSys Tera motor controller
Supply Via the controller

Complementary 23

[Ui] rated insulation voltage 690 V EN/IEC 60947-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 0.8 kV current or voltage measurement circuit EN/IEC 60947-4-1, 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Protection Type Earth fault protection external, Temperature protection, Analog input protection, DI interlock protection
Current state 0 guaranteed Digital input 0...12 V 5 mA 10 ms
Current state 1 guaranteed Digital input 18...30 V 5 mA 10 ms
maximum output switching frequency 2 Hz
Load current 10 A 250 V AC/DC, 5 A 30 V DC
Short-circuit withstand 100 kA conforming to EN/IEC 60947-4-1
maximum operating rate 1800 cyc/h
Contacts type and composition Without
Mounting Mode Flush-mounted
Connection pitch 0.2 in (5.0 mm)
Connections - terminals Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)flexible stranded without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...16 AWG)flexible stranded without cable end, Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)solid without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.0 mm²) 24 AWG...18 AWG)solid without cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end with insulation, Control circuit connector 2 0.0008…0.002 in² (0.5…1.5 mm²) 20 AWG...16 AWG)flexible stranded with cable end with insulation, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible stranded with cable end without insulation, Control circuit connector 2 0.0003…0.002 in² (0.2…1.0 mm²) 24 AWG...18 AWG)flexible stranded with cable end without insulation
Input type Digital input x4
Output type 2 xdigital output
Permissible power 480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Electromagnetic compatibility Electrostatic discharge, level 3, 8 kV air, 4 kV contact, Fast transient bursts, level 3, 2 kV, Immunity to electromagnetic interference, level 3, 10 V/m, Immunity to shock waves, level 3, 2 kV
Depth 4.8 in (120.7 mm)
Height 2.4 in (61 mm)
Width 1.8 in (45 mm)
Tightening torque Control circuit 4.4 lbf.in (0.5 N.m) flat 0.1 in (3 mm)

Environment 9

Product Certifications IEC, UL, cUL
IP Degree of Protection IP20
Standards EN/IEC 60947-4-1, UL/CSA 60947-4-1
Fire resistance 1202 °F (650 °C) EN/IEC 60695-2-12, 1760 °F (960 °C) UL 94
Protective treatment 12 x 24 hour cycles EN/IEC 60068-2-30
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Operating altitude <= 6561.68 ft (2000 m) without derating
Mechanical robustness Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27, Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6, Vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
Ambient air temperature for operation -4…158 °F (-20…70 °C)
Show all 53 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LTMTIN42BD
Type designation LTMT
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606482185012

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IN
Shipping weight 0.188 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LTMTIN42BD

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • EN/IEC 60947-4-1
  • UL/CSA 60947-4-1
Quick answers

Questions about the LTMT

What is the HS code of LTMT for customs?

The tariff (HS) code on file for LTMT is 853650.

What is the EAN of LTMT?

The EAN (GTIN) of LTMT is 3606482185012.

Where does LTMT ship from, and how fast?

LTMT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
