Part number
LTMTAN21
Model no
LTMT
$151.42 On request Dispatch — · From TürkiyeGet a Quote

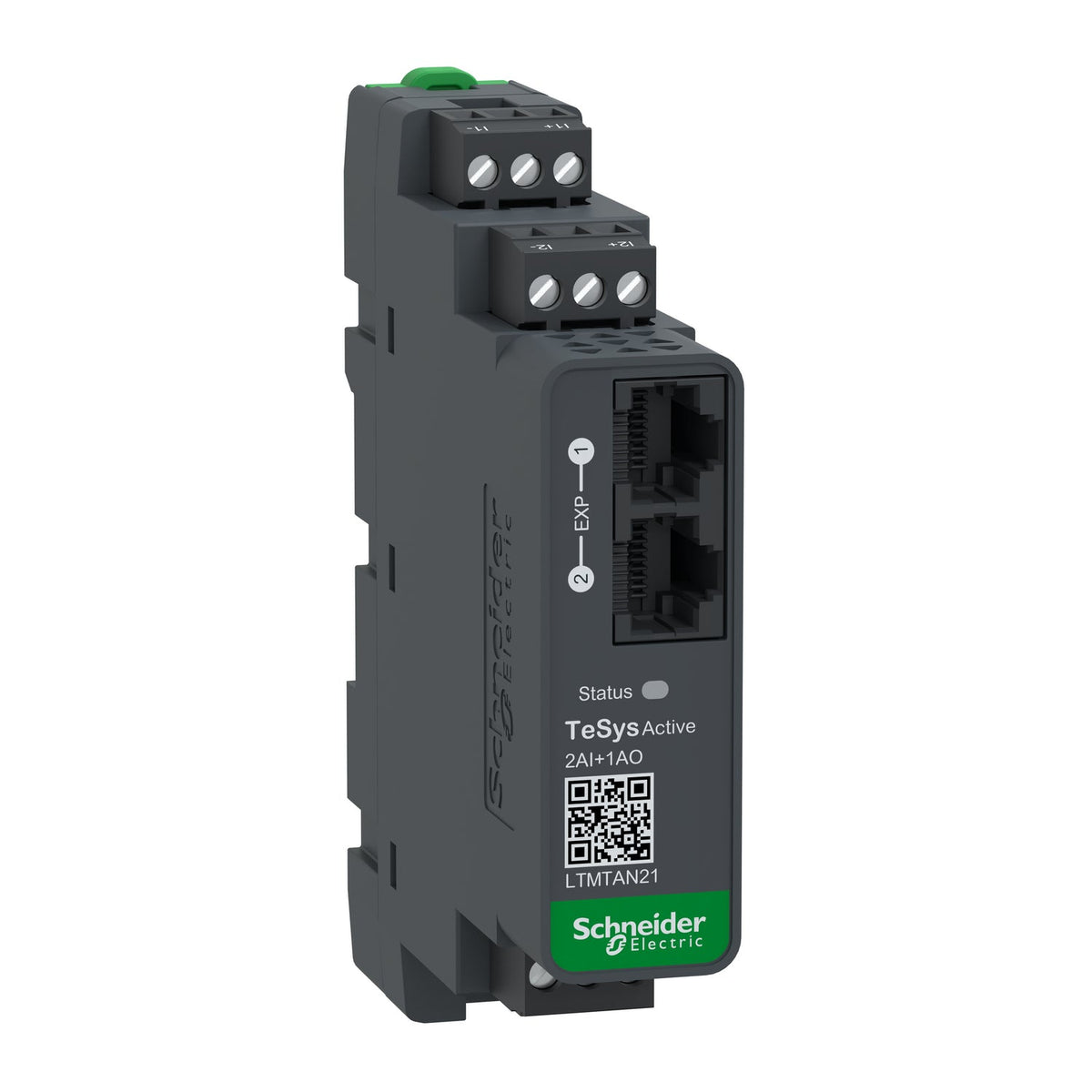

Schneider Electric LTMTAN21 TeSys Tera Analog 2AI 1AO Expansion Module Motor Starter Module

TeSys Tera analog expansion module, 2 analog inputs, 1 analog output, 4-20 mA

Communication
4-20 mA analog
EAN
3606482185067
Description

About the LTMT

The Schneider Electric LTMTAN21 is a TeSys Tera analog expansion module adding 2 analog inputs and 1 analog output (4-20 mA) to a TeSys Tera main controller, including voltage measurement between phases up to 690 V nominal.

Certifications & Standards

  • IEC
  • UL
  • cUL
  • EN/IEC 60947-4-1
  • UL/CSA 60947-4-1

Selection Notes

Add this module when the application needs extra analog process signals (such as external sensor feedback) beyond what the TeSys Tera main controller provides on its own; it is powered from the main unit and adds no separate supply requirement.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 6

Range TeSys
Product name TeSys Tera
Device short name LTMT
Product or Component Type Extension module
Device Application Equipment monitoring and control
Range compatibility TeSys TeSys Tera motor controller

Complementary 18

[Ui] rated insulation voltage 690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Protection Type Overload protection, Stalled rotor, Locked rotor, Short-circuit, Undercurrent, Overcurrent, Current unbalance, Phase reversal, Phase loss, Earth fault protection internal, Earth fault protection external, Excessive starting time, Max number of start, Undervoltage, Overvoltage, Voltage unbalance, Underfrequency, Overfrequency, Reacceleration, Temperature protection, Analog input protection, Communication failure, Fail to stop, Under power, Over power, Power factor variation, Anti-backspin timer, Block output, DI interlock protection
maximum output switching frequency 2 Hz
maximum operating rate 1800 cyc/h
Contacts type and composition Without
Mounting Mode Flush-mounted
Connection pitch 0.2 in (5.0 mm)
Connections - terminals Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible with cable end, Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 1 0.0004…0.004 in² (0.25…2.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 1 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)solid without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) 24 AWG...14 AWG)flexible with cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 2 0.0008…0.002 in² (0.5…1.5 mm²) 24 AWG...14 AWG)flexible without cable end, Control circuit connector 2 0.0003…0.002 in² (0.2…1 mm²) 24 AWG...14 AWG)solid without cable end
Input type Analog x2
Output type 1 xanalog
Electromagnetic compatibility Electrostatic discharge, level 3, 8 kV air, 4 kV contact, Fast transient bursts, level 3, 2 kV, Immunity to electromagnetic interference, level 3, 10 V/m, Immunity to shock waves, level 3, 2 kV
Depth 3.5 in (90 mm)
Height 4.4 in (112 mm)
Width 0.9 in (22.5 mm)
Tightening torque Control circuit: 4.4…5.3 lbf.in (0.5…0.6 N.m) flat screwdriver 0.1 in (3 mm)

Environment 9

Product Certifications IEC, UL, cUL
IP Degree of Protection IP20
Standards EN/IEC 60947-4-1, UL/CSA 60947-4-1
Fire resistance 1202 °F (650 °C) EN/IEC 60695-2-12, 1760 °F (960 °C) UL 94
Protective treatment 12 x 24 hour cycles EN/IEC 60068-2-30
Ambient Air Temperature for Storage -40…176 °F (-40…80 °C)
Operating altitude <= 6561.68 ft (2000 m) without derating
Mechanical robustness Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27, Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6, Vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6
Ambient air temperature for operation -4…158 °F (-20…70 °C)
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LTMTAN21
Type designation LTMT
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606482185067

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IN
Shipping weight 0.132 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LTMTAN21

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • EN/IEC 60947-4-1
  • UL/CSA 60947-4-1
