Schneider Electric LT6CT2001 TeSys T Current Transformer 200/1 Class 5P Automation Component

% $-116.16

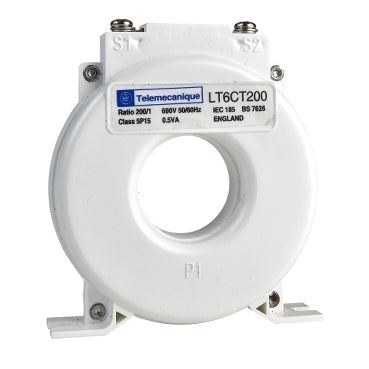

Schneider Electric LT6CT2001 TeSys T current transformer 200/1 class 5P
Schneider Electric LT6CT2001 TeSys T current transformer 200/1 class 5P

Schneider Electric LT6CT2001 TeSys T Current Transformer 200/1 Class 5P Automation Component

Brand: Schneider Electric
Reference No: LT6CT2001
Tariff Code (HS): 85364900
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$116.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LT6CT2001 is a 200/1 current transformer for the TeSys T (LT6) motor management relay, giving class 5P accuracy at a precision limit factor of 15 so the relay reads motor current without passing full load current through its own terminals.

Technical Specifications

Reference LT6CT2001
Brand Schneider Electric
Range TeSys
Device Short Name LT6CT
Product Type Current transformer
Range Compatibility TeSys T motor controller
Current Transformer Ratio 200/1
Accuracy Class Class 5P
Precision Limit Factor 15
[Ui] Rated Insulation Voltage 690 V
Diameter 35 mm
Cable Cross Section 30 mm²
Width x Height x Depth 95 x 107 x 25 mm
Net Weight 0.55 kg
Maximum Ambient Air Temperature for Operation 50 °C

Certifications & Standards

  • IEC 60185
  • BS 7626

Selection Notes

Match this 200/1 ratio to the motor's full-load current so the TeSys LT6 relay's current input stays within its working range; a lower-ratio transformer on a higher-current motor saturates the core and gives an inaccurate reading, while an oversized ratio loses resolution at low load. The class 5P / PLF 15 accuracy is adequate for protection metering on the LT6 relay but is not a revenue-metering transformer.

Technical Details

Short Description
TeSys T current transformer, 200/1 ratio, class 5P, for TeSys LT6 motor management relay.
Mounting Type
Through-cable, 35 mm diameter
Delivery Date (Days)
30 days
Model Number
LT6CT
Tariff Code
85364900
