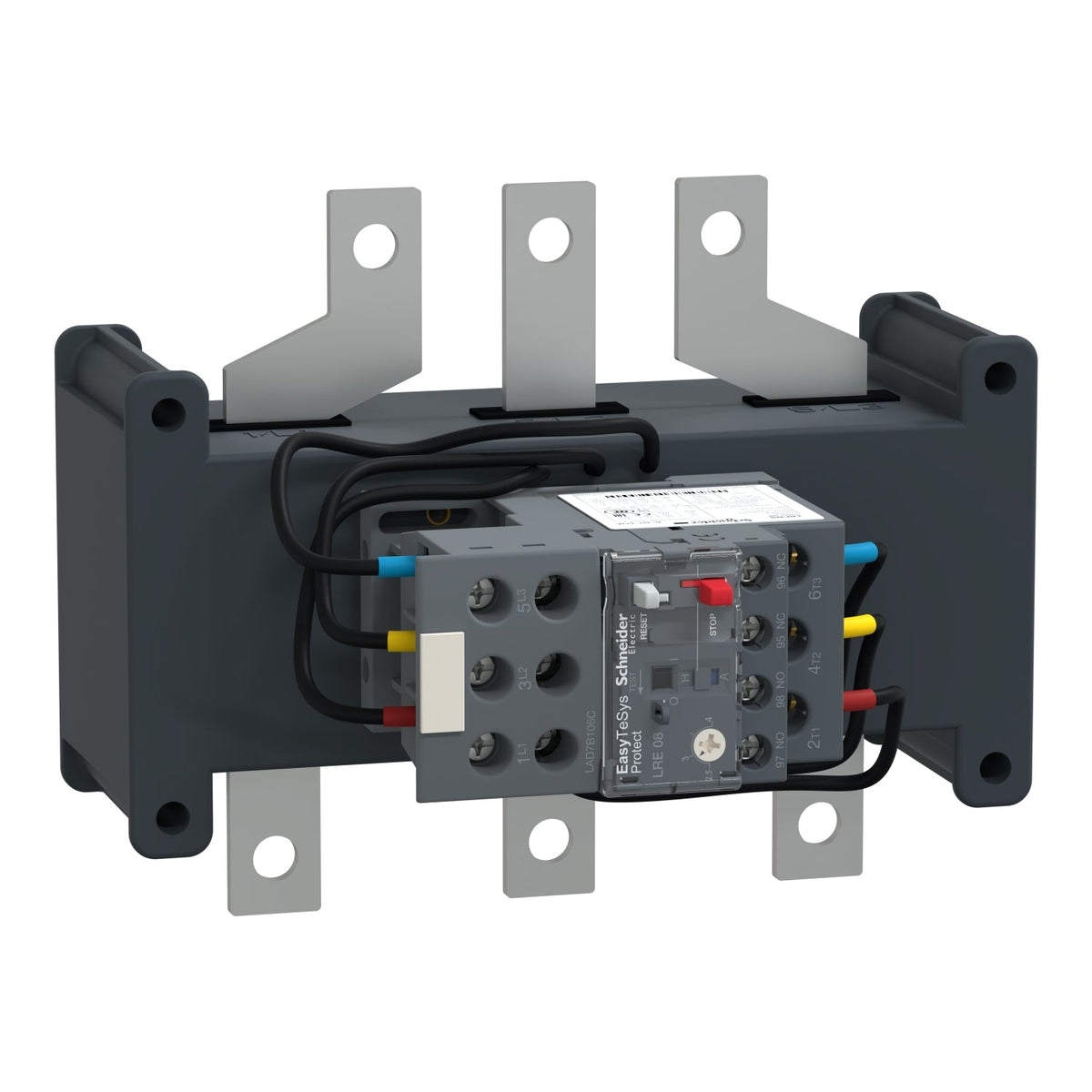

The Schneider Electric LRE488 is an Easy TeSys Protect differential thermal overload relay with a 321-513 A class 10A thermal setting range, direct-mounted on LC1E400...630 contactors to protect 200-250 kW motors at 400 V against overload and phase loss.
This is the largest setting range covered here, matched to LC1E400...630 contactors for 200-250 kW motors; it connects to the power circuit by lugs or 5 x 30 mm busbars rather than the screw clamp terminals used on the smaller LRE322/LRE35.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Protect |
| Product or component type | Differential thermal overload relay |
| Device short name | LRE |
| Relay application | Motor protection |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Product compatibility | LC1E400...630 |
|---|---|
| Network type | AC |
| Network frequency | 50...60 Hz |
| Mounting support | Under contactor, Plate |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Signalling function | Relay trip indicator |
| Thermal protection adjustment range | 321…513 A |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Mechanical robustness | Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7, Vibrations: 3 GN conforming to IEC 60068-2-6 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| [Ue] rated operational voltage | <= 690 V AC |
| Associated fuse rating | 800 A gG for power circuit, 500 A aM for power circuit, 5 A gG for signalling circuit |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Local signalling | Trip indicator |
| Control type | Push-button red stop:, Push-button green reset: |
| Temperature compensation | -20…60 °C |
| Connection pitch | 55 mm |
| Connections - terminals | Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end, Power circuit: lugs, Power circuit: bars - busbar cross section: 5 x 30 mm |
| Recommended tightening torque | Power circuit: 35 N.m - on bars M10, Power circuit: 35 N.m - on lugs M10, Signalling circuit: 1.7 N.m - on screw clamp terminals |
| Height | 140 mm |
| Width | 242 mm |
| Depth | 148 mm |
| Net weight | 3.2 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1, GB/T 14048.1, GB/T 14048.5, GB/T 14048.4, EN/IEC 60335-1:Clause 30.2, EN/IEC 60335-2-40:Annex JJ |
|---|---|
| Product certifications | CB Scheme, CCC, CE, EAC |
| Protective treatment | TH conforming to IEC 60068 |
| IP degree of protection | IP00 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1, -20…70 °C with derating |
| Ambient air temperature for storage | -60…80 °C |
| Fire resistance | 850 °C conforming to IEC 60068-2-1 |
| Dielectric strength | 6 kV at 50 Hz conforming to IEC 60255-5 |
| Electromagnetic compatibility | Surge withstand: 6 kV conforming to IEC 60801-5 |
| Part number | LRE488 |
|---|---|
| Type designation | LRE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.0 cm |
| Package 1 Width | 17.5 cm |
| Package 1 Length | 27.2 cm |
| Package 1 Weight | 3.7 kg |
| Shipping weight | 3.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LRE is 513 A.
The rated operational voltage of LRE is 690 V AC.
The tariff (HS) code on file for LRE is 853649.
LRE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
