Part number
LRE487
Model no
LRE
$302.84 On request Dispatch — · From TürkiyeGet a Quote
Easy TeSys Protect

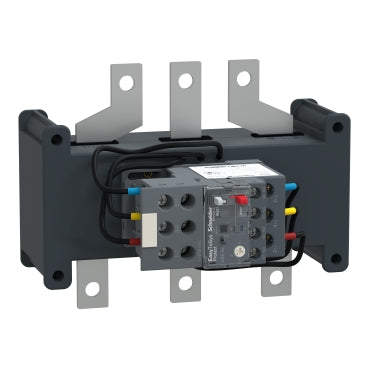

Schneider Electric LRE487 Easy TeSys Protect Thermal Overload Relay 259-414 A Class 10A Relay

Easy TeSys Protect thermal overload relay, 259-414 A, class 10A, for EasyPact TVS.

Rated current
414 A
Rated operational voltage
690 V AC
Poles
3P
Display
Trip flag indicator
Description

About the LRE

The Schneider Electric LRE487 is an Easy TeSys Protect differential thermal overload relay for EasyPact TVS contactors (LC1E300...630), adjustable over 259-414 A with a class 10A trip curve, protecting 3-phase motors from 160 to 200 kW at 400 V with phase-unbalance detection and a 1NO+1NC trip contact.

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • IEC 60947-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • GB/T 14048.1

Selection Notes

Set the 259-414 A dial to the motor's actual full-load current for the from 160 to 200 kW range at 400 V; the recommended 500 A gG / 400 A aM short-circuit backup must be sized before installation since this relay, like the GV2 L and GV3 L circuit-breaker combinations it is designed alongside, has no internal short-circuit withstand rating of its own. Differential (phase-unbalance) detection trips the relay on a single-phasing fault ahead of the class 10A thermal curve, and the 1NO+1NC trip contact wires directly into the EasyPact TVS contactor's control circuit for automatic disconnection.

Specification

Full specification

58 values · Last verified 30 Oct 2026

Main 6

Range Easy TeSys
Range of product Easy TeSys Protect
Product or component type Differential thermal overload relay
Device short name LRE
Relay application Motor protection
Phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1

Complementary 25

Product compatibility LC1E300...630
Network type AC
Network frequency 50...60 Hz
Mounting support Under contactor, Plate
Thermal overload class Class 10A conforming to IEC 60947-4-1
Signalling function Relay trip indicator
Thermal protection adjustment range 259…414 A
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Mechanical robustness Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7, Vibrations: 3 GN conforming to IEC 60068-2-6
Auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air thermal current 5 A for signalling circuit
[Ue] rated operational voltage <= 690 V AC
Associated fuse rating 400 A aM for power circuit, 500 A gG for power circuit, 5 A gG for signalling circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV
Local signalling Trip indicator
Control type Push-button red stop:, Push-button green reset:
Temperature compensation -20…60 °C
Connection pitch 48 mm
Connections - terminals Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end, Power circuit: lugs, Power circuit: bars - busbar cross section: 4 x 25 mm
Recommended tightening torque Power circuit: 35 N.m - on bars M10, Power circuit: 35 N.m - on lugs M10, Signalling circuit: 1.7 N.m - on screw clamp terminals
Height 134 mm
Width 180 mm
Depth 134 mm
Net weight 2.4 kg

Environment 9

Standards EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.5, GB/T 14048.4, EN/IEC 60335-1:Clause 30.2, EN/IEC 60335-2-40:Annex JJ
Product certifications CB Scheme, CCC, CE, EAC
Protective treatment TH conforming to IEC 60068
IP degree of protection IP00 conforming to IEC 60529
Ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1, -20…70 °C with derating
Ambient air temperature for storage -60…80 °C
Fire resistance 850 °C conforming to IEC 60068-2-1
Dielectric strength 6 kV at 50 Hz conforming to IEC 60255-5
Electromagnetic compatibility Surge withstand: 6 kV conforming to IEC 60801-5
Show all 58 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LRE487
Type designation LRE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 17.5 cm
Package 1 Length 27.2 cm
Package 1 Weight 2.9 kg
Shipping weight 2.4 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
