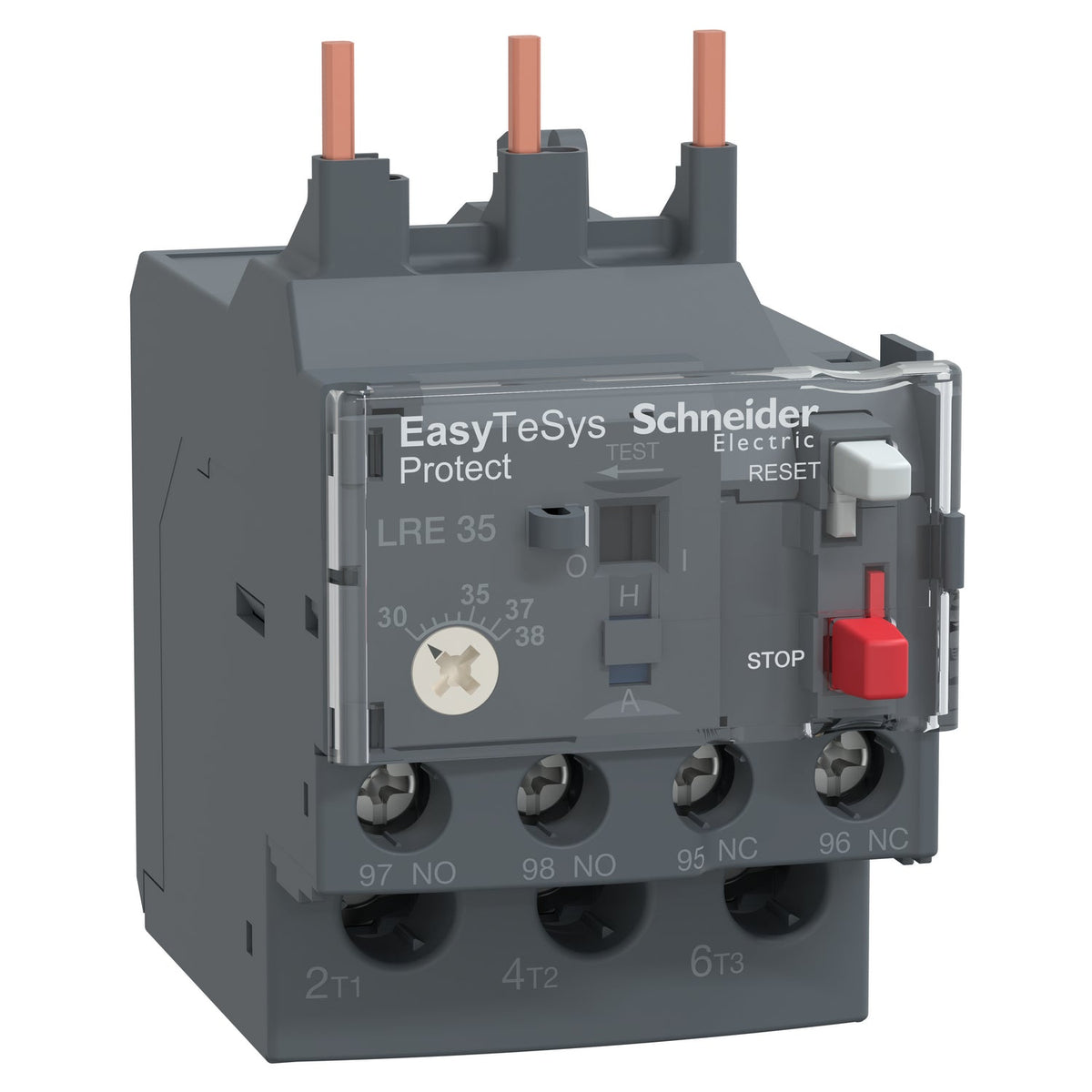

The Schneider Electric LRE35 is an Easy TeSys Protect differential thermal overload relay with a 30-38 A class 10A thermal setting range, direct-mounted on LC1E38 contactors to protect 18.5 kW motors at 400 V against overload and phase loss.
The 30-38 A setting is sized to the LC1E38 contactor for 18.5 kW motors at 400 V — use the 17-25 A LRE322 instead for smaller contactor frames and lower motor power.
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Protect |
| Product or component type | Differential thermal overload relay |
| Device short name | LRE |
| Relay application | Motor protection |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Colour | Grey (RAL 7011) |
| Product compatibility | LC1E38 |
|---|---|
| Network type | AC |
| Network frequency | 50...60 Hz |
| Mounting support | Under contactor, Plate, with specific accessories, Rail, with specific accessories |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Signalling function | Relay trip indicator |
| Thermal protection adjustment range | 30…38 A |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Mechanical robustness | Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7, Vibrations: 3 GN conforming to IEC 60068-2-6 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| [Ue] rated operational voltage | <= 690 V AC |
| Associated fuse rating | 40 A aM for power circuit, 80 A gG for power circuit, 5 A gG for signalling circuit |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Local signalling | Trip indicator |
| Control type | Push-button red stop:, Push-button green reset: |
| Temperature compensation | -20…60 °C |
| Connections - terminals | Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end, Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: solid without cable end |
| Recommended tightening torque | Power circuit: 2.5 N.m - on screw clamp terminals, Signalling circuit: 1.7 N.m - on screw clamp terminals |
| Height | 44.5 mm |
| Width | 45 mm |
| Depth | 70 mm |
| Net weight | 0.13 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.1, GB/T 14048.5, GB/T 14048.4, EN/IEC 60335-1:Clause 30.2, EN/IEC 60335-2-40:Annex JJ |
|---|---|
| Product certifications | CB Scheme, CCC, CE, EAC |
| Protective treatment | TH conforming to IEC 60068 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1, -20…70 °C with derating |
| Ambient air temperature for storage | -60…80 °C |
| Fire resistance | 850 °C conforming to IEC 60068-2-1 |
| Dielectric strength | 6 kV at 50 Hz conforming to IEC 60255-5 |
| Electromagnetic compatibility | Surge withstand: 6 kV conforming to IEC 60801-5 |
| Part number | LRE35 |
|---|---|
| Type designation | LRE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 151.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.363 kg |
| Shipping weight | 0.13 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of LRE is 38 A.
The rated operational voltage of LRE is 690 V AC.
The tariff (HS) code on file for LRE is 853649.
LRE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
