Part number
LRE02
Model no
LRE
$19.99 On request Dispatch — · From TürkiyeGet a Quote
Easy TeSys Protect

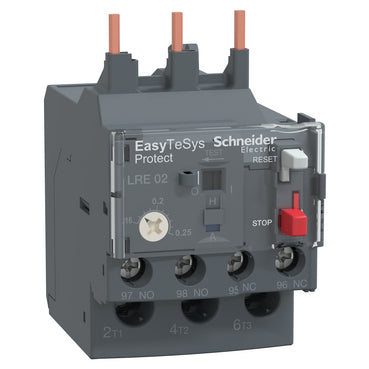

Schneider Electric LRE02 Easy TeSys Protect Thermal Overload Relay 0.16-0.25 A Class 10A Relay

Easy TeSys Protect thermal overload relay, 0.16-0.25 A, class 10A, for EasyPact TVS.

Rated current
0.25 A
Rated operational voltage
690 V AC
Display
Trip flag indicator
Description

About the LRE

The Schneider Electric LRE02 is an Easy TeSys Protect differential thermal overload relay for EasyPact TVS contactors (LC1E06...38), adjustable over 0.16-0.25 A with a class 10A trip curve, protecting 3-phase motors up to 0.06 kW at 400 V with phase-unbalance detection and a 1NO+1NC trip contact.

Certifications & Standards

  • CB Scheme
  • CCC
  • CE
  • EAC
  • IEC 60947-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • GB/T 14048.1

Selection Notes

Set the 0.16-0.25 A dial to the motor's actual full-load current for the up to 0.06 kW range at 400 V; the recommended 2 A gG / 0.5 A aM short-circuit backup must be sized before installation since this relay, like the GV2 L and GV3 L circuit-breaker combinations it is designed alongside, has no internal short-circuit withstand rating of its own. Differential (phase-unbalance) detection trips the relay on a single-phasing fault ahead of the class 10A thermal curve, and the 1NO+1NC trip contact wires directly into the EasyPact TVS contactor's control circuit for automatic disconnection.

Specification

Full specification

64 values · Last verified 30 Oct 2026

Main 7

Range Easy TeSys
Range of product Easy TeSys Protect
Product or component type Differential thermal overload relay
Device short name LRE
Relay application Motor protection
Phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
Colour Grey (RAL 7011)

Complementary 24

Product compatibility LC1E06...38
Network type AC
Network frequency 50...60 Hz
Mounting support Under contactor, Plate, with specific accessories, Rail, with specific accessories
Thermal overload class Class 10A conforming to IEC 60947-4-1
Signalling function Relay trip indicator
Thermal protection adjustment range 0.16…0.25 A
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Mechanical robustness Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7, Vibrations: 3 GN conforming to IEC 60068-2-6
Auxiliary contact composition 1 NO + 1 NC
[Ith] conventional free air thermal current 5 A for signalling circuit
[Ue] rated operational voltage <= 690 V AC
Associated fuse rating 2 A gG for power circuit, 0.5 A aM for power circuit, 5 A gG for signalling circuit
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage 6 kV
Local signalling Trip indicator
Control type Push-button red stop:, Push-button green reset:
Temperature compensation -20…60 °C
Connections - terminals Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end, Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end, Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: solid without cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end, Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
Recommended tightening torque Power circuit: 1.7 N.m - on screw clamp terminals, Signalling circuit: 1.7 N.m - on screw clamp terminals
Height 44.5 mm
Width 45 mm
Depth 70 mm
Net weight 0.13 kg

Environment 9

Standards EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1, GB/T 14048.1, GB/T 14048.4, GB/T 14048.5, EN/IEC 60335-1:Clause 30.2, EN/IEC 60335-2-40:Annex JJ
Product certifications CB Scheme, CCC, CE, EAC
Protective treatment TH conforming to IEC 60068
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -20…60 °C without derating conforming to IEC 60947-4-1, -20…70 °C with derating
Ambient air temperature for storage -60…80 °C
Fire resistance 850 °C conforming to IEC 60068-2-1
Dielectric strength 6 kV at 50 Hz conforming to IEC 60255-5
Electromagnetic compatibility Surge withstand: 6 kV conforming to IEC 60801-5
Show all 64 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LRE02
Type designation LRE
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.400 cm
Package 1 Width 8.100 cm
Package 1 Length 8.300 cm
Package 1 Weight 144.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 33
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.115 kg
Shipping weight 0.13 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
